Slip Indicator Light Circuit: Wiring Diagram

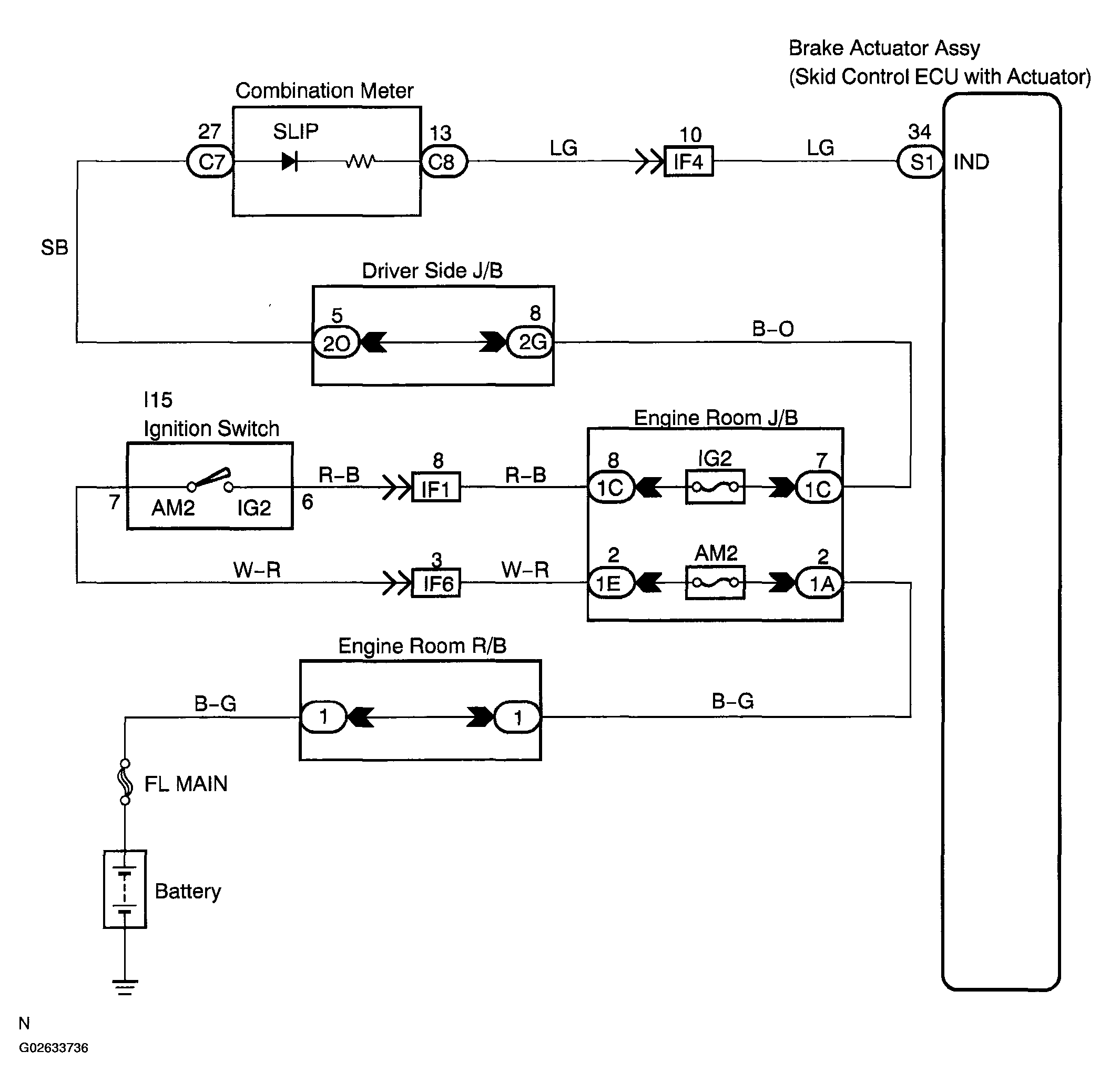

Fig 1: Slip Indicator Light Circuit Wiring Diagram

G02633736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
