Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics): Location

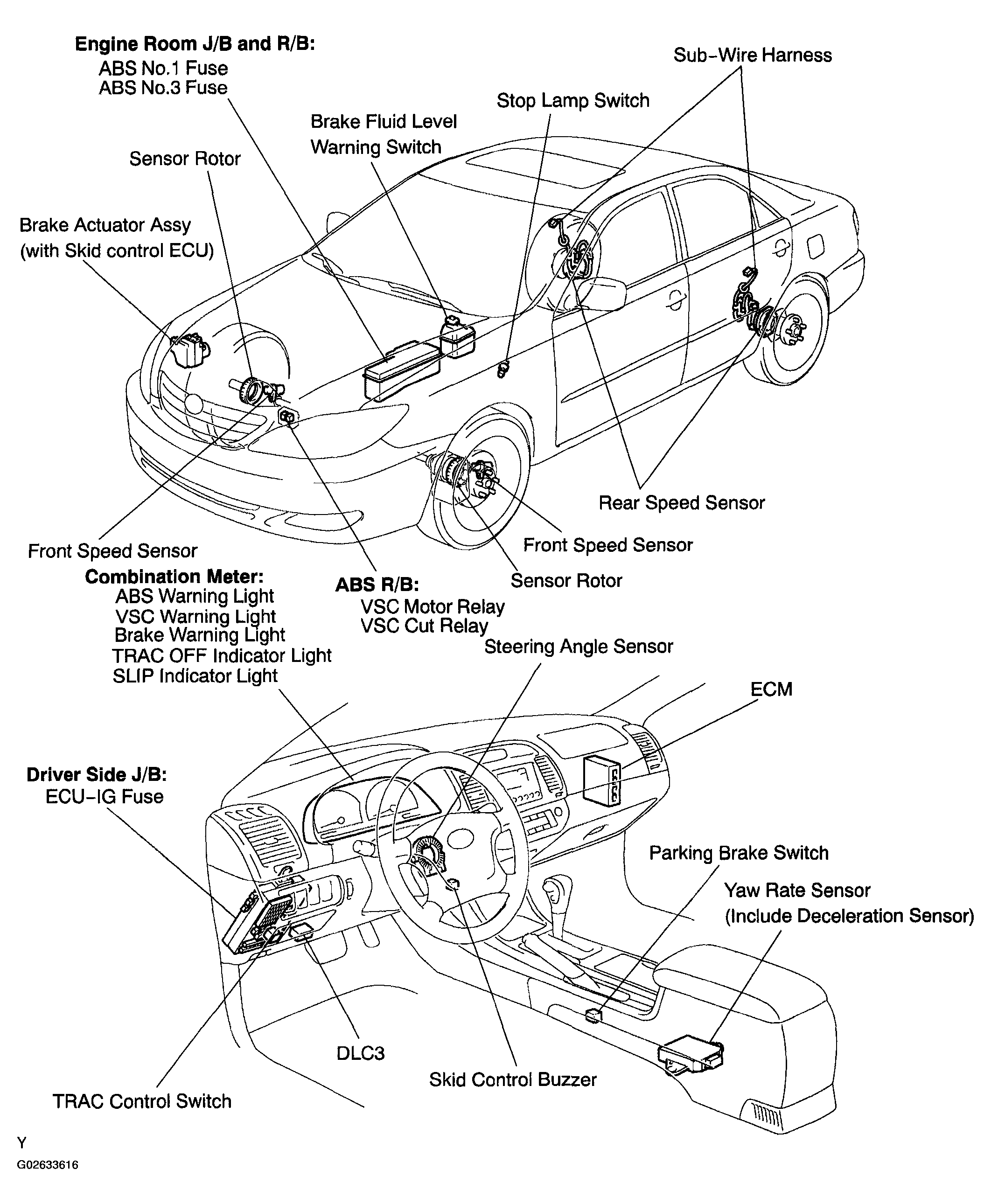

Fig 1: Identifying ABS With EBD & BA & TRAC & VSC System Components

G02633616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
