Data List/Active Test

HINT:

According to the DATA LIST displayed on the hand-held tester, you can read the value and status of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one of the methods to shorten labor time.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. From the display on the tester, read the "DATA LIST".

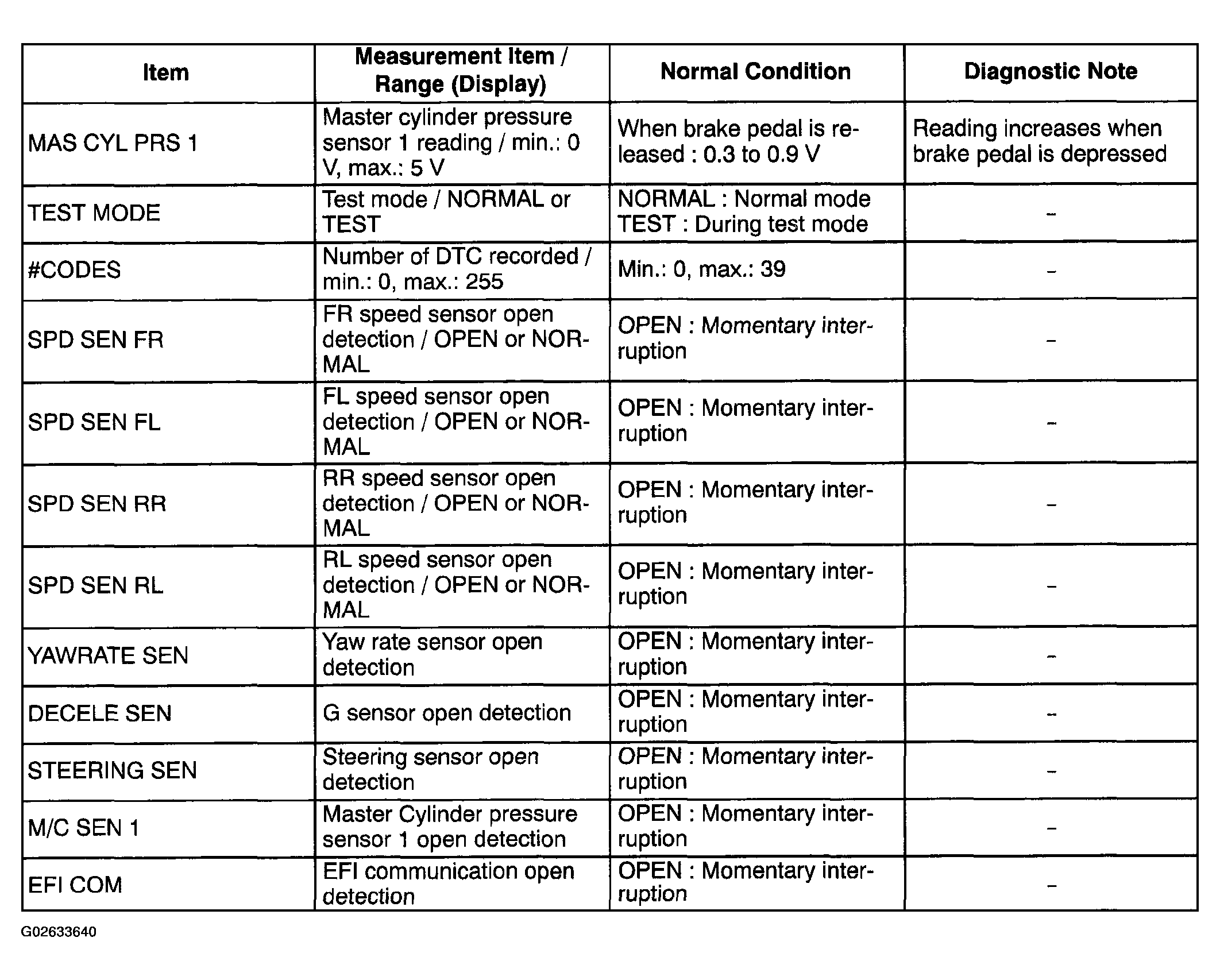

   Fig 1: Data List (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

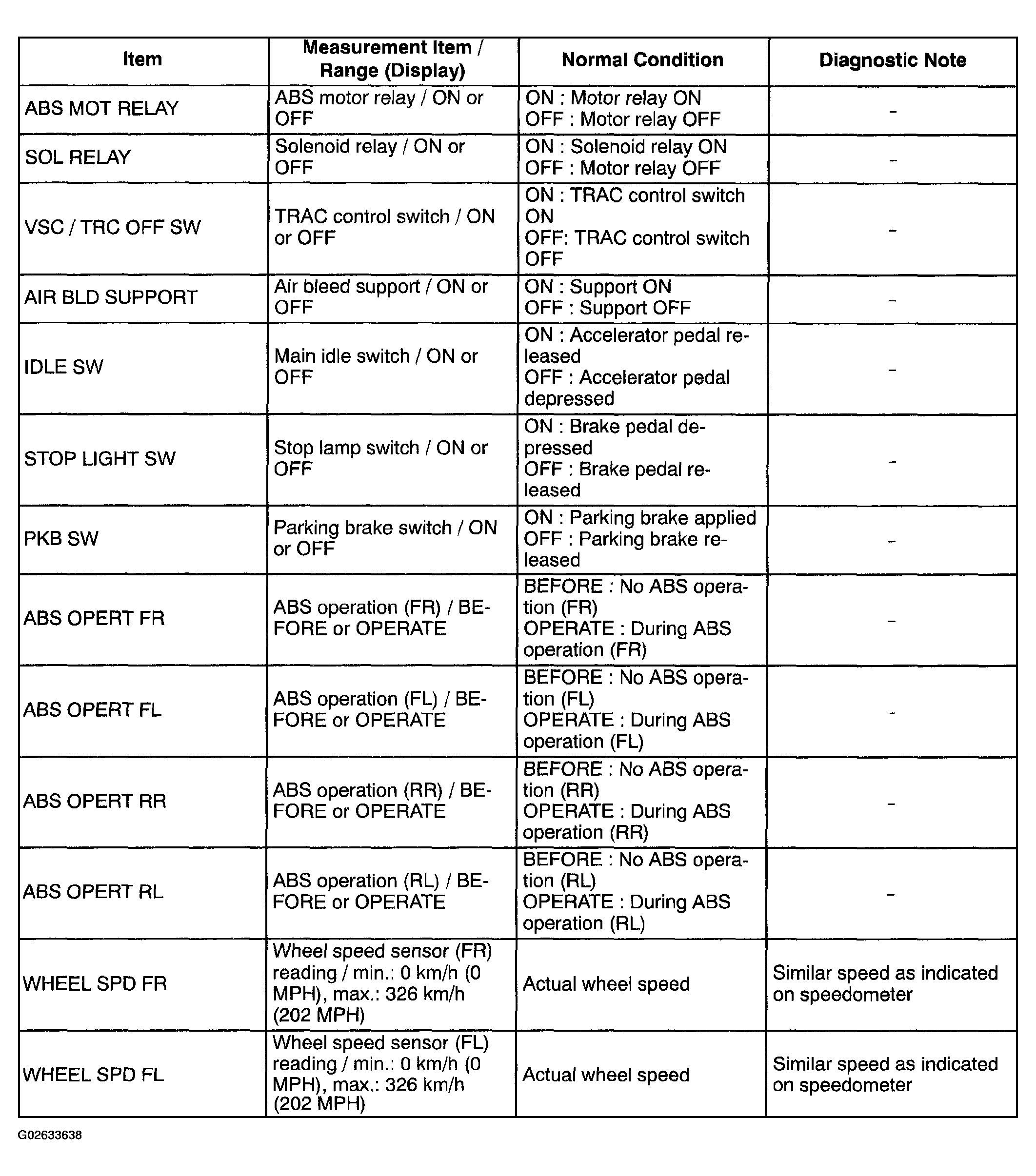

   Fig 2: Data List (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

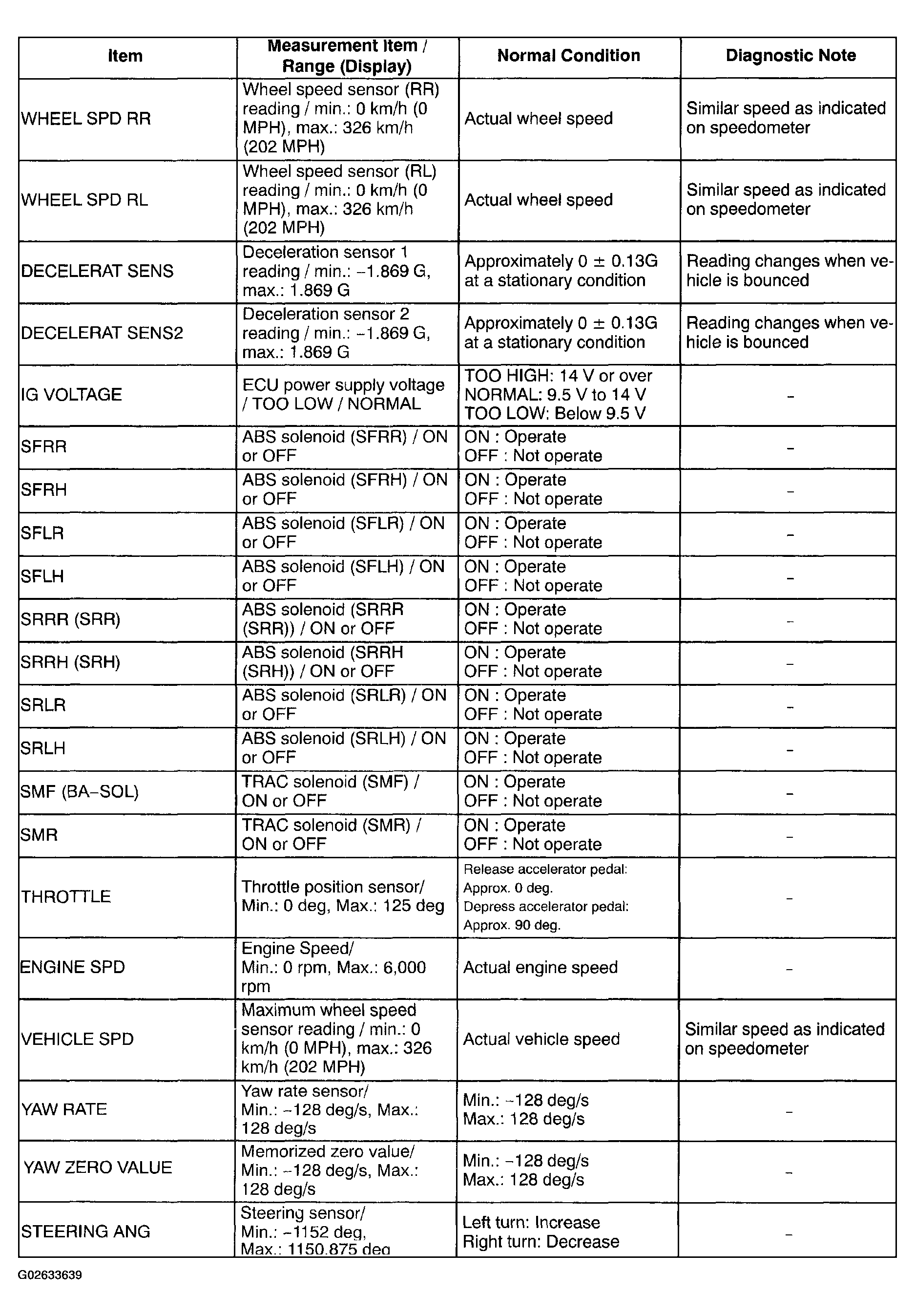

   Fig 3: Data List (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand-held tester allows the relay and actuator, etc. to operate without removing any parts. Performing the ACTIVE TEST as the first step of troubleshooting is one of the methods to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. According to the display on the tester, perform the "ACTIVE TEST".

HINT:

The ignition switch must be turned to the ON position to proceed to the ACTIVE TEST using the hand-held tester.
