DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

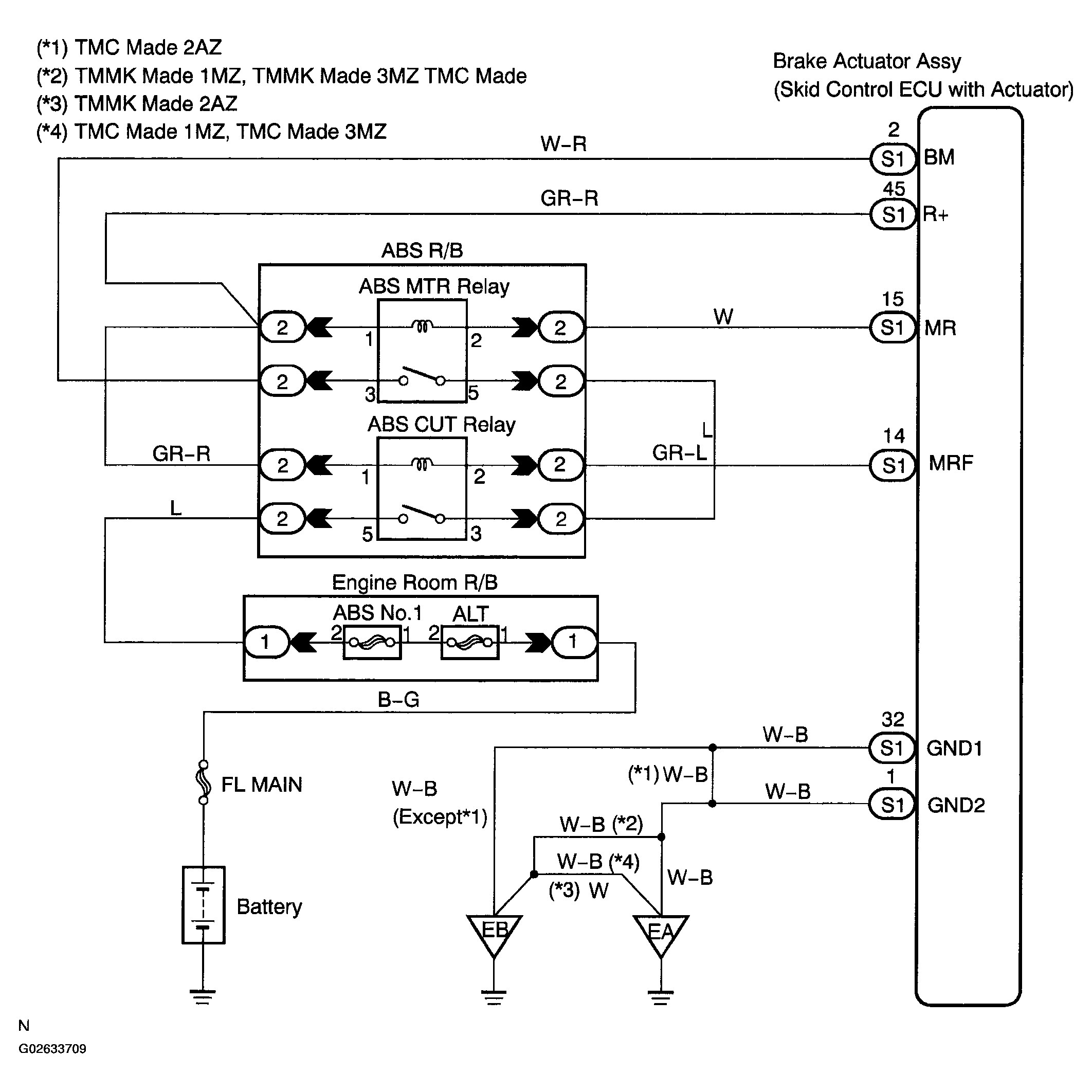

Fig 1: Pump Motor Is Locked Wiring Diagram

G02633709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
