Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
DTC C1249/49: Open Circuit In Stop Light Switch Circuit
>>
Wiring Diagram
DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

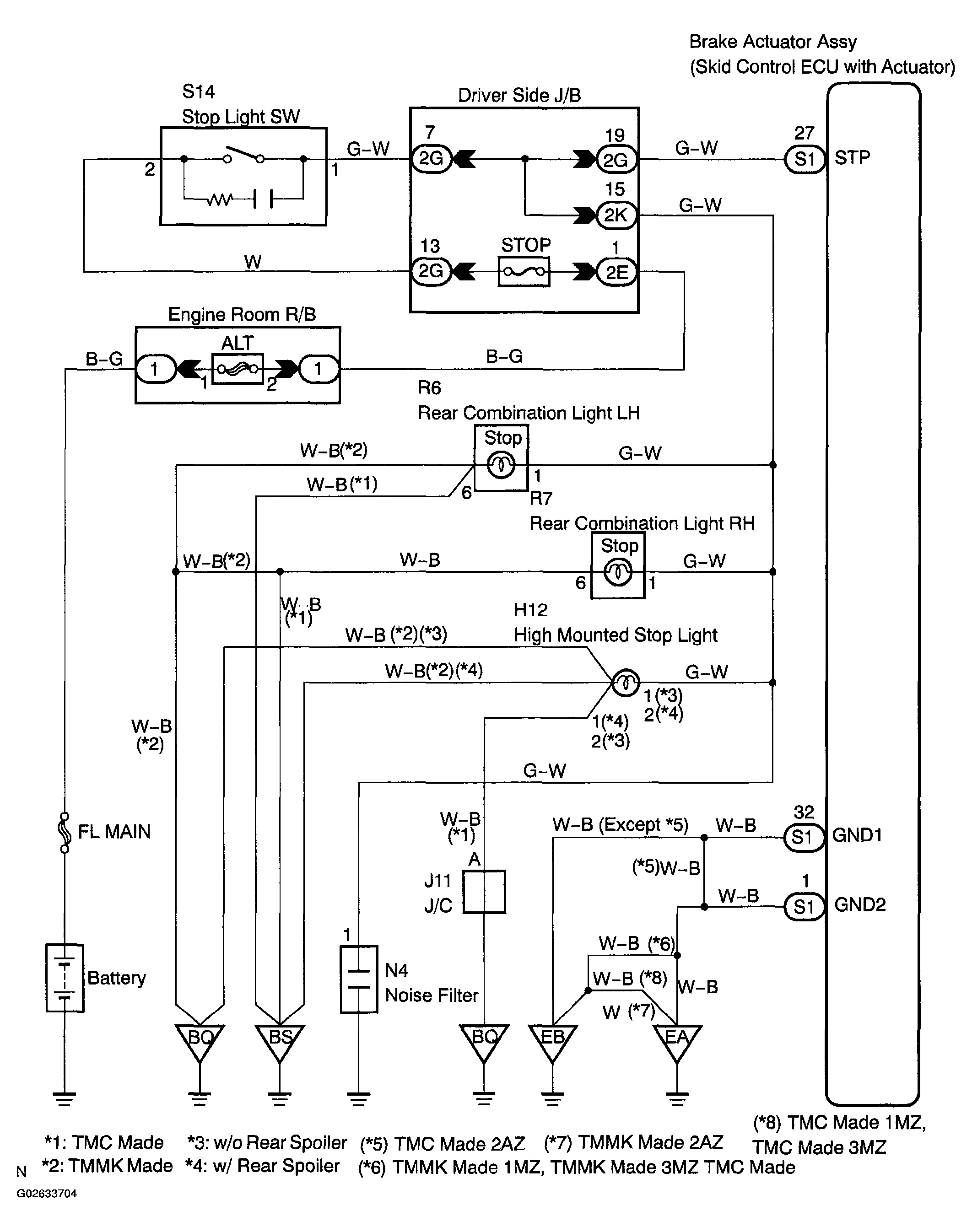

Fig 1: Open Circuit In Stop Light Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
