Circuit Description

The master cylinder pressure sensor is connected to the skid control ECU in the actuator.

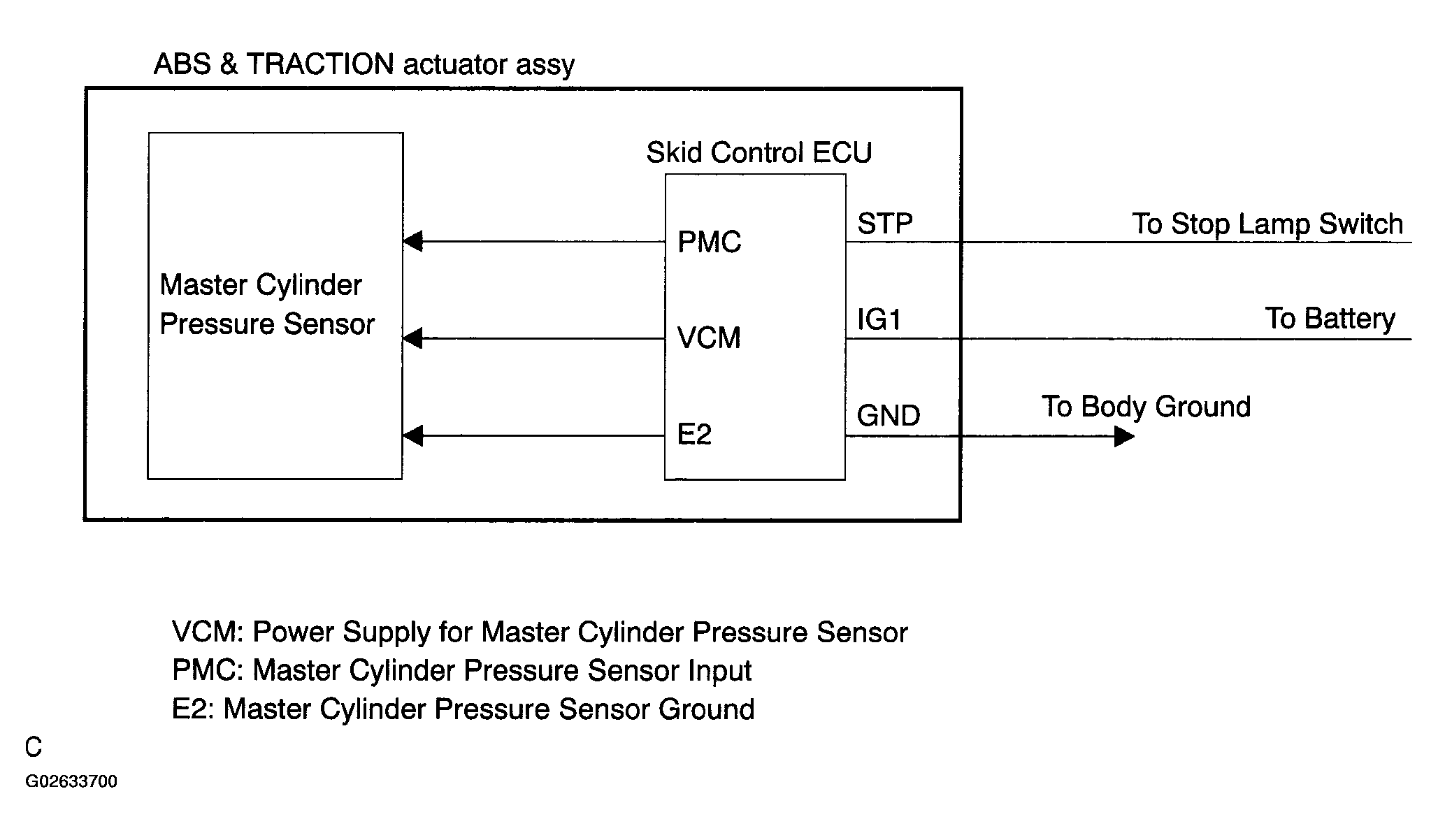

Fig 1: Identifying ABS And Traction Actuator Assembly
G02633700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

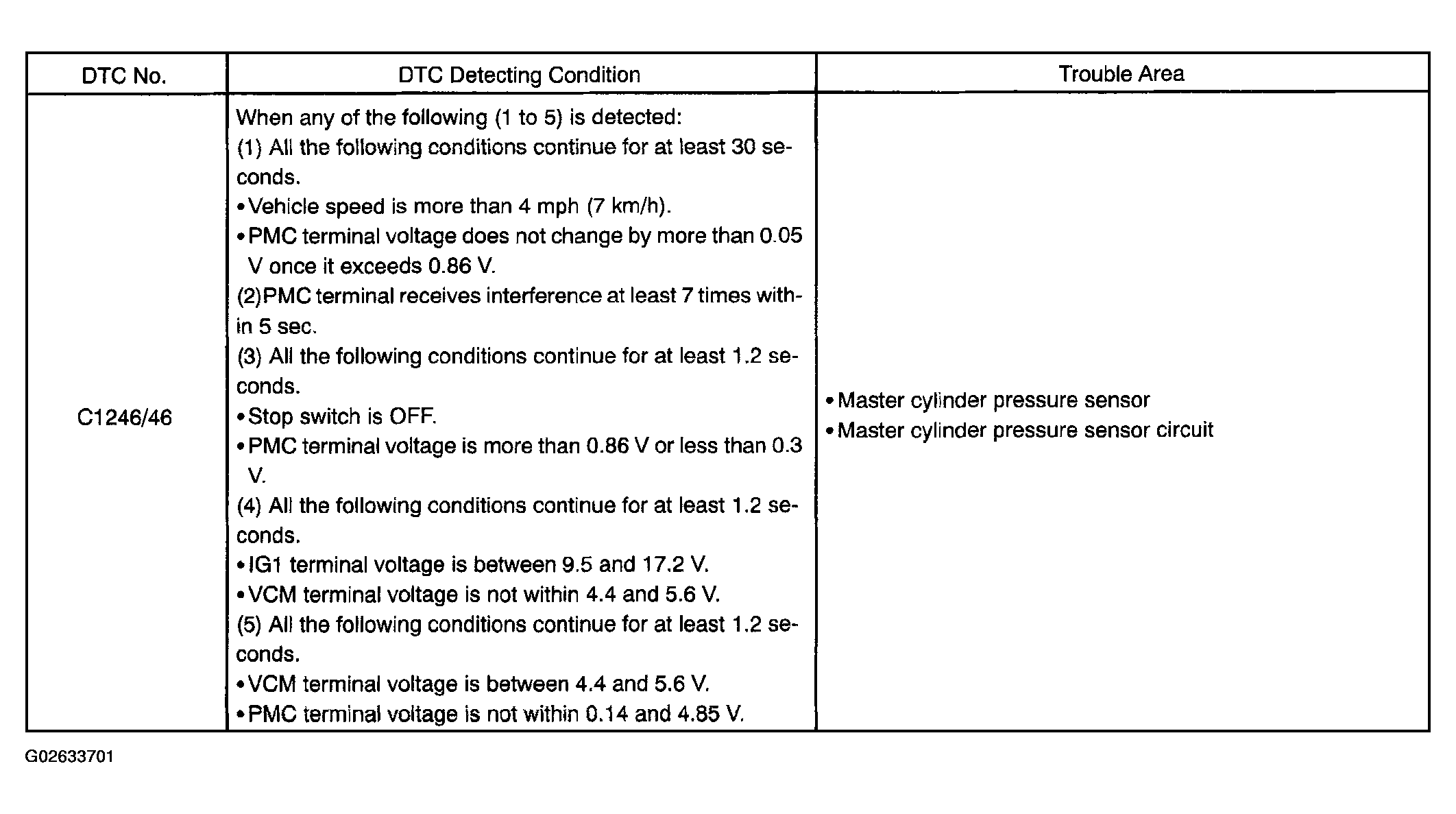

Fig 2: DTC Detecting Condition Chart
G02633701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
