Circuit Description
The steering angle sensor signal is sent to the skid control ECU through the CAN communication system.

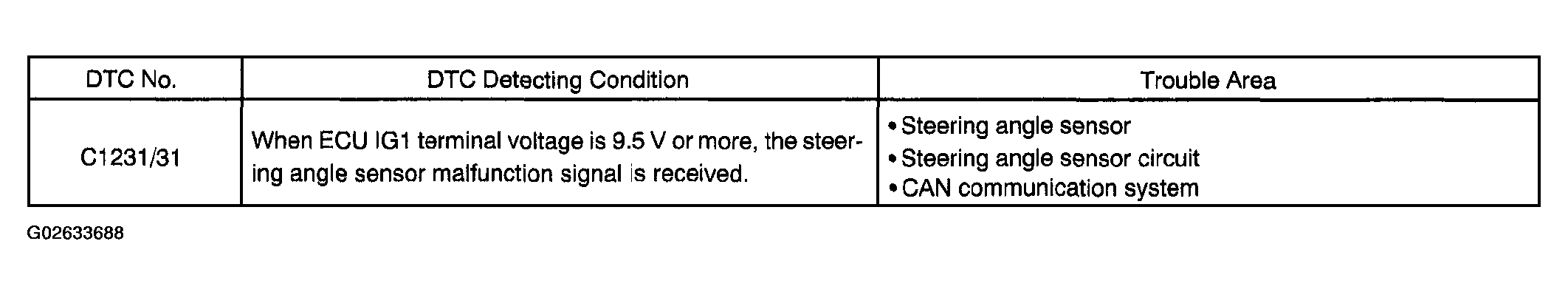

When there is a malfunction in the communication, it will be detected by the diagnosis function.
