DTC C1224/44: Ne Signal Circuit: Wiring Diagram

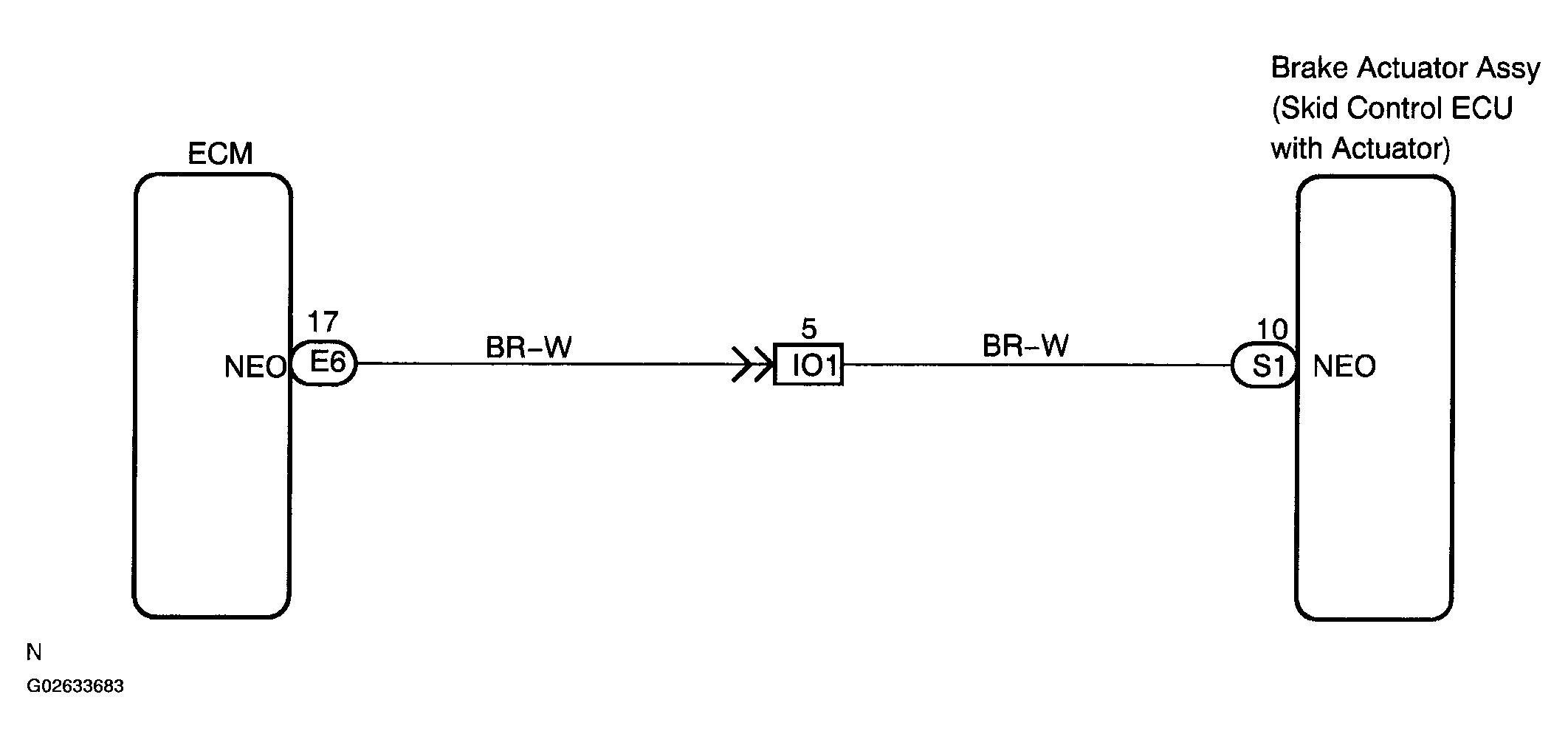

Fig 1: NE Signal Circuit Wiring Diagram

G02633683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
