DTC C1210/36, C1336/39: Zero Point Calibration Of Yaw Rate Sensor Undone/Deceleration Sensor Undone: Wiring Diagram

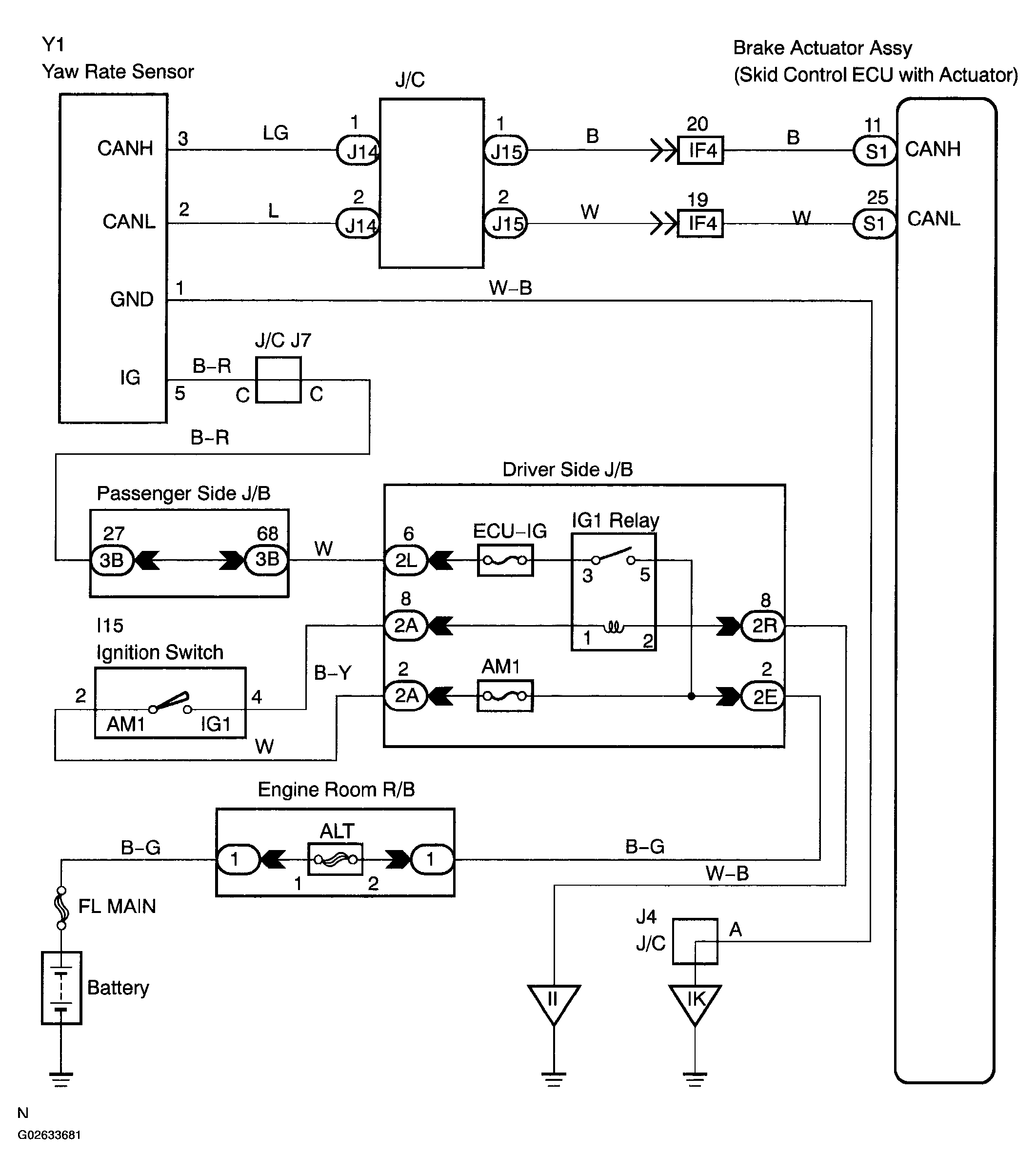

Fig 1: Zero Point Calibration Of Yaw Rate Sensor Wiring Diagram
G02633681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
