DTC C1203/53: ECM Communication Circuit Malfunction: Wiring Diagram

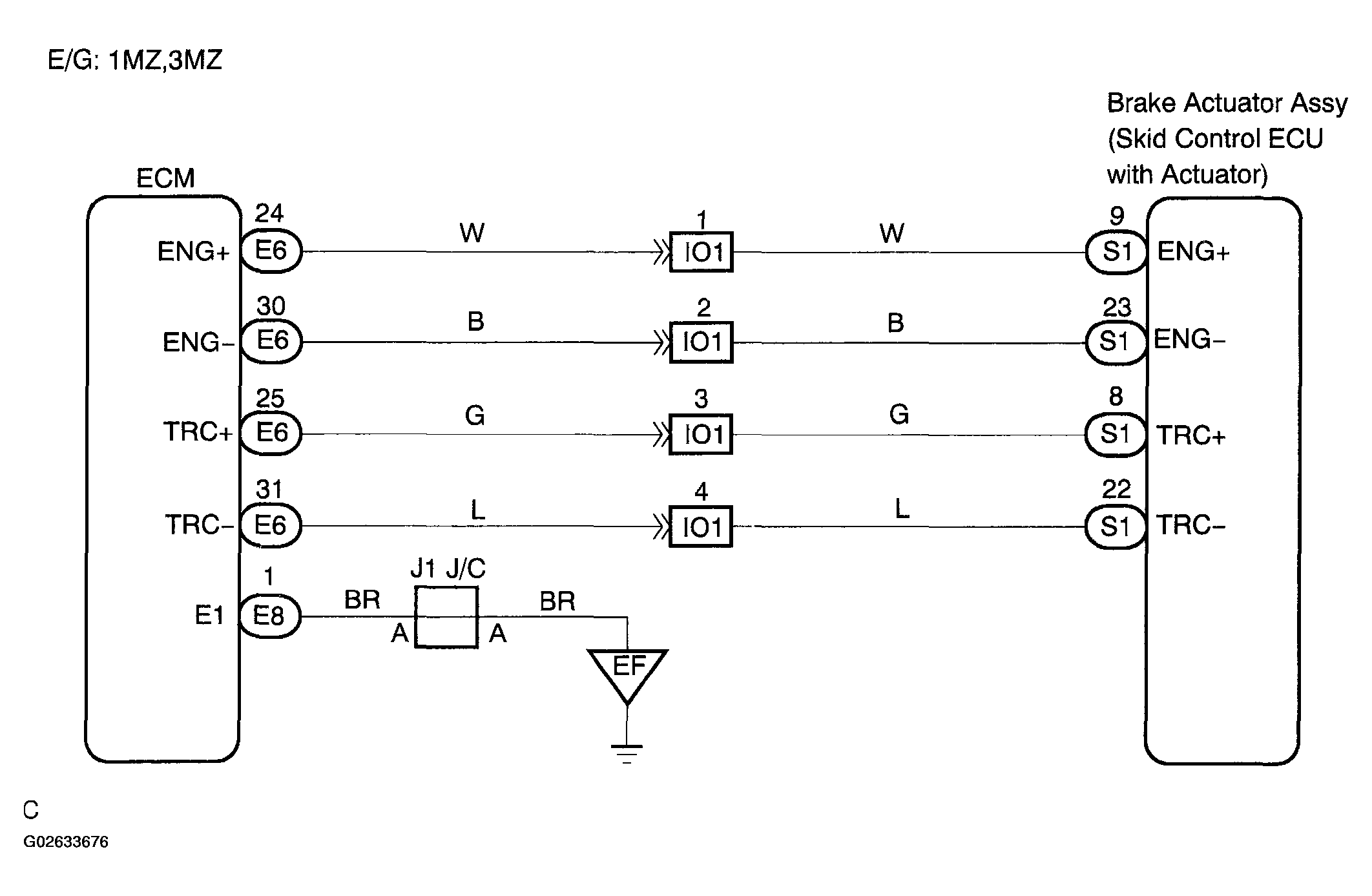

Fig 1: Wiring Diagram (1 Of 2)
G02633676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

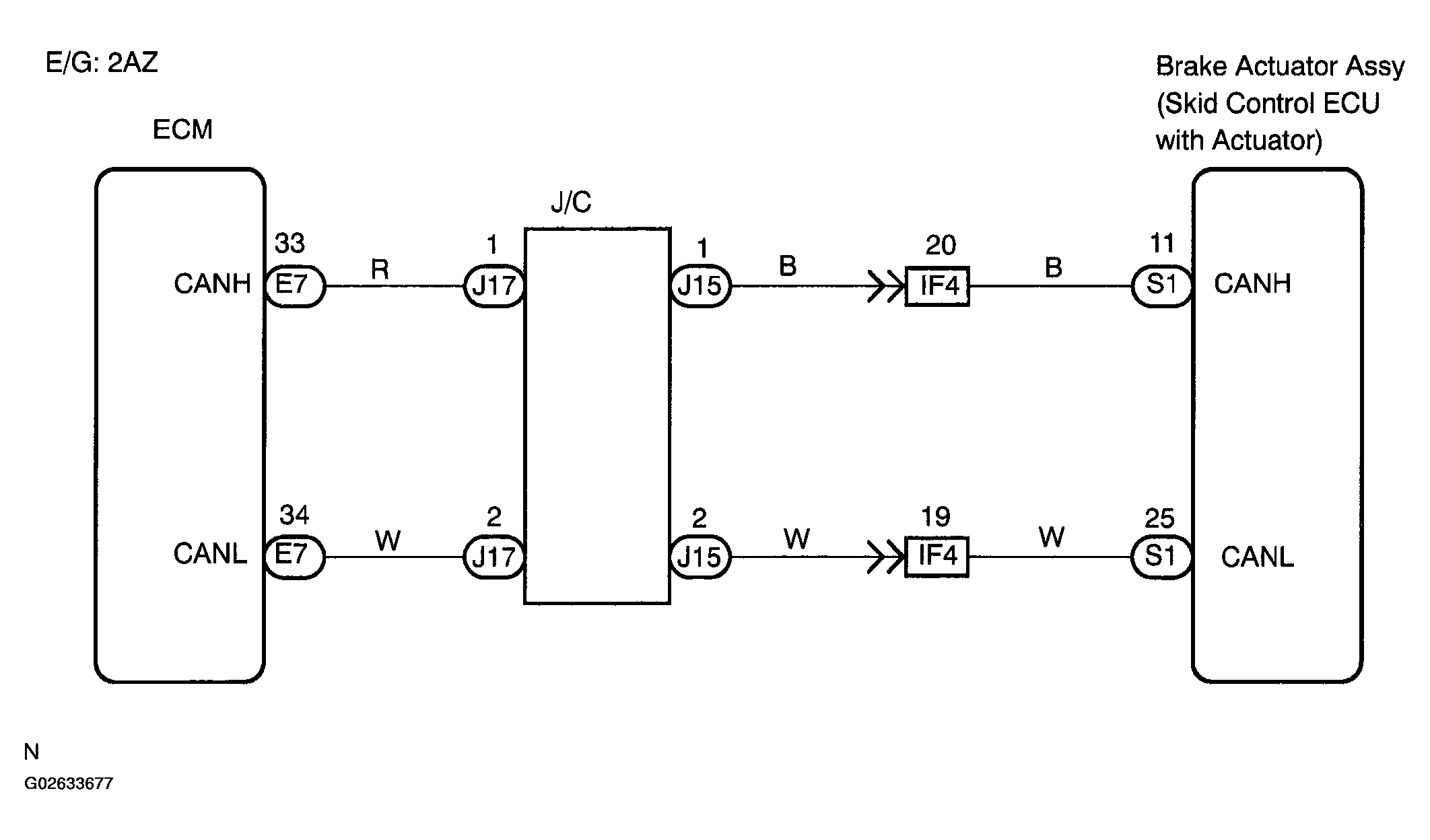

Fig 2: Wiring Diagram (2 Of 2)
G02633677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
