DTC C0278/11, C0279/12: Open/Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

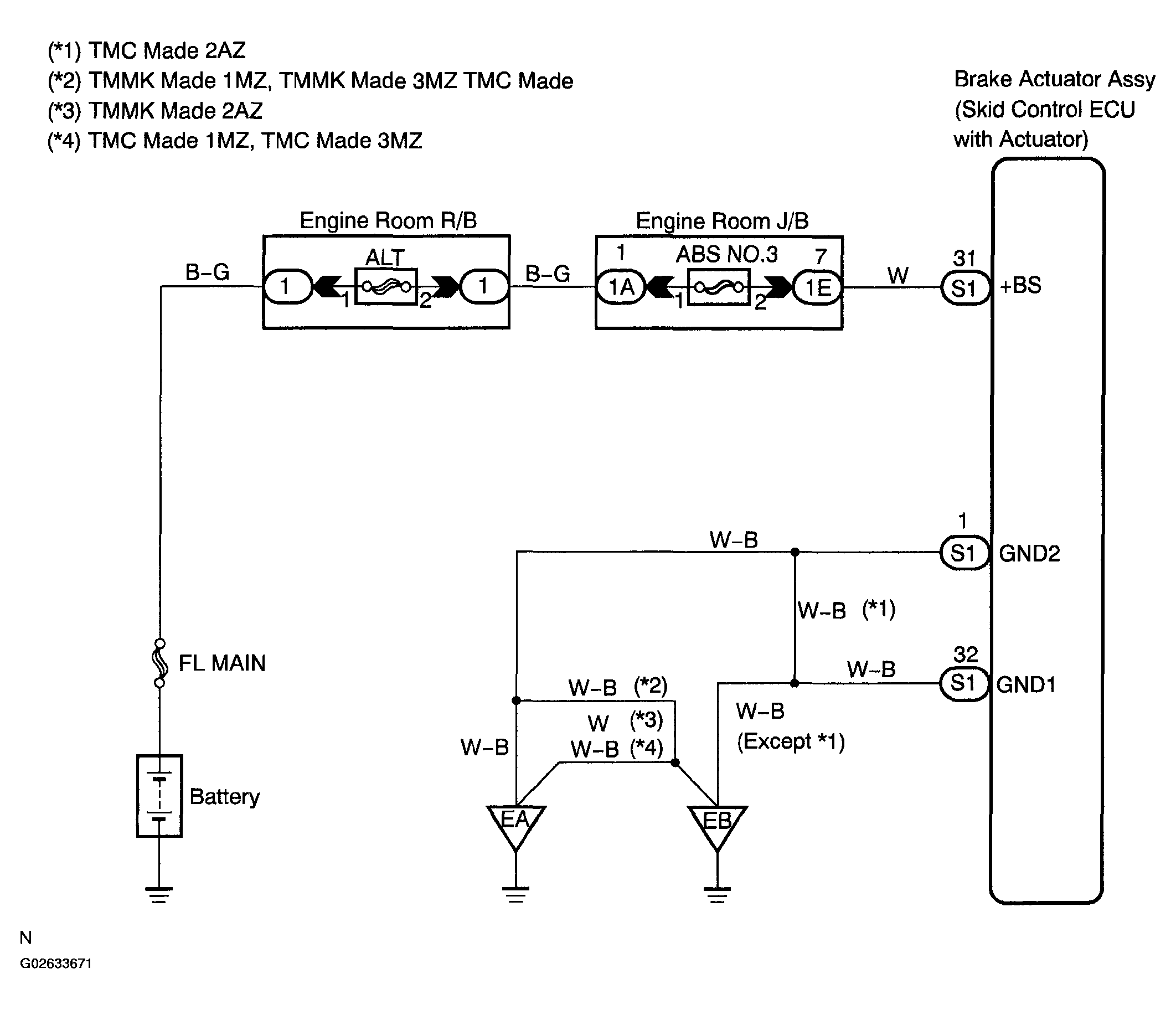

Fig 1: Open/Short Circuit In ABS Solenoid Relay Circuit Wiring Diagram
G02633671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
