Circuit Description

This relay supplies power to each ABS solenoid. If the initial check is OK, after the ignition switch is turned to the ON position, the relay goes on.

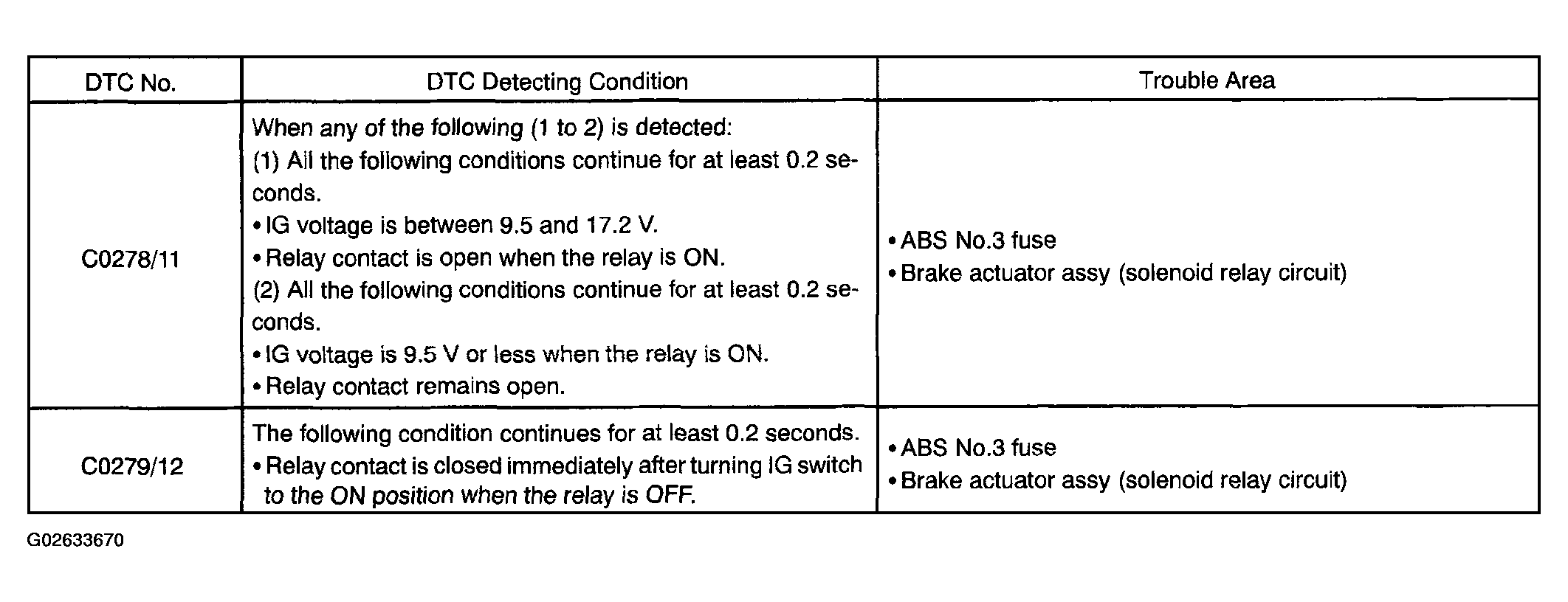

Fig 1: DTC Detecting Condition Chart
G02633670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
