Camry Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics)
>>
DTC C0273/13, C0274/14, C1361/91: Open/B+ Short Circuit In Abs Motor Relay Circuit & Short Circuit In Abs Motor Fail Safe Relay Circuit
>>
Wiring Diagram
DTC C0273/13, C0274/14, C1361/91: Open/B+ Short Circuit In Abs Motor Relay Circuit & Short Circuit In Abs Motor Fail Safe Relay Circuit: Wiring Diagram

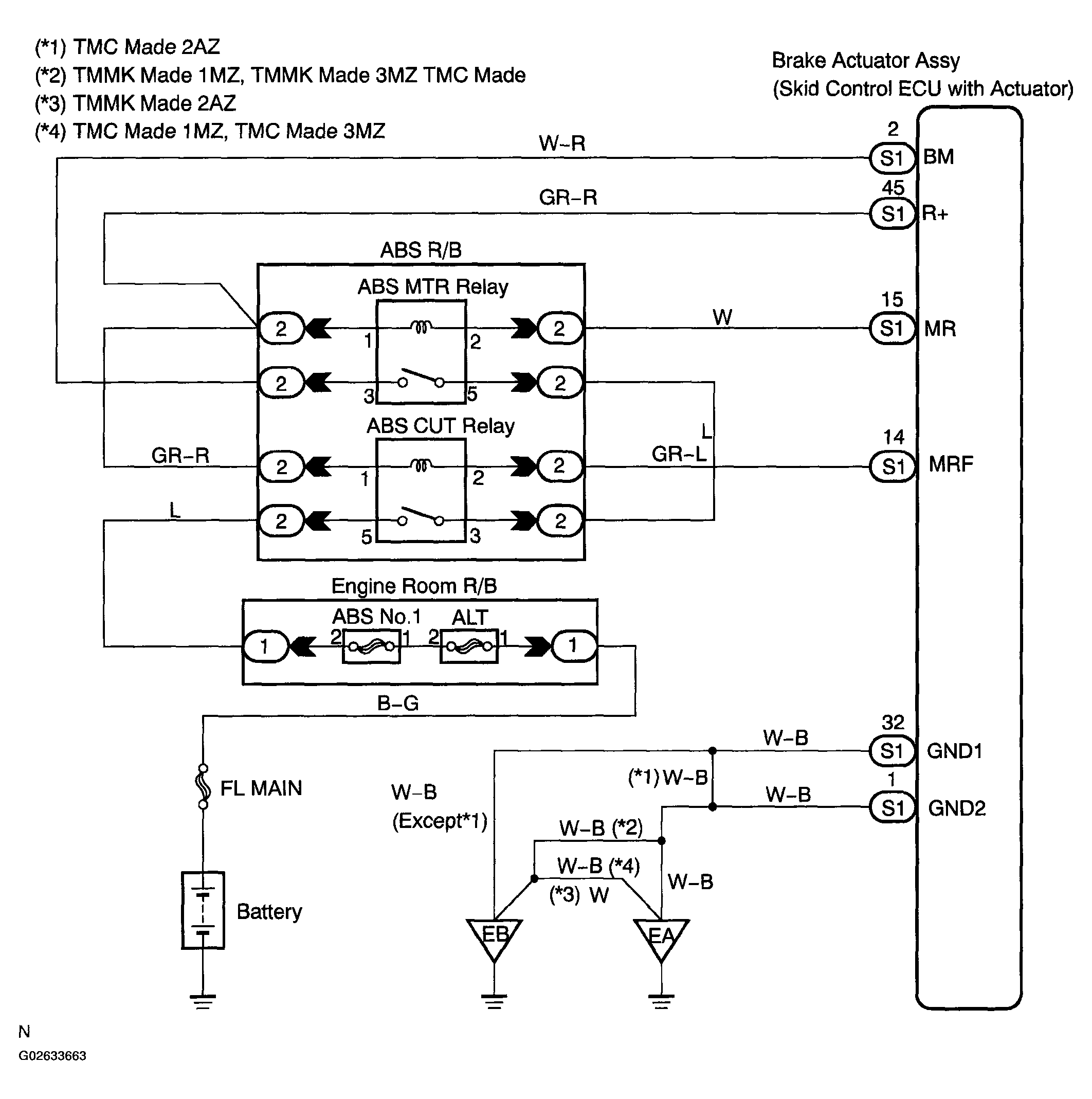

Fig 1: Short Circuit In ABS Motor Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
