Circuit Description
- The ABS motor relays consist of 2 relays and are included in the ABS R/B.
- The ABS cut relay is turned on after turning the ignition switch to the ON position. If the DTCs in the ABS pump motor circuit are memorized, the ABS cut relay cuts off the power supply to the ABS motor relay and performs the fail safe.
- While any of the ABS, BA, TRAC and VSC is operating, the skid control ECU (included in the actuator) turns the ABS motor relay on to operate the actuator pump motor.

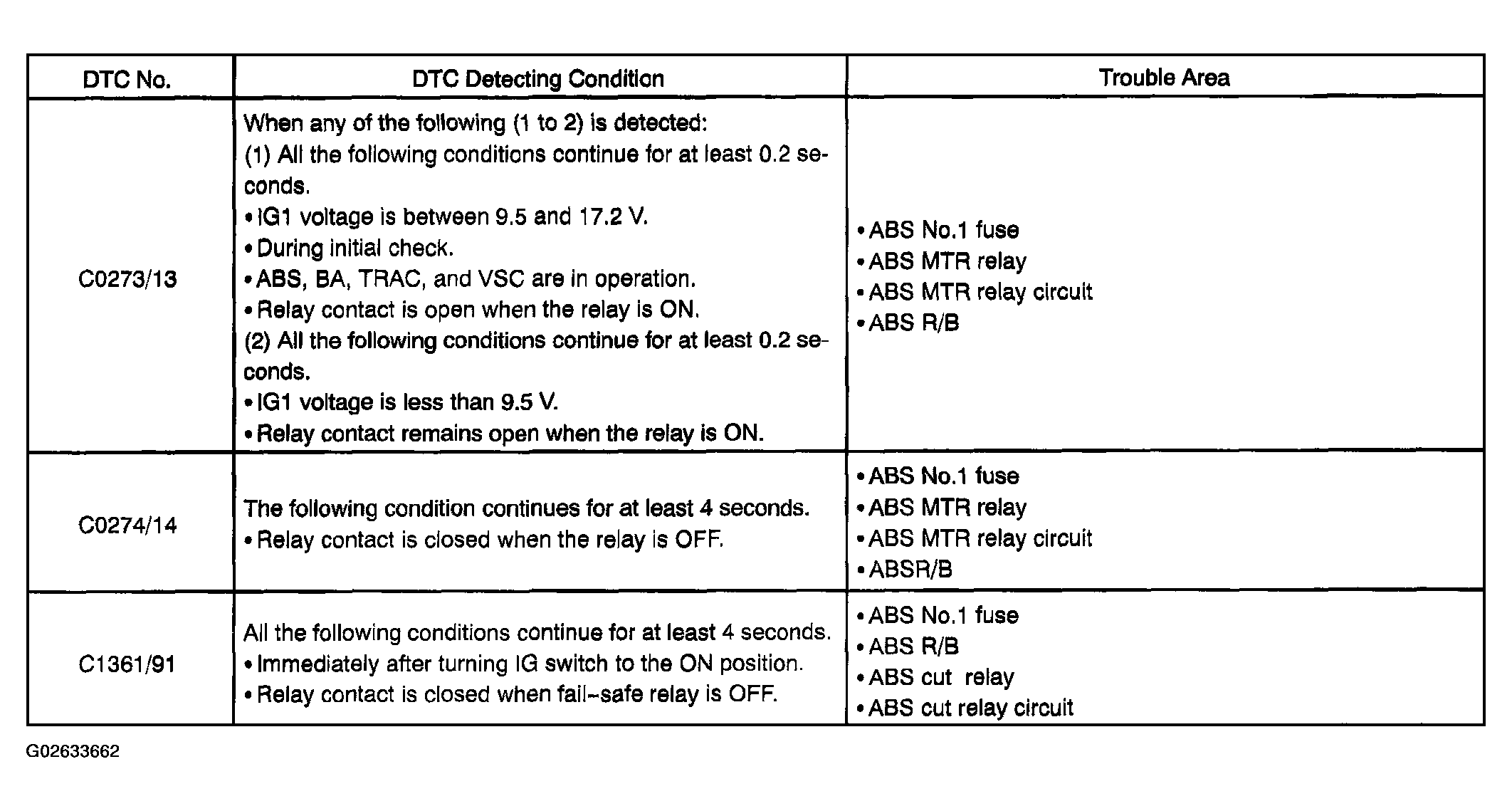

- If the voltage applied to the ABS motor relays (+BM) drops below value where the DTCs are detected due to shortage of the battery or alternator output, the DTCs may be memorized.
