Circuit Description

This solenoid turns on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control braking force.

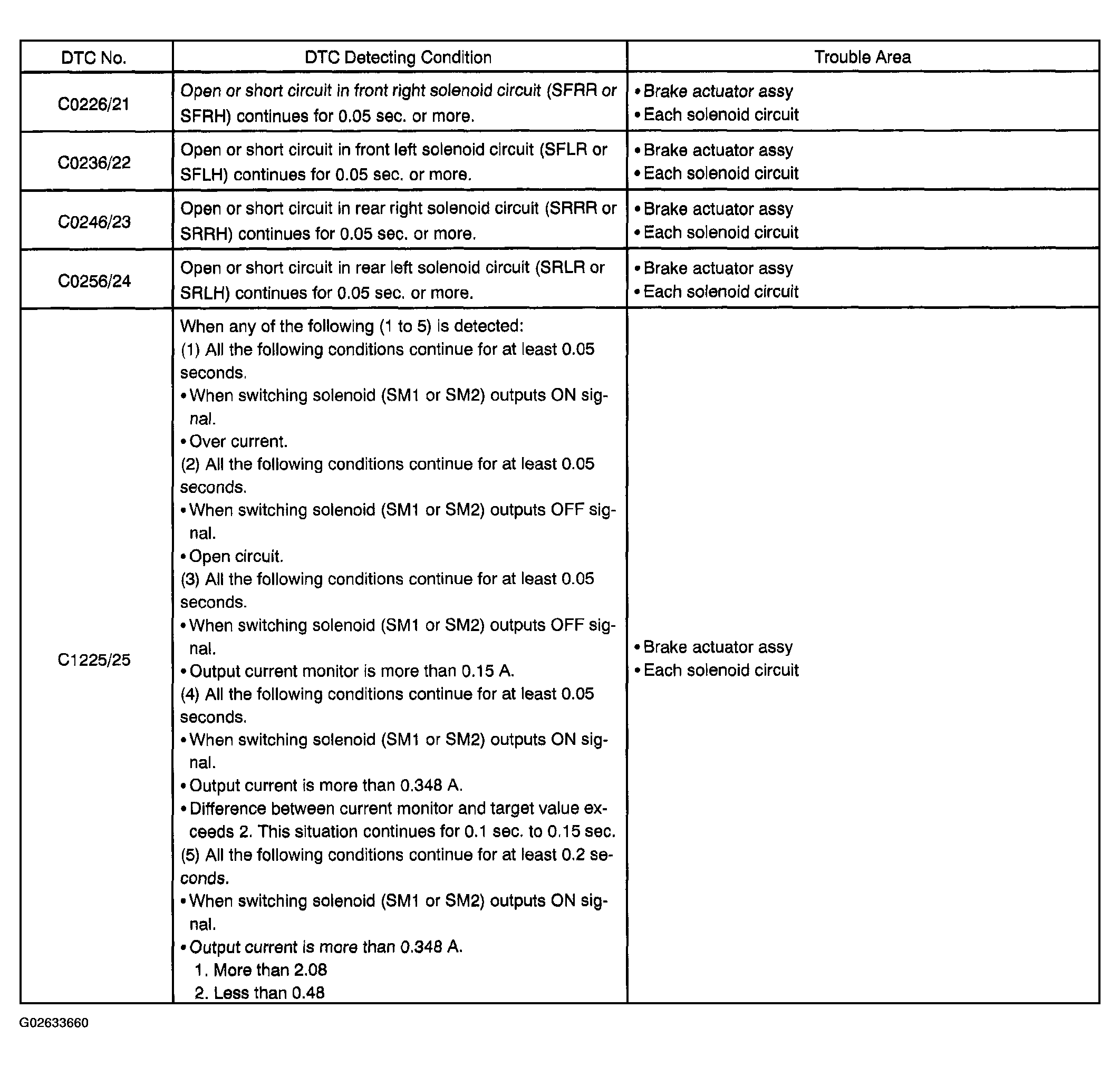

Fig 1: DTC Detecting Condition Chart
G02633660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
