Circuit Description

Refer to DTC C0200/31, C0205/32, C1235/35, AND C1236/36  .

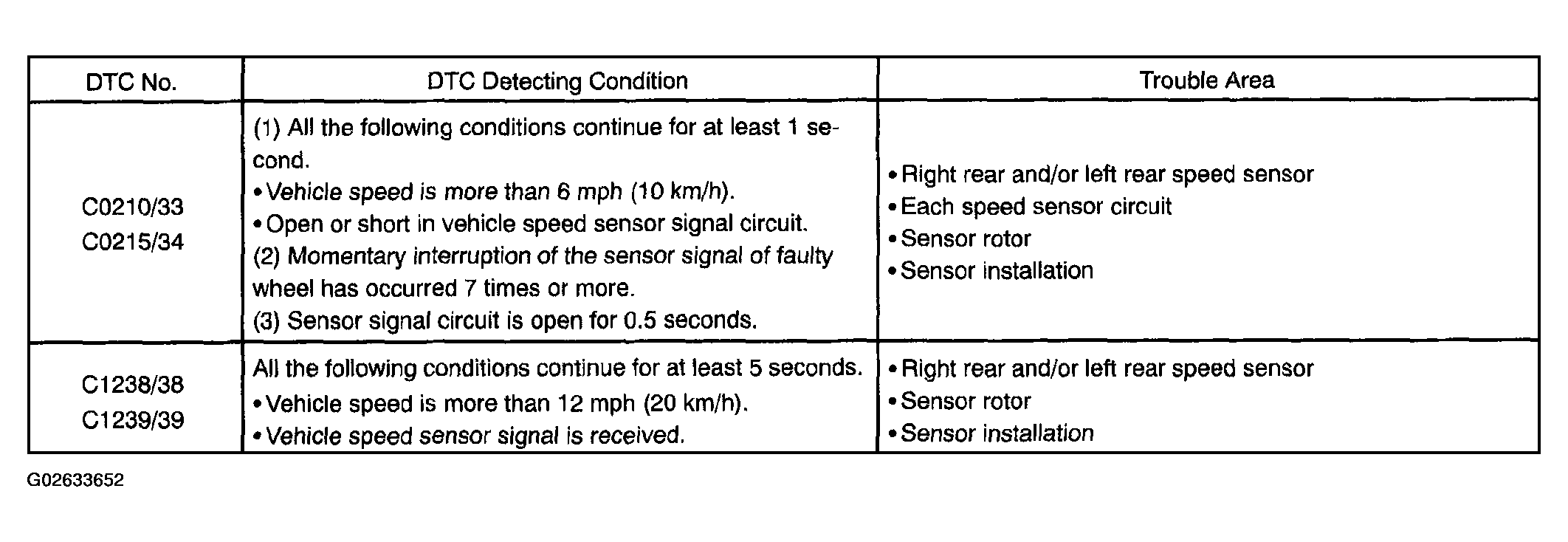

Fig 1: DTC Detecting Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• DTC C0210/33 and C1238/38 are for the right rear speed sensor.
• DTC C0215/34 and C1239/39 are for the left rear speed sensor.
