Rear Brake Shoe, Wheel Cylinder & Brake Drum: Components

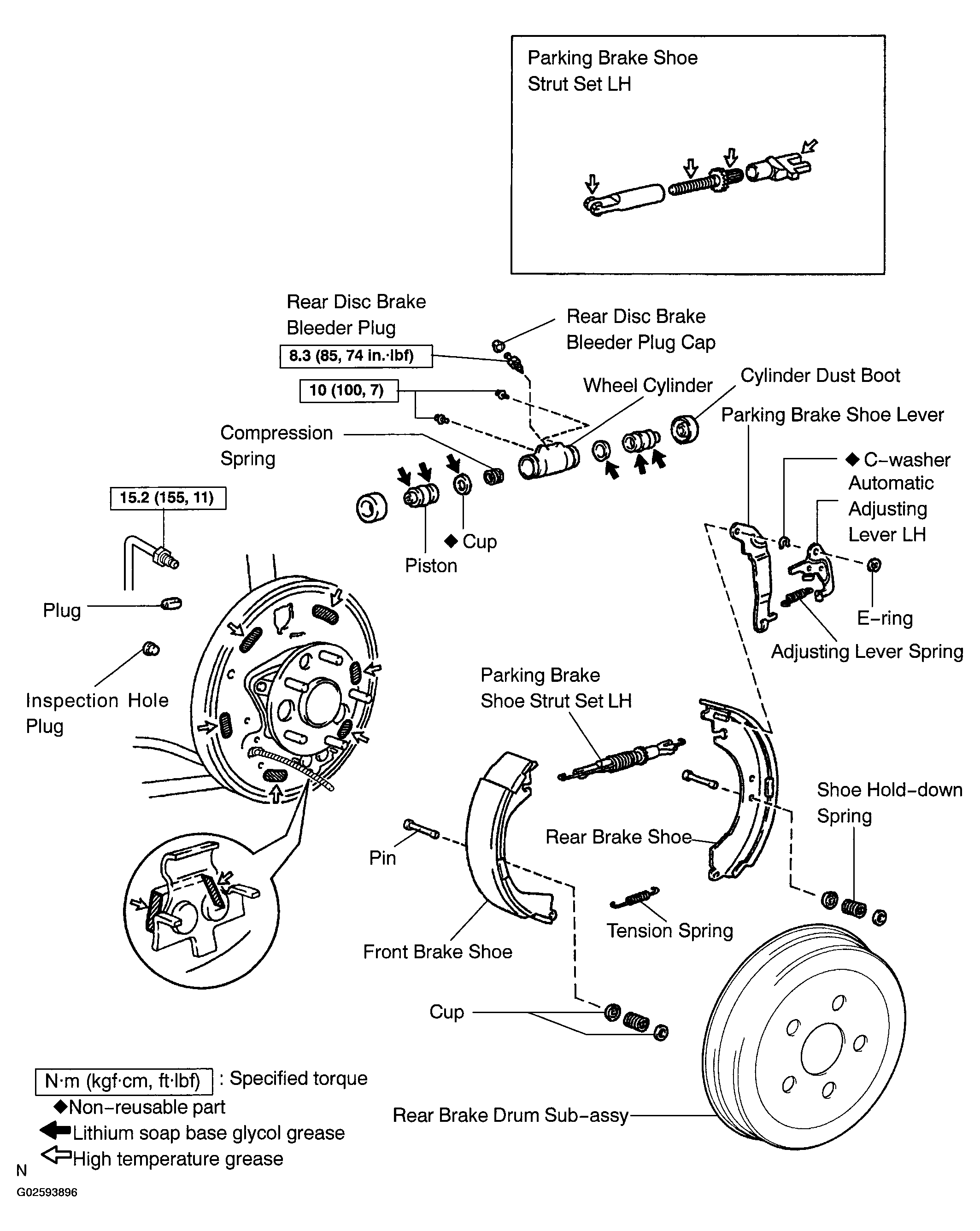

Fig 1: Rear Drum Brake Replacement Components With Torque Specifications

G02593896

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
