Front Brake Pad, Brake Caliper & Brake Rotor: Components

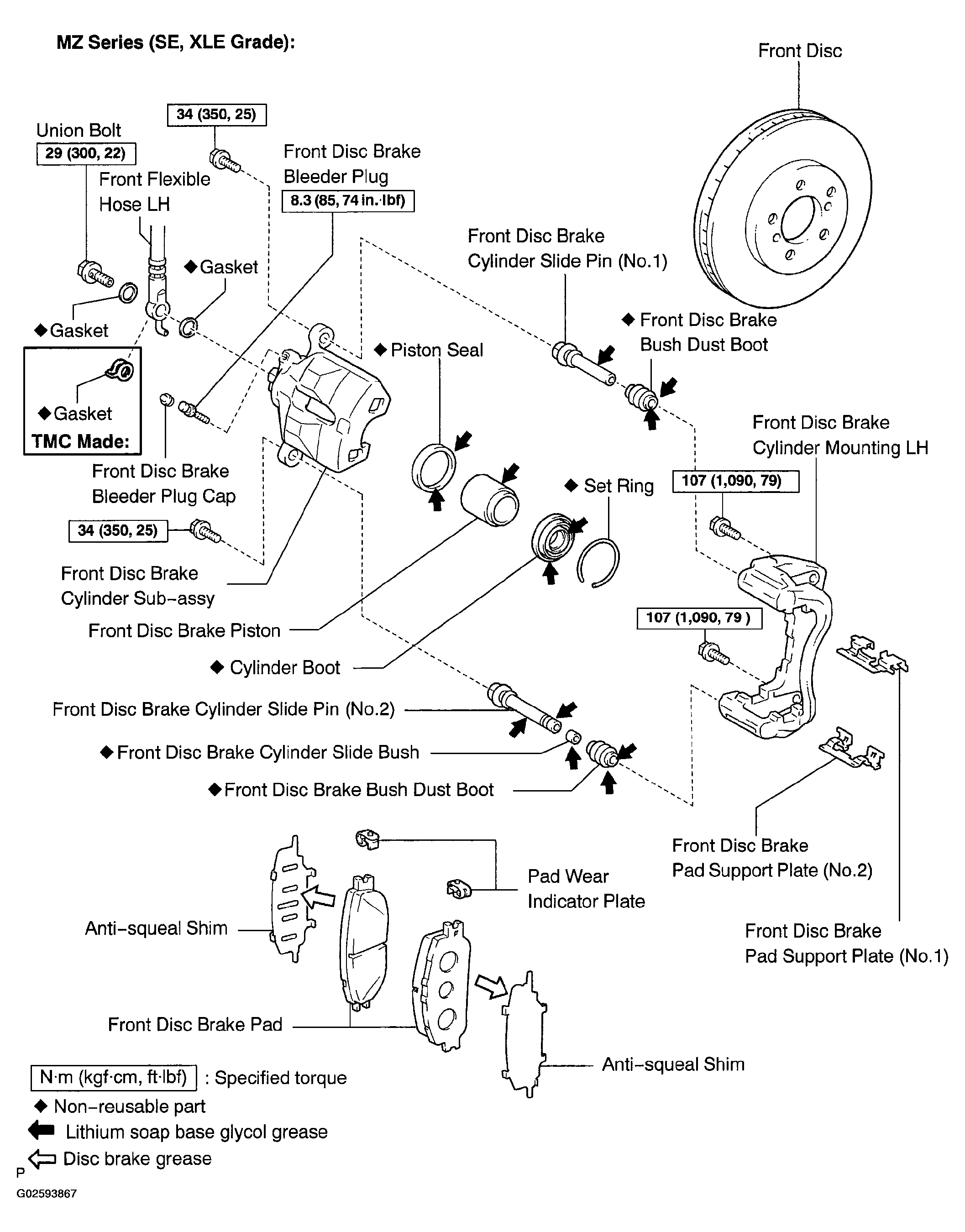

Fig 1: Front Brake Replacement Components With Torque Specifications (1 Of 2)
G02593867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

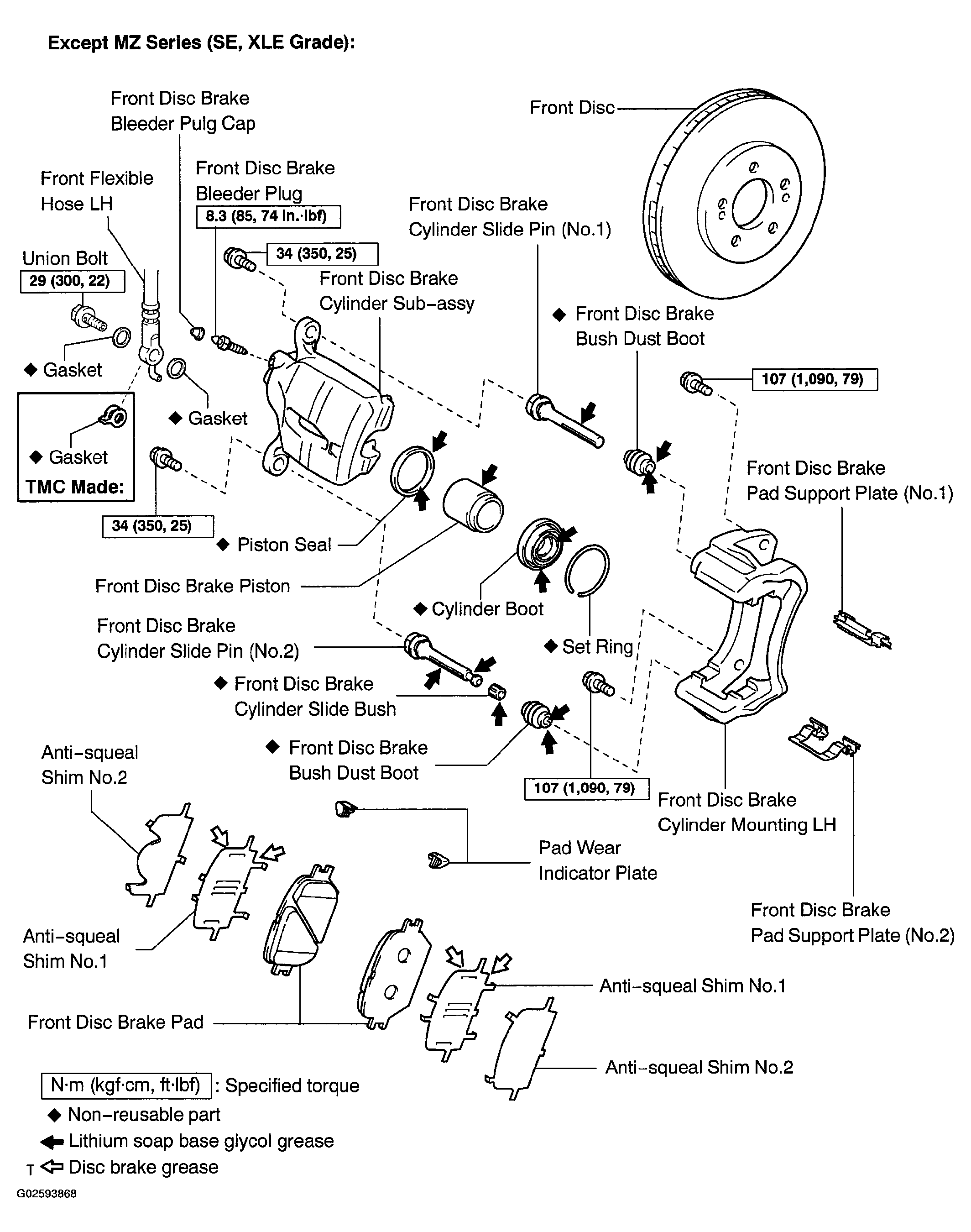

Fig 2: Front Brake Replacement Components With Torque Specifications (2 Of 2)
G02593868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
