Brake Pedal Support ASSY: Components

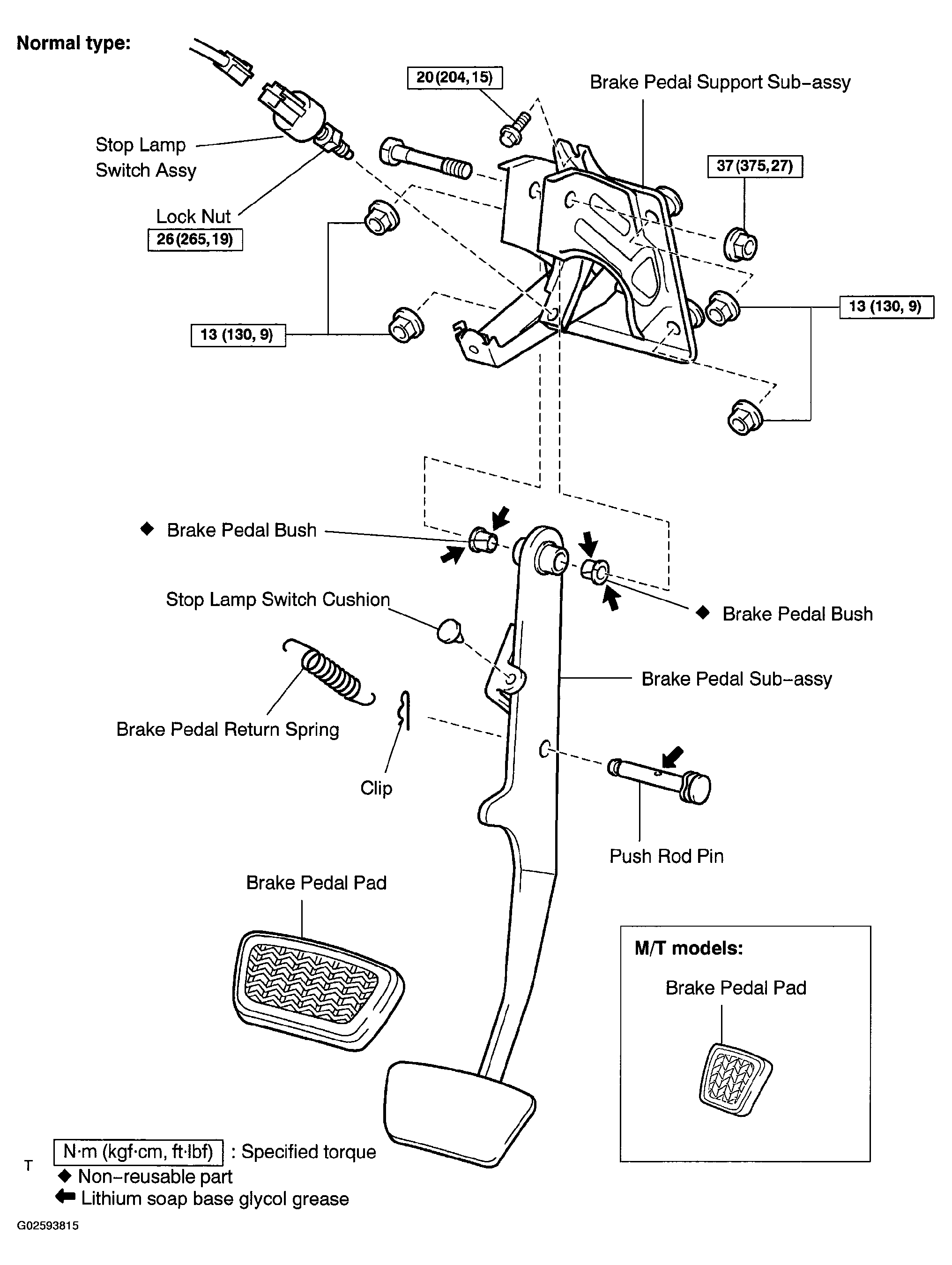

Fig 1: Brake Paddle Assembly Replacement Components With Torque Specifications (1 Of 2)
G02593815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

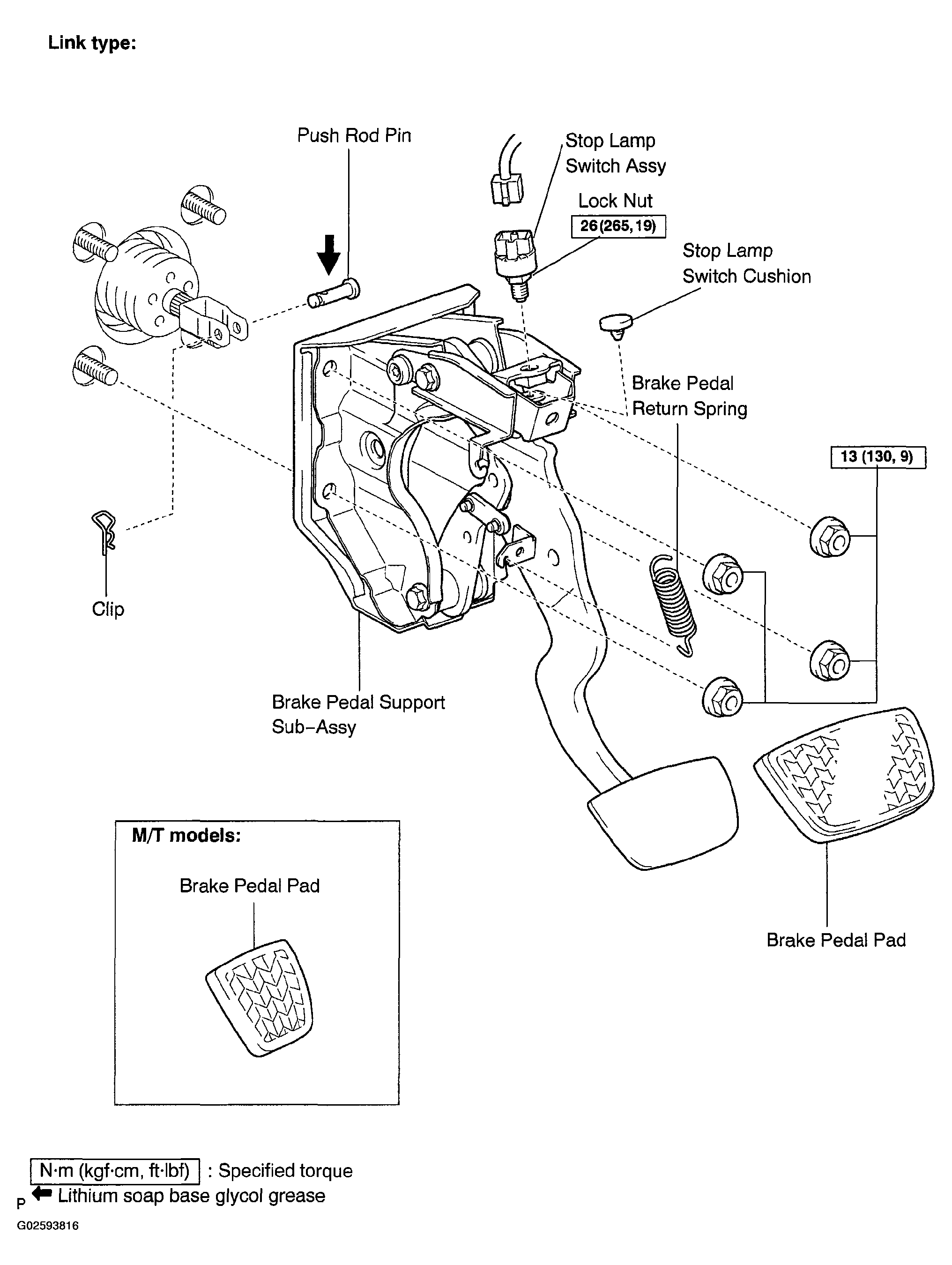

Fig 2: Brake Paddle Assembly Replacement Components With Torque Specifications (2 Of 2)
G02593816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
