Brake Booster ASSY: Components

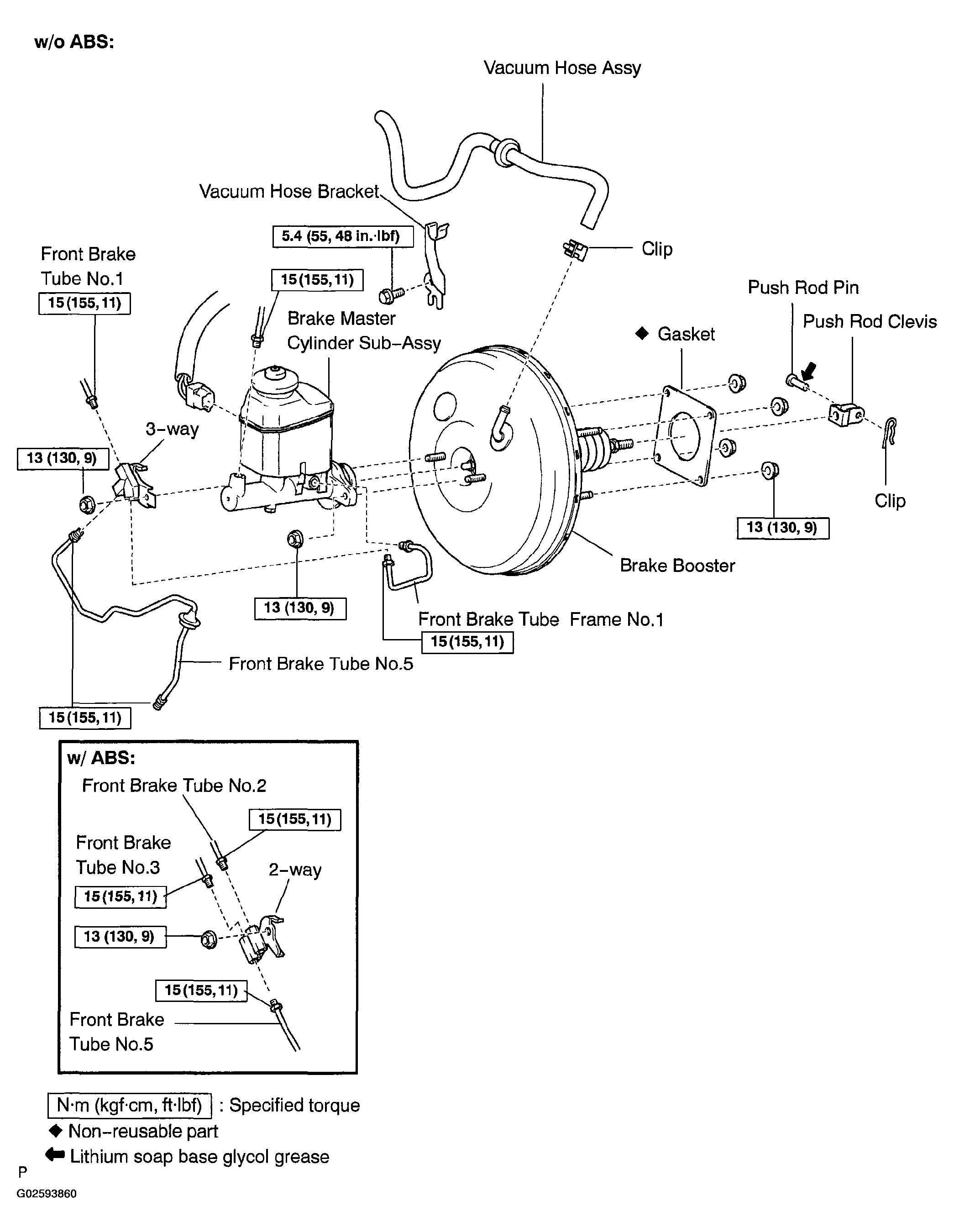

Fig 1: Brake Booster Assembly Replacement Components With Torque Specifications

G02593860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
