Accelerator & Brake Pedal ASSY: Components

Fig 1: Exploded View Of Accelerator And Brake Pedal Components With Torque Specifications (1 Of 2)
G02593820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

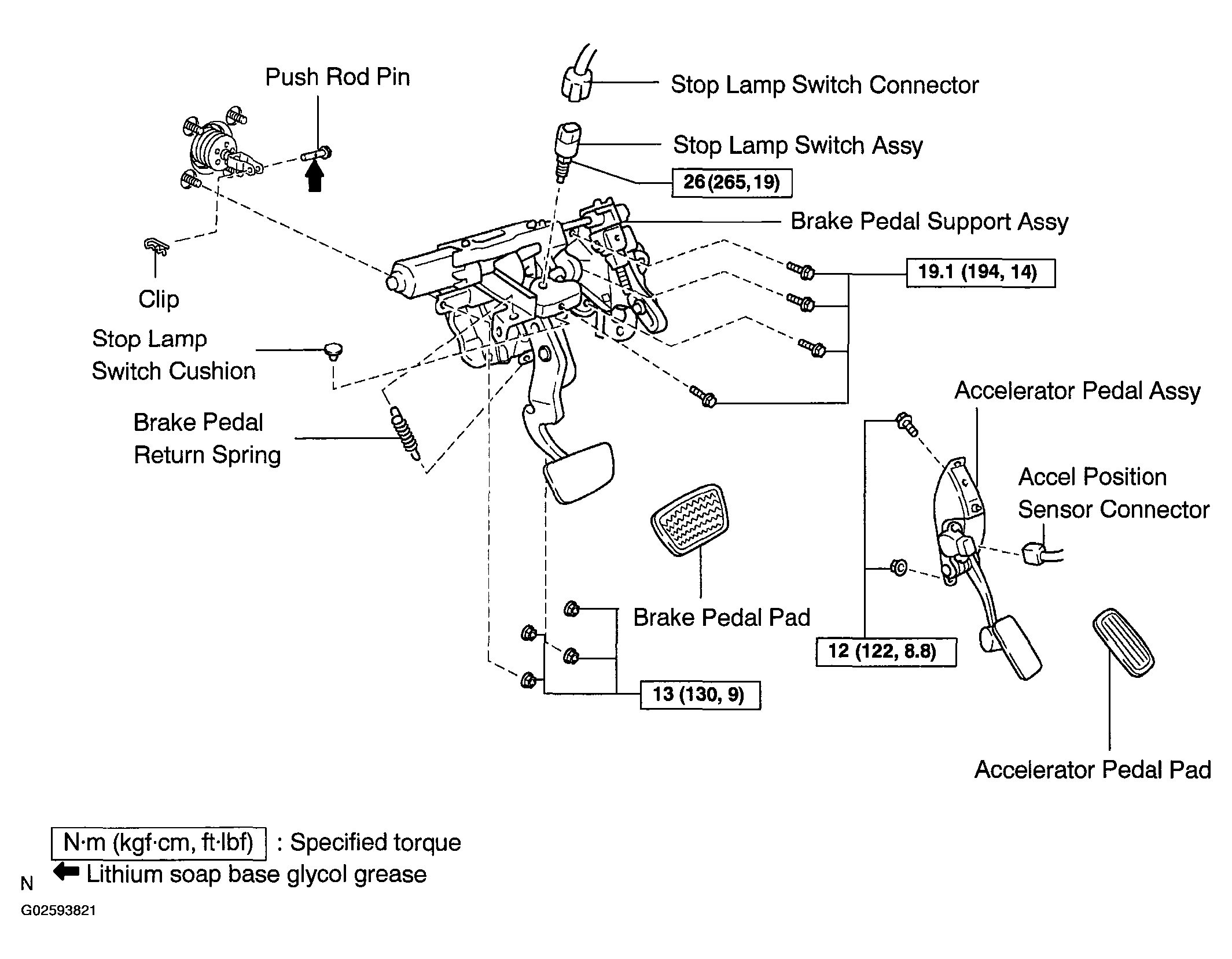

Fig 2: Exploded View Of Accelerator And Brake Pedal Components With Torque Specifications (2 Of 2)
G02593821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
