DTC C0278/11, C0279/12: Open/Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

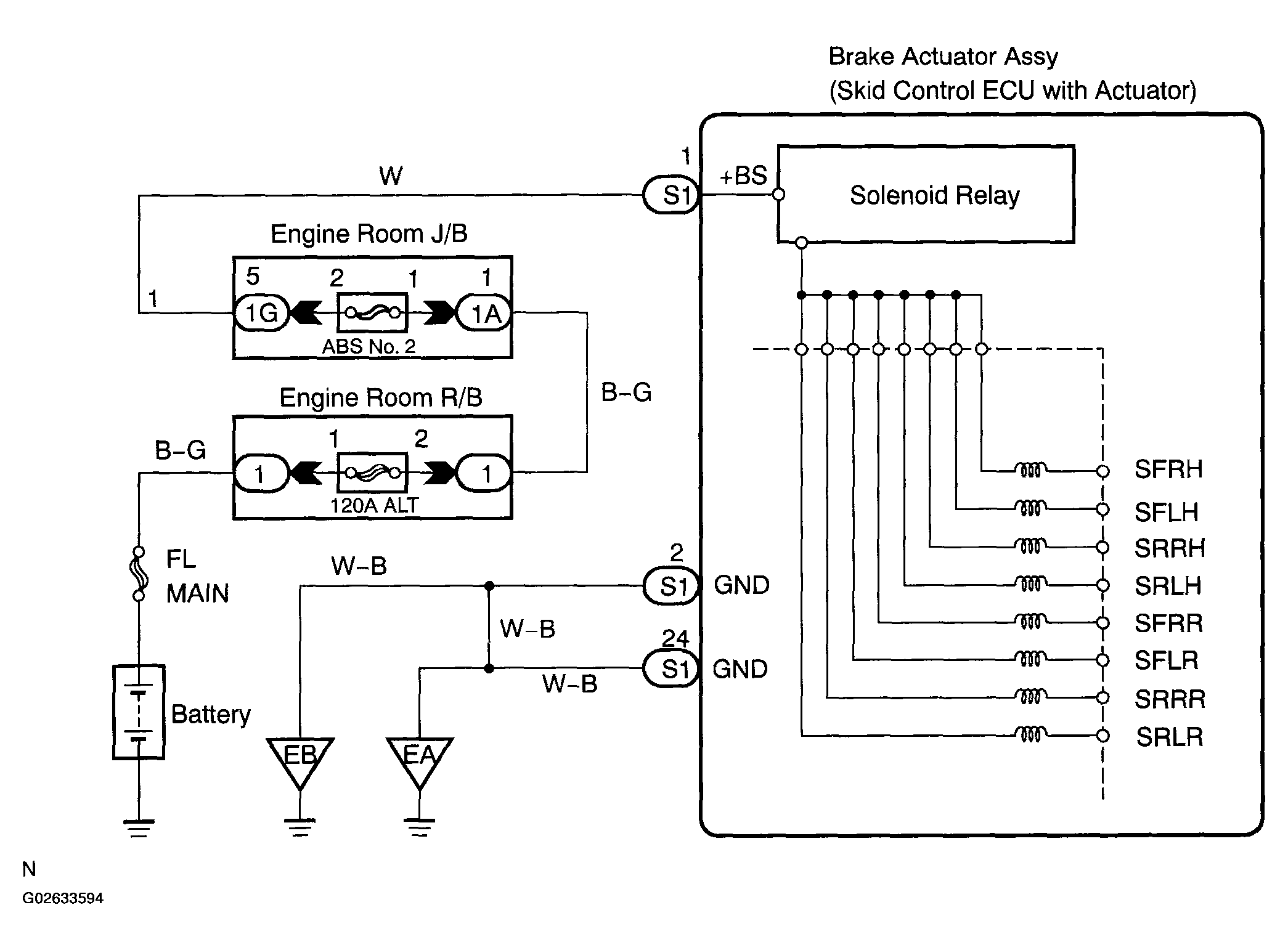

Fig 1: ABS Solenoid Relay Circuit Wiring Diagram

G02633594

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
