DTC C0273/13, C0274/14: Open/B+ Short Circuit In Abs Motor Relay Circuit: Wiring Diagram

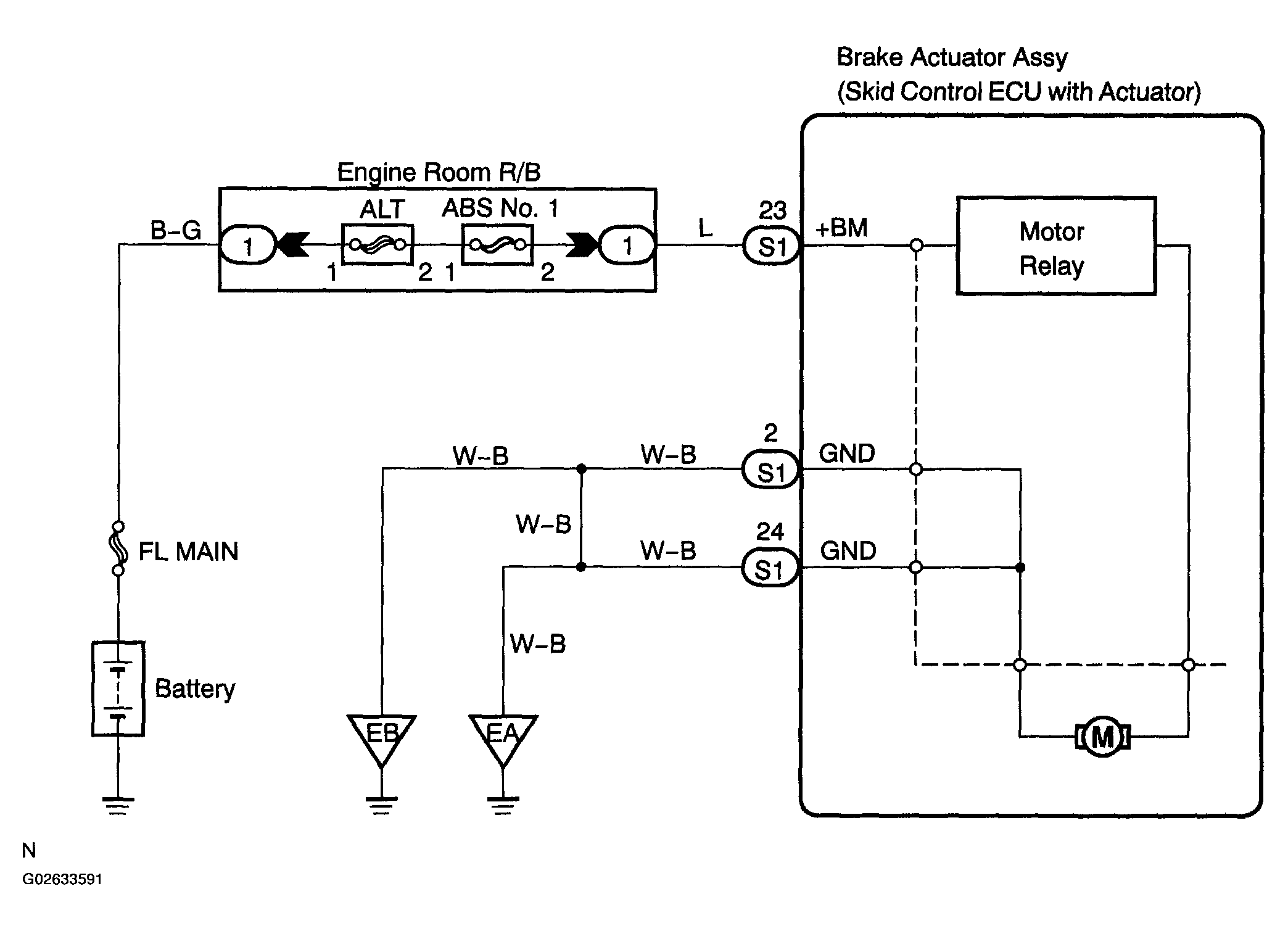

Fig 1: ABS Motor Relay Circuit Wiring Diagram

G02633591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
