Circuit Description

The ABS solenoid valve goes on when signals are sent from the ECU and controls the pressure operating the wheel cylinders, thus braking force is controlled.

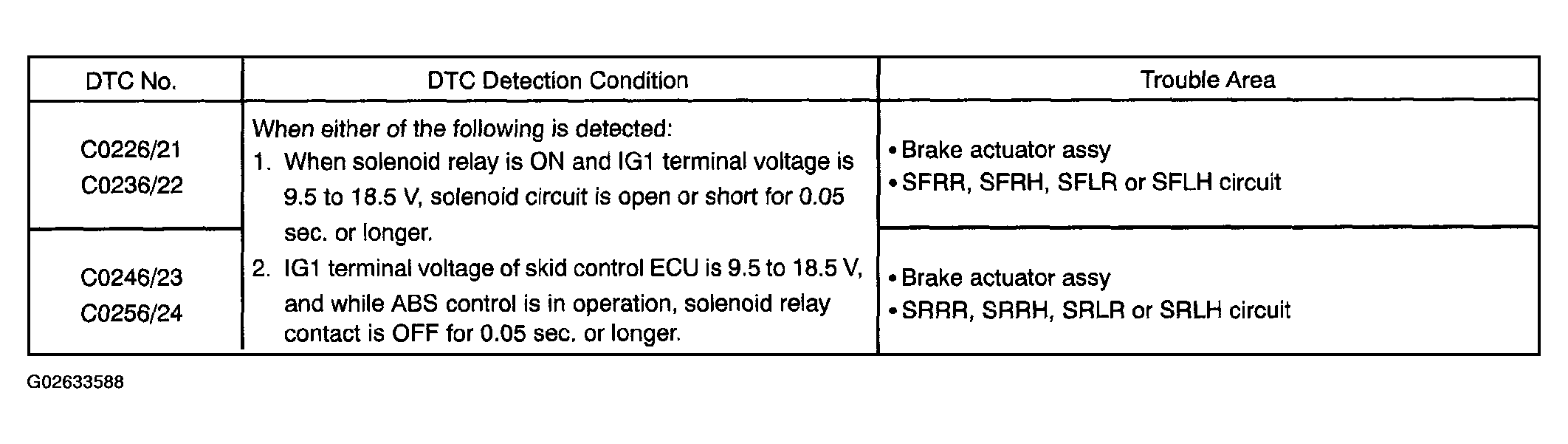

Fig 1: DTC Detecting Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• DTC No. C0226/21 is for right front solenoid valve.
• DTC No. C0236/22 is for left front solenoid valve.
• DTC No. C0246/23 is for right rear solenoid valve.
• DTC No. C0256/24 is for left rear solenoid valve.
