DTC C0210/33, C0215/34, C1238/38, C1239/39: Right/Left Rear Speed Sensor Circuit & Foreign Matter Is Attached On Tip Of Right/Left Rear Sensor: Wiring Diagram

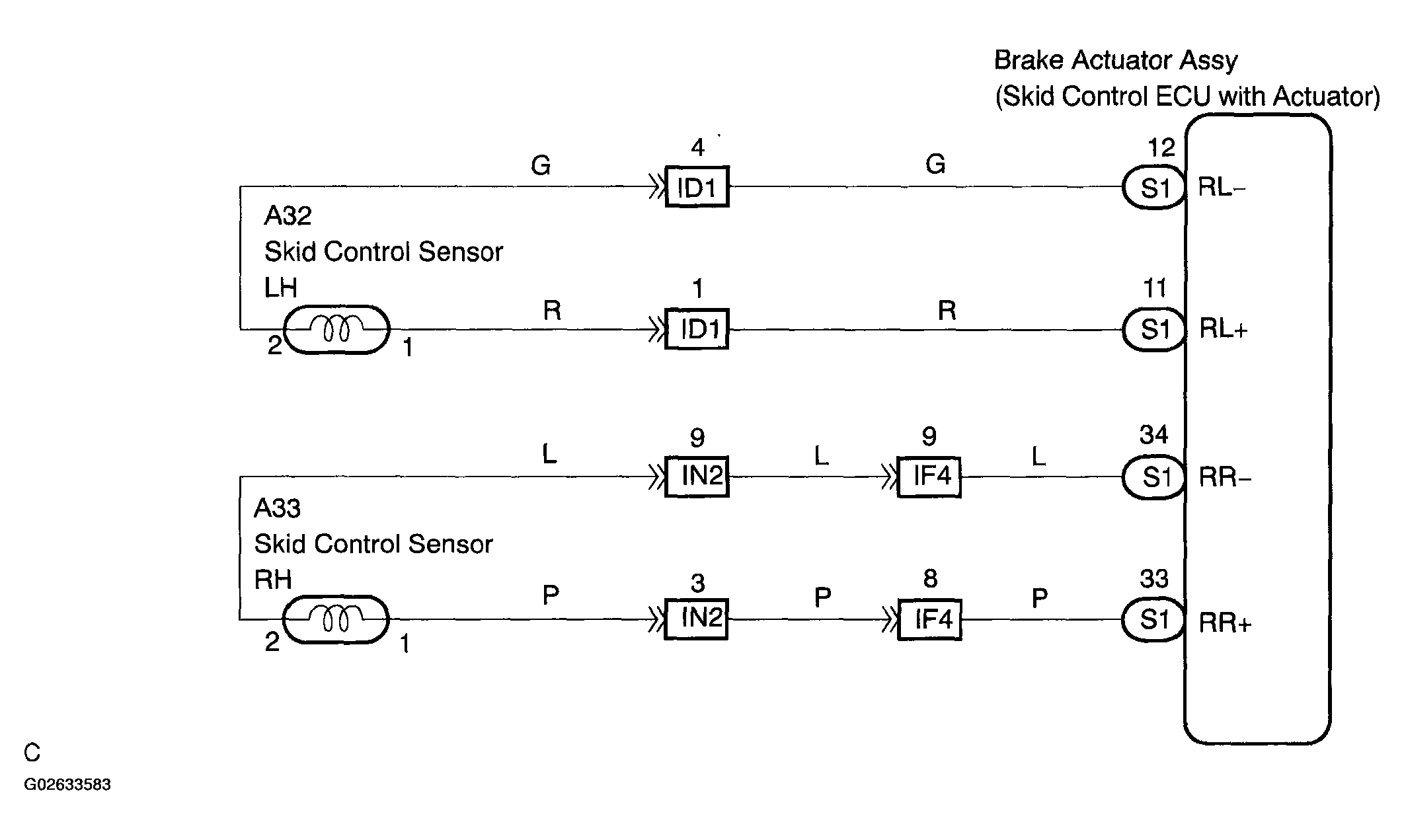

Fig 1: Rear Speed Sensor Circuit Wiring Diagram
G02633583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
