DTC C0200/31, C0205/32, C1235/35, C1236/36: Right/Left Front Speed Sensor Circuit & Foreign Matter Is Attached On Tip Of Right/Left Front Sensor: Wiring Diagram

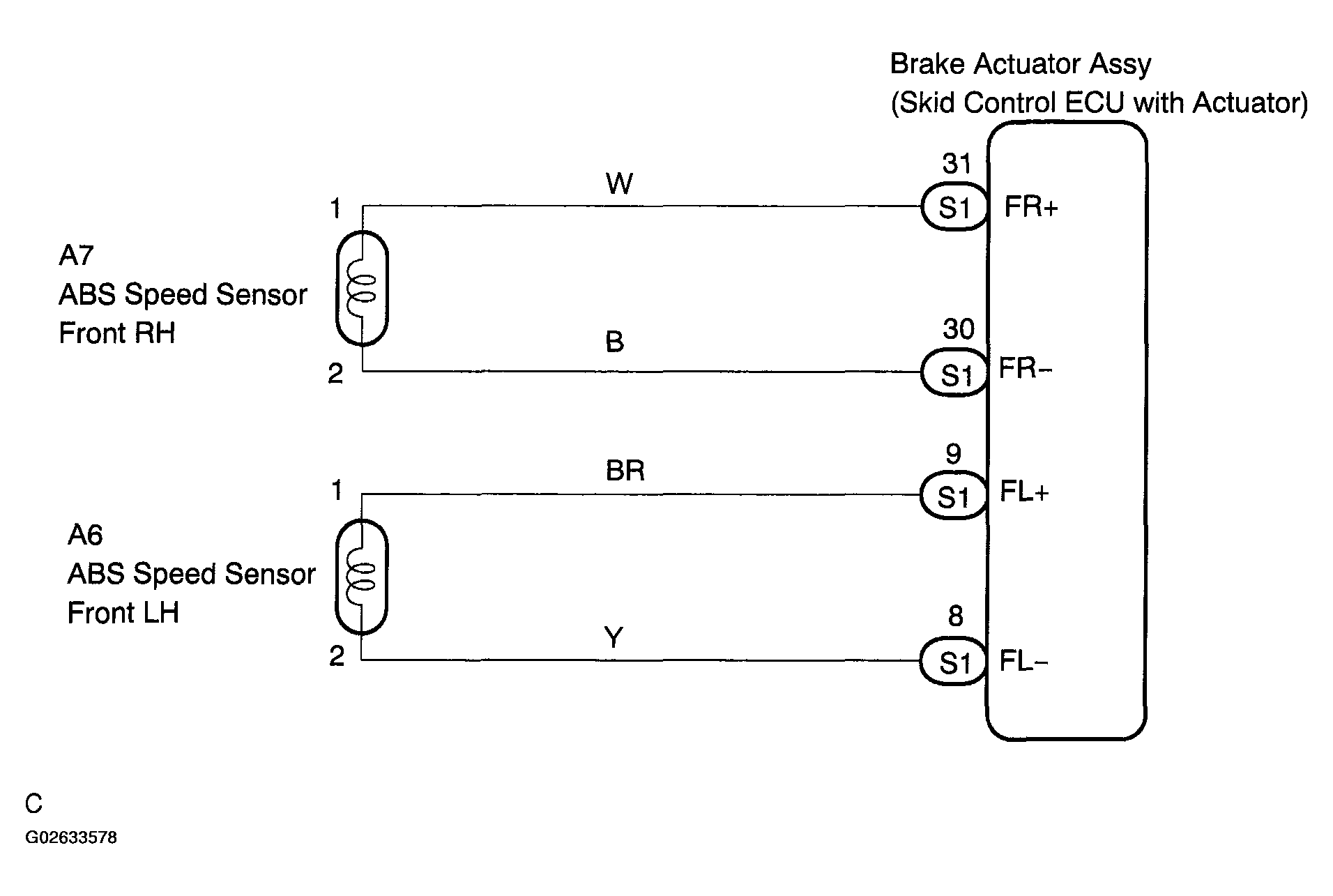

Fig 1: Front Speed Sensor Circuit Wiring Diagram
G02633578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
