Brakes - Abs With EBD (BOSCH Made) - Diagnostics: Location

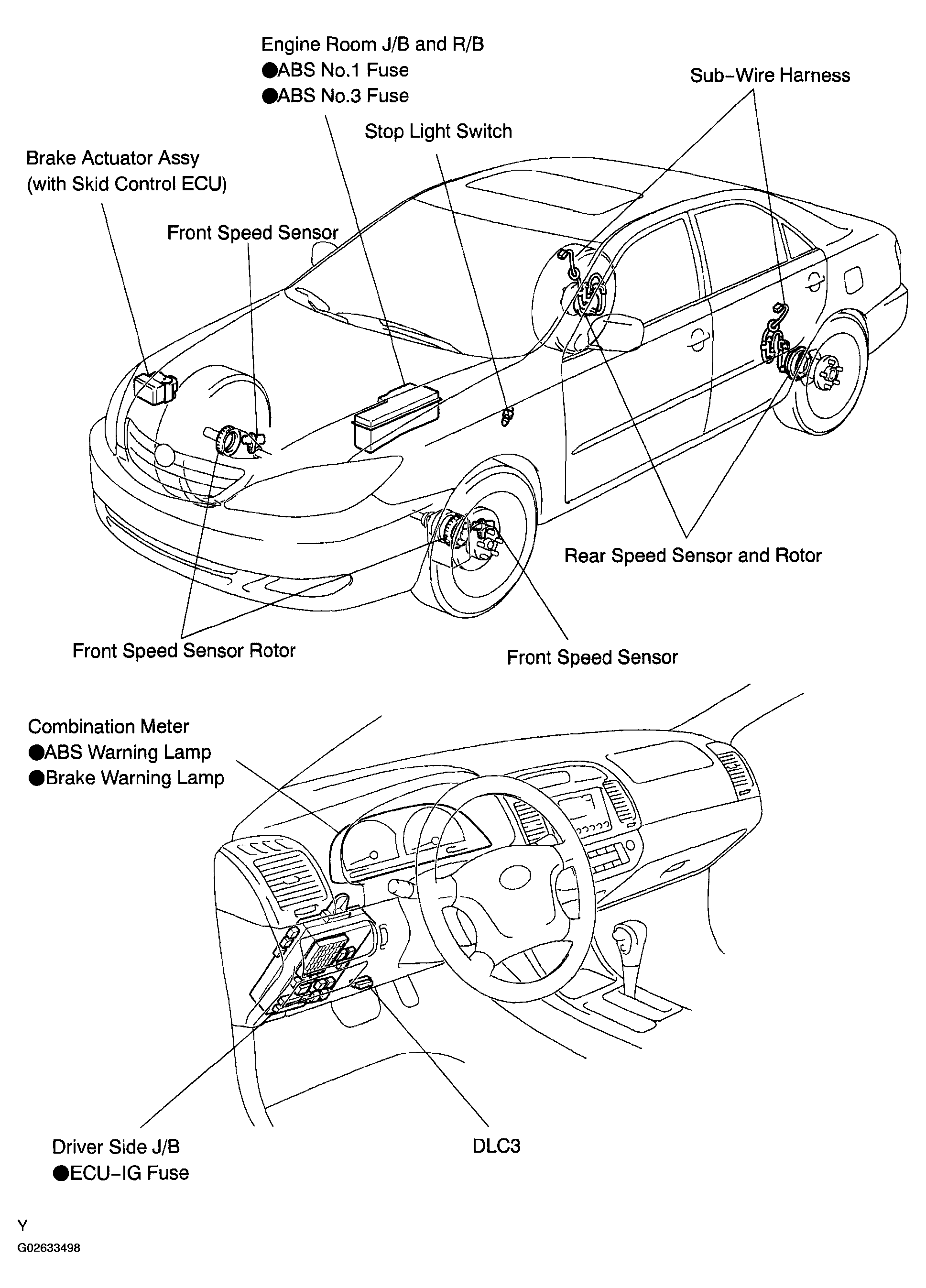

Fig 1: Identifying ABS With EBD System Components (Bosch Made)

G02633498

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
