Circuit Description

This circuit recognizes brake operation by sending a stop light signal to the skid control ECU.

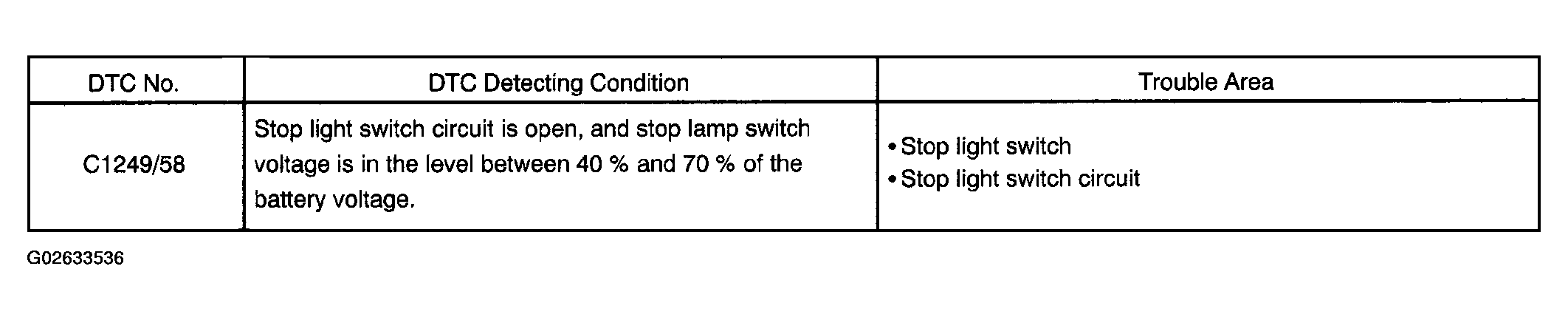

Fig 1: DTC Detecting Condition Chart

G02633536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
