DTC C0278/11: Open Or Short Circuit In Abs Solenoid Relay: Wiring Diagram

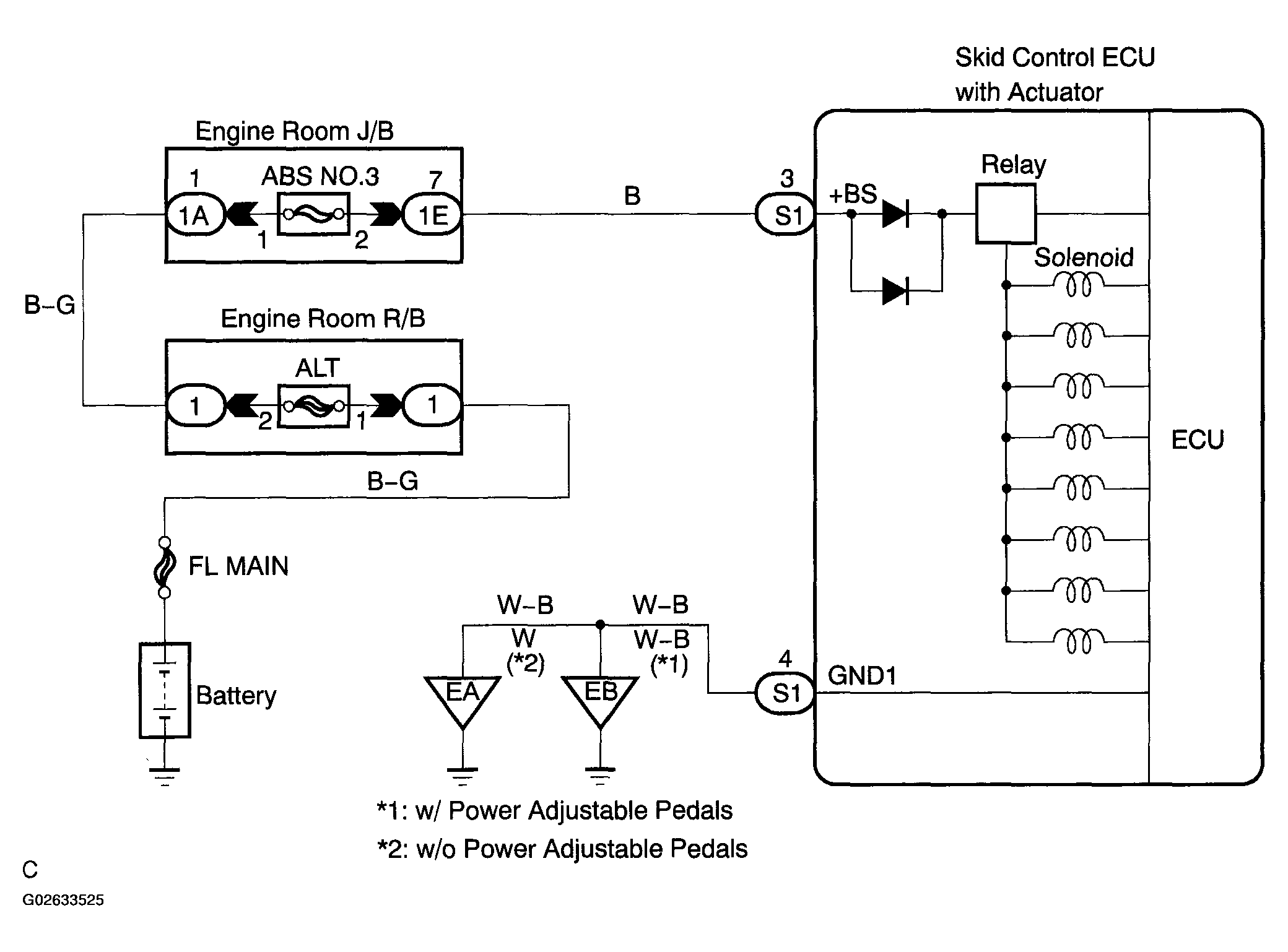

Fig 1: ABS Solenoid Relay Wiring Diagram

G02633525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
