DTC C0273/13: Open Or Short Circuit In Abs Motor Relay Circuit: Wiring Diagram

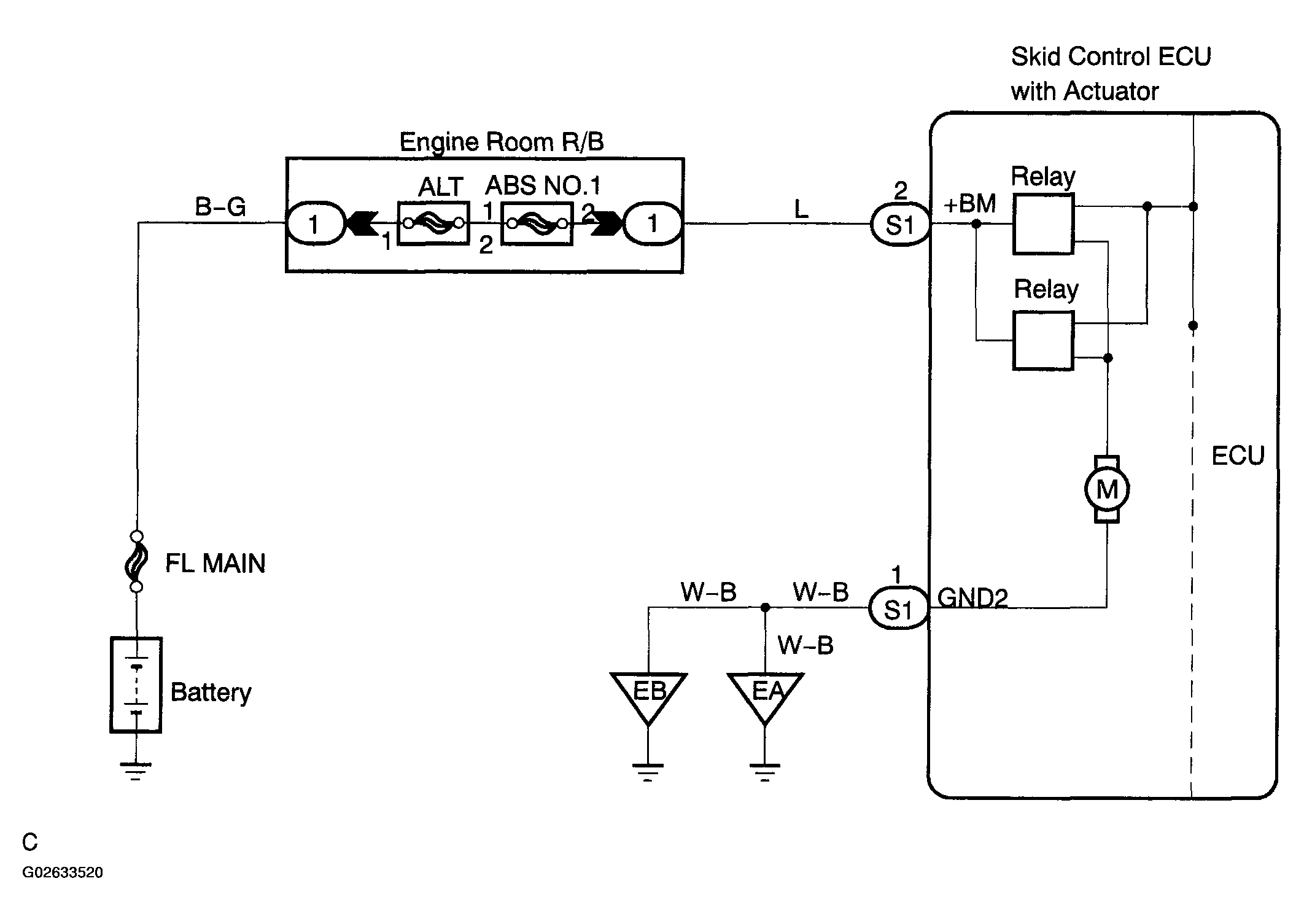

Fig 1: ABS Motor Relay Circuit Wiring Diagram

G02633520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
