DTC C0226/21, C0236/22, C0246/23, C0256/24 : SFR/SFL/SRR/SRL Solenoid Circuit: Wiring Diagram

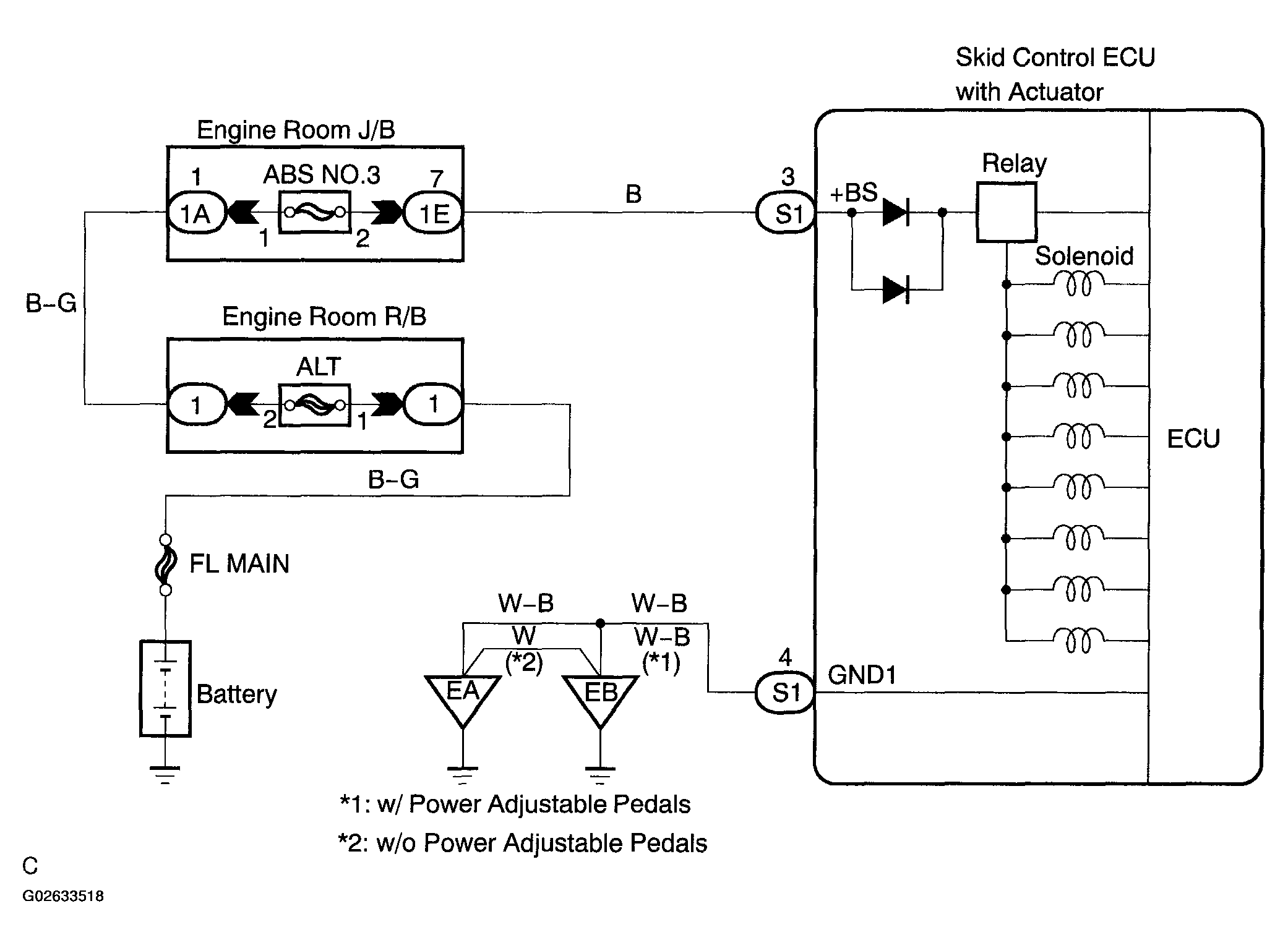

Fig 1: Solenoid Circuit Wiring Diagram

G02633518

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
