DTC C0200/31, C0205/32, C1330/35, C1331/36: Right/Left Front Speed Sensor & Foreign Matter Is Attached On Tip Of Right/Left Front Sensor: Wiring Diagram

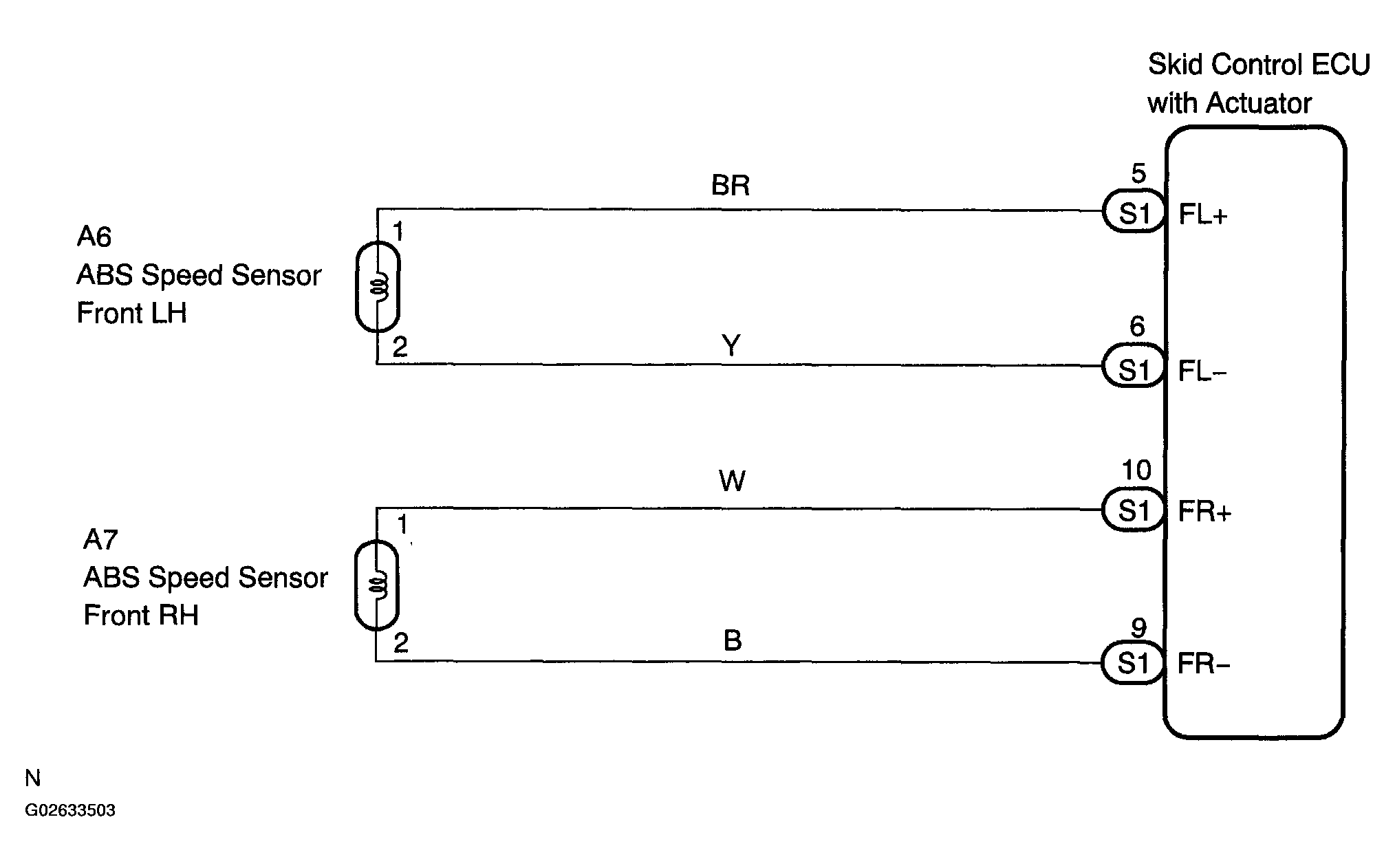

Fig 1: Front Speed Sensor Wiring Diagram
G02633503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
