Abs Warning Light Circuit (Does Not Light Up): Wiring Diagram

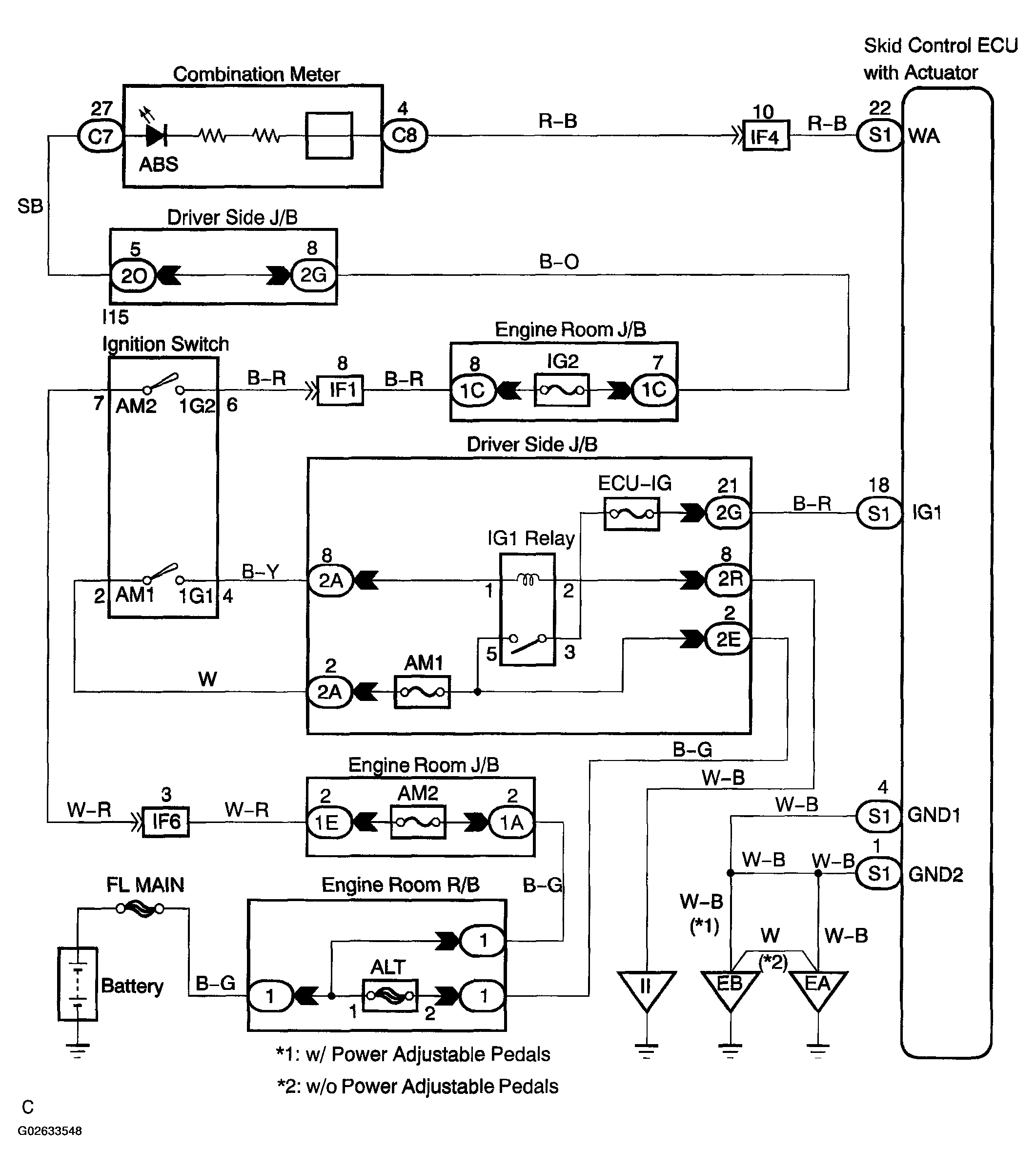

Fig 1: ABS Warning Light Circuit (Does Not Light Up) Wiring Diagram

G02633548

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
