Front Seat Outer Belt ASSY LH With PRETENSIONER: Replacement

CAUTION:

Removal of the seat belt pretensioner must be started at least 90 seconds after the ignition switch is turned off and the negative (-) terminal cable is disconnected from the battery.
Carefully read the notices for the "pretensioner" in the SRS airbag system section and the front seat outer belt section (see PRECAUTION ).

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
COMPONENTS: SEE COMPONENTS .

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE PRECAUTION )
REMOVE FRONT DOOR SCUFF PLATE LH (SEE REPLACEMENT )
REMOVE REAR DOOR SCUFF PLATE LH (SEE REPLACEMENT )
REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH (SEE REPLACEMENT )
REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (SEE REPLACEMENT )
REMOVE CENTER PILLAR GARNISH LOWER LH (SEE REPLACEMENT )
REMOVE LAP BELT OUTER ANCHOR COVER
1. Disengage the 2 claws and remove the lap belt outer anchor cover.

  Fig 1: Disengaging Claws & Remove Lap Belt Outer Anchor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FRONT SEAT OUTER BELT ASSY LH
1. Remove the bolt and disconnect the front seat outer belt assy LH.

  Fig 2: Removing Bolt & Disconnect Front Seat Outer Belt Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CENTER PILLAR GARNISH LH (SEE REPLACEMENT )
REMOVE FRONT SEAT OUTER BELT ASSY LH
1. Remove the nut.

  Fig 3: Removing Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

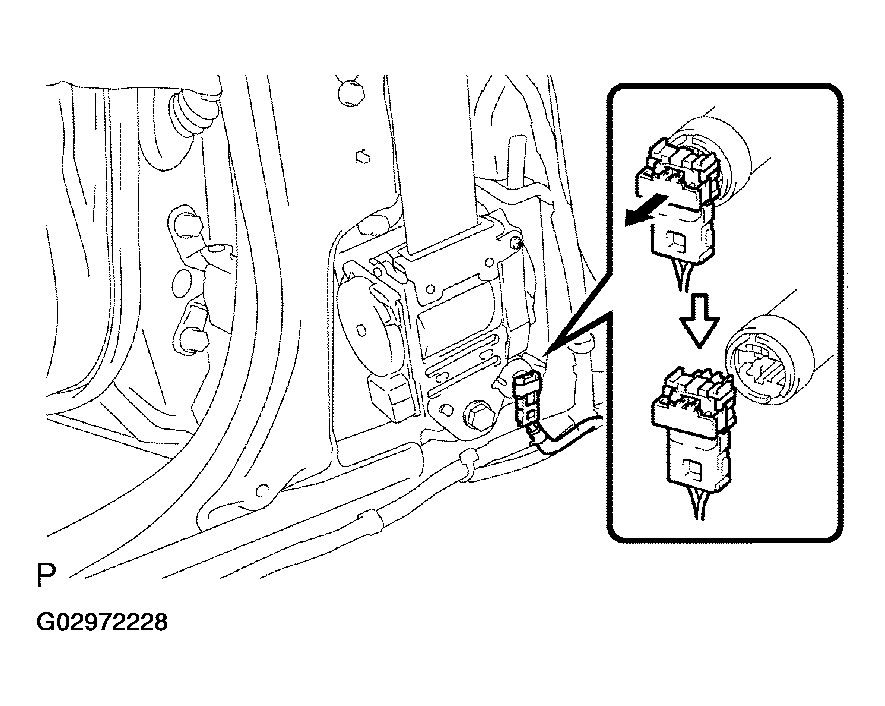

2. Disconnect the pretensioner connector, as shown in the illustration.

  Fig 4: Disconnecting Pretensioner Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

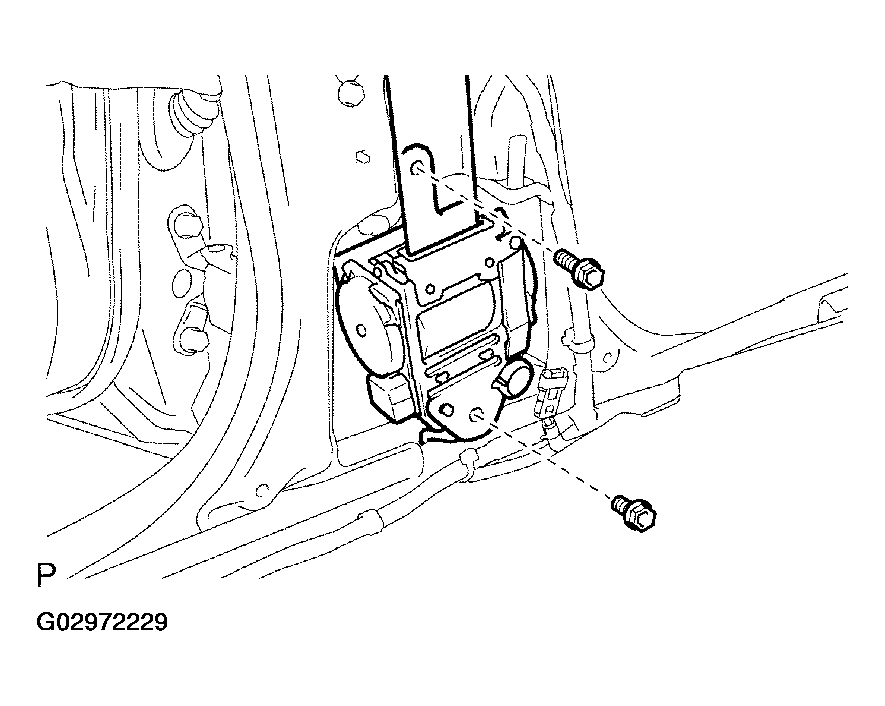

3. Remove the 2 bolts and the front seat outer belt assy LH.

  Fig 5: Removing Bolts & Front Seat Outer Belt Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT OUTER BELT ASSY LH
NOTE: Do not disassemble the retractor.

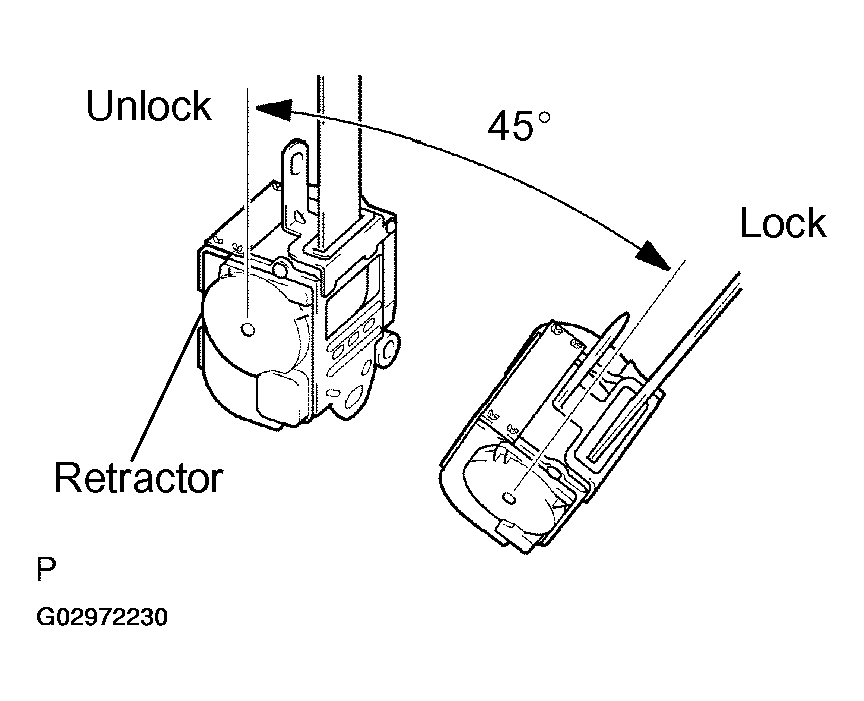

1. Check the degree of inclination required to lock the retractor.
  1. When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.
    If operation is not as specified, replace the outer belt assy.

    Fig 6: Checking Degree Of Inclination Required To Lock Retractor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

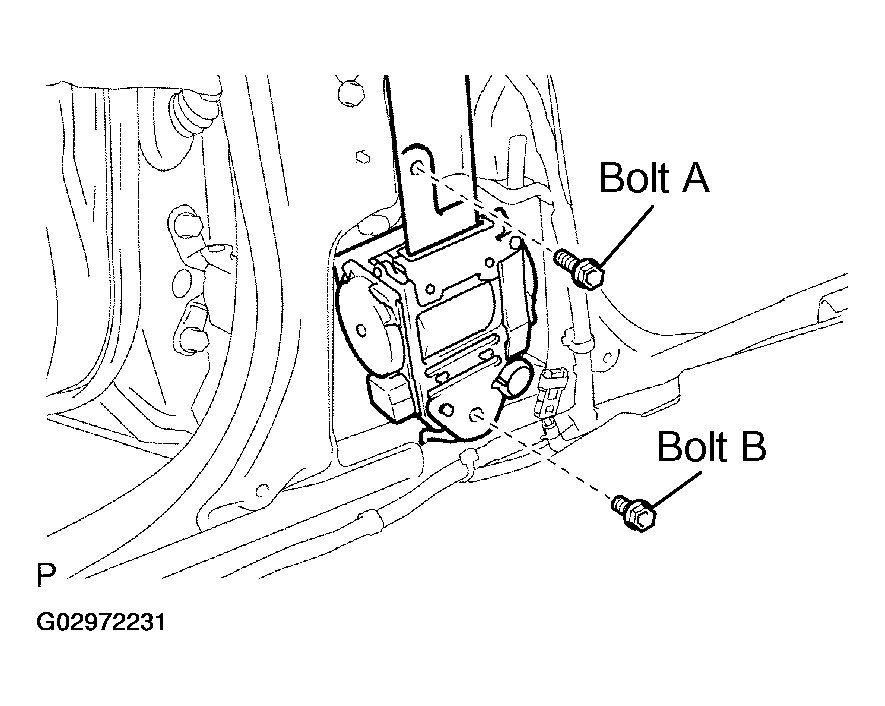

2. Install the front seat outer belt assy LH with the 2 bolts.
  Torque:

  5.5 N.m (56 kgf.cm, 49 in.lbf) (Bolt A)

  42 N.m (428 kgf.cm, 31 ft.lbf) (Bolt B)

  Fig 7: Installing Front Seat Outer Belt Assy LH Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

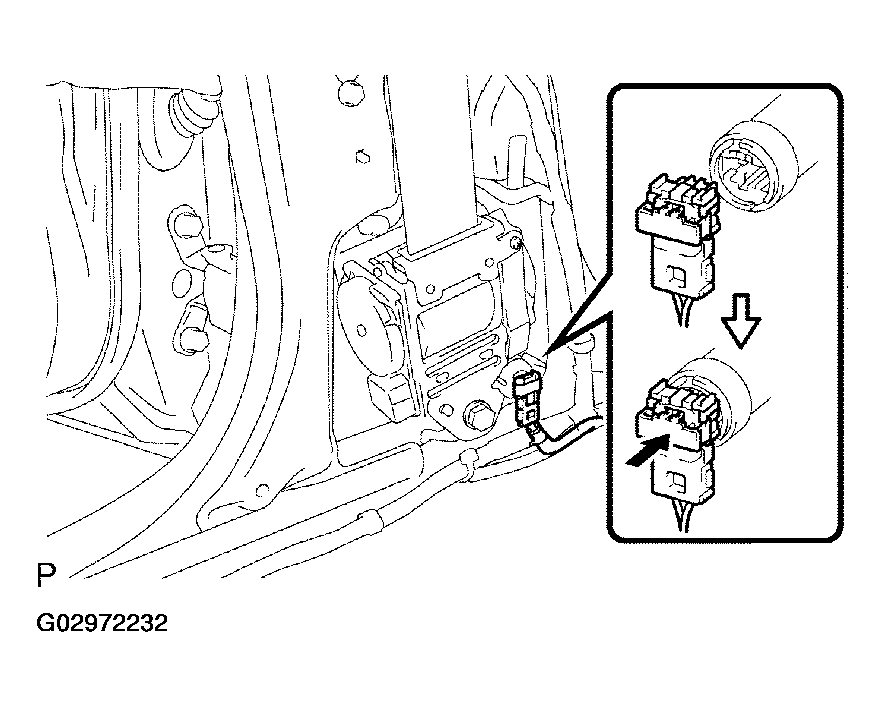

3. Connect the pretensioner connector, as shown in the illustration.

  Fig 8: Connecting Pretensioner Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the nut.
  Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

  Fig 9: Installing Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT OUTER BELT ASSY LH
1. Install the front seat outer belt assy with the bolt.
  Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
2. Check if the ELR locks.

  Fig 10: Installing Front Seat Outer Belt Assy Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: The check should be performed with the outer belt assy installed.
  1. With the belt assy installed, check that the belt locks when it is pulled out quickly.
  If operation is not as specified, replace the outer belt assy.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION (SEE INITIALIZATION )
INSPECT SRS WARNING LIGHT (SEE DIAGNOSIS SYSTEM )
