Combination Meter ASSY: Overhaul

HINT:

COMPONENTS: See COMPONENTS .
Installation is in the reverse order of removal.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (SEE PRECAUTION )
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (SEE REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PLATE (W/O SMART KEY SYSTEM)

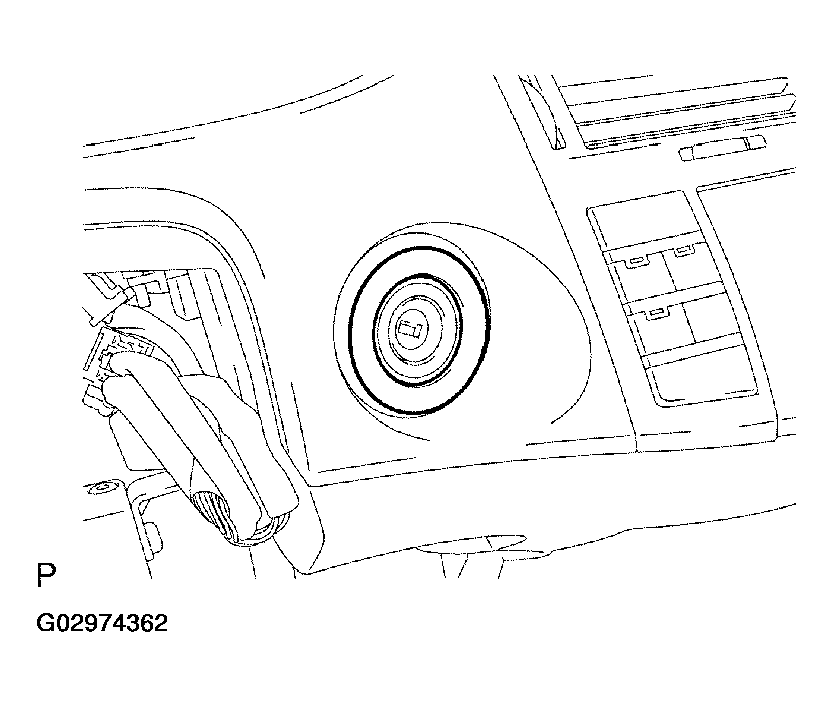

1. Remove the instrument panel finish plate.

  Fig 1: Removing Instrument Panel Finish Plate (W/O Smart Key System)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL SUB-ASSY

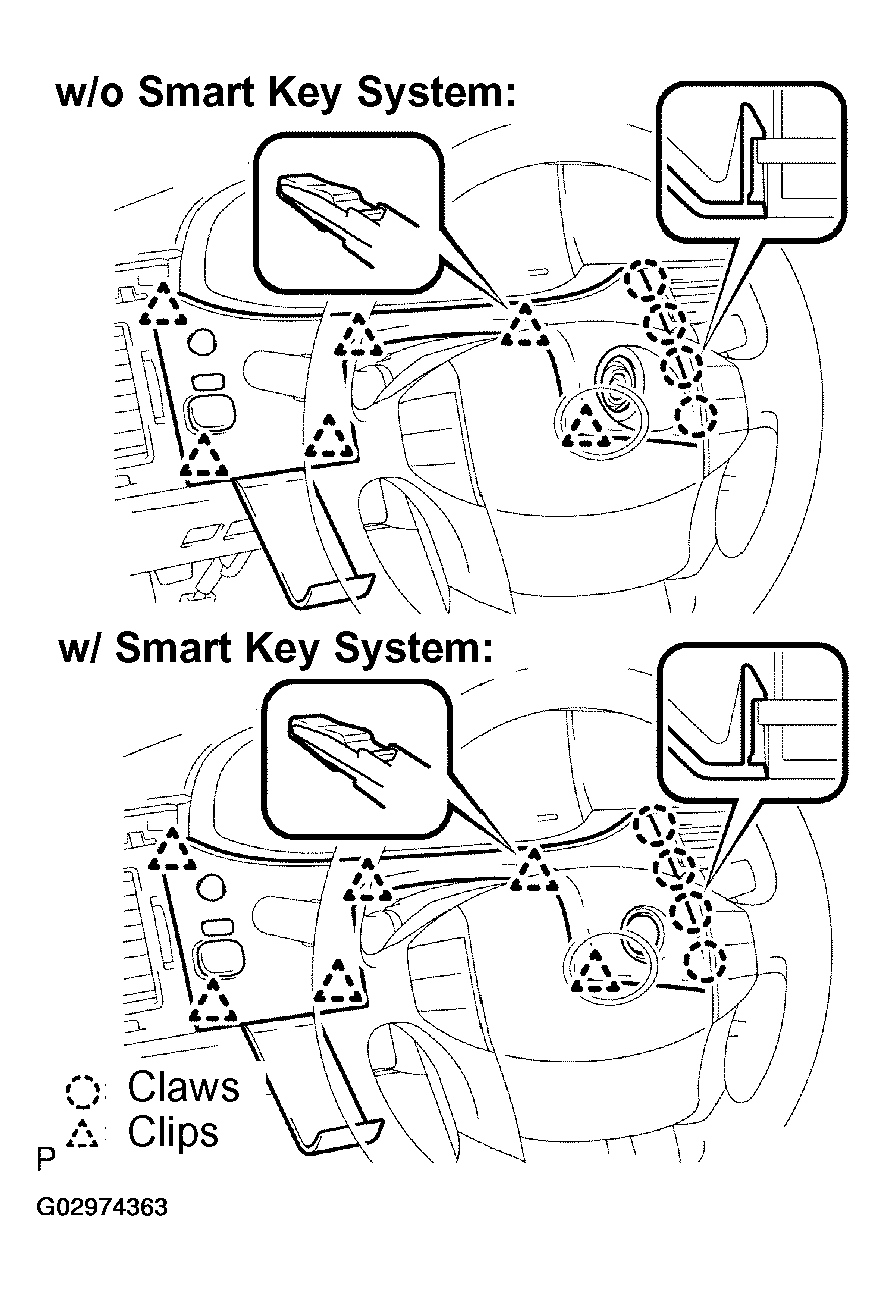

1. Using a molding remover, disengage the 4 claws and 6 clips then remove the instrument panel sub-assy.

  Fig 2: Using A Molding Remover, Disengage Claws & Clips Then Remove Instrument Panel Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY

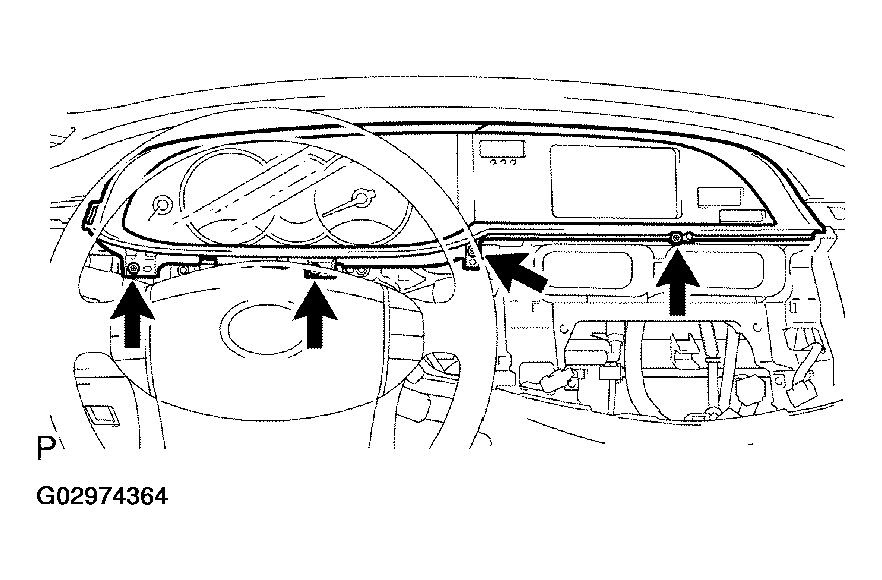

1. Remove the 4 screws.

  Fig 3: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

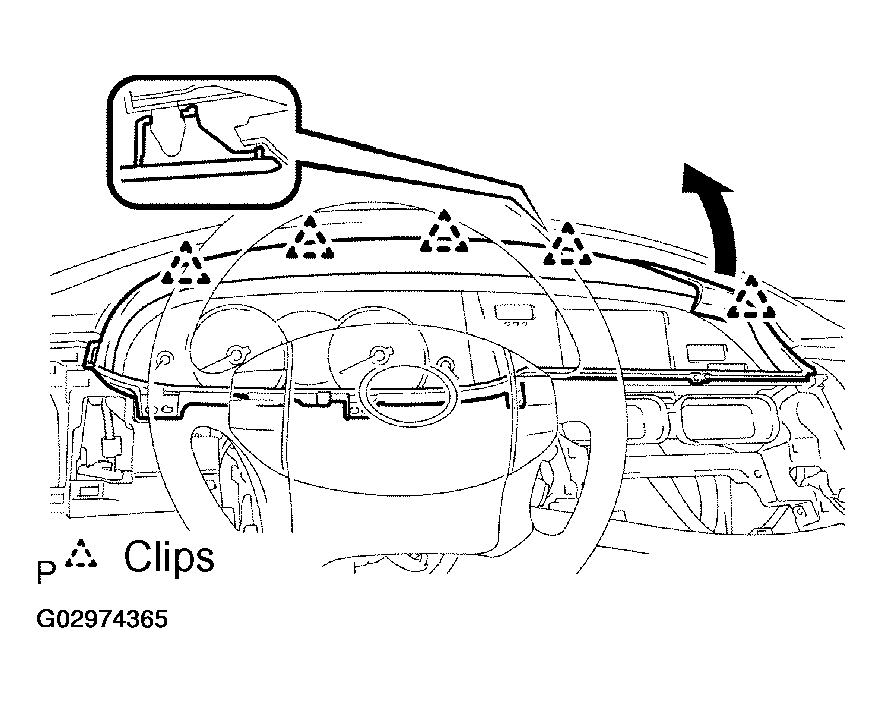

2. Using a molding remover, disengage the 5 clips and remove the instrument cluster finish panel sub-assy.

  Fig 4: Disengaging Clips & Removing Instrument Cluster Finish Panel Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER ASSY

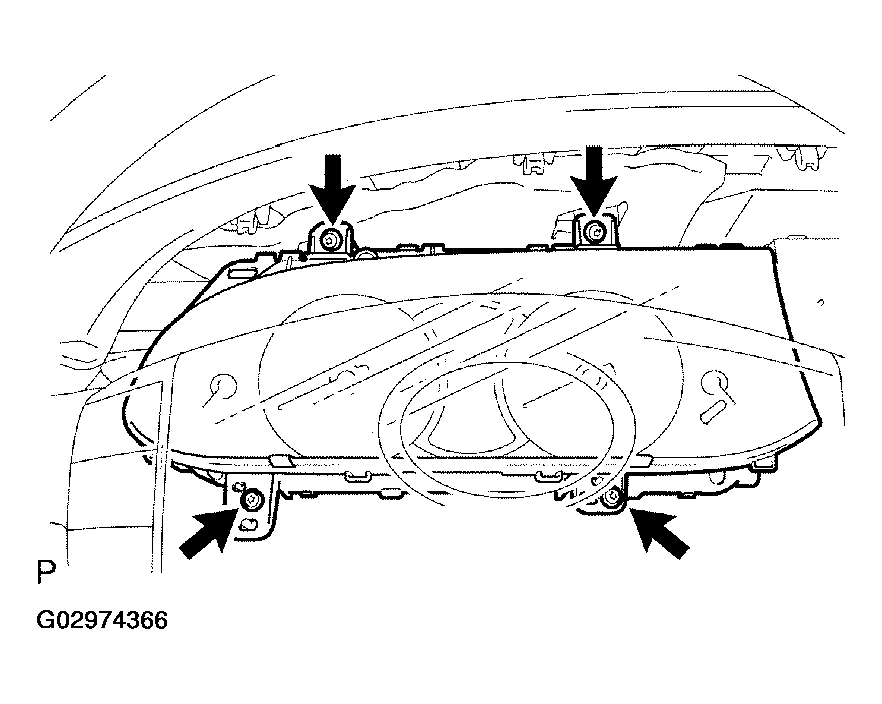

1. Remove the 4 screws.
2. Pull out the combination meter assy, then disconnect the connectors.

  Fig 5: Removing Combination Meter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS

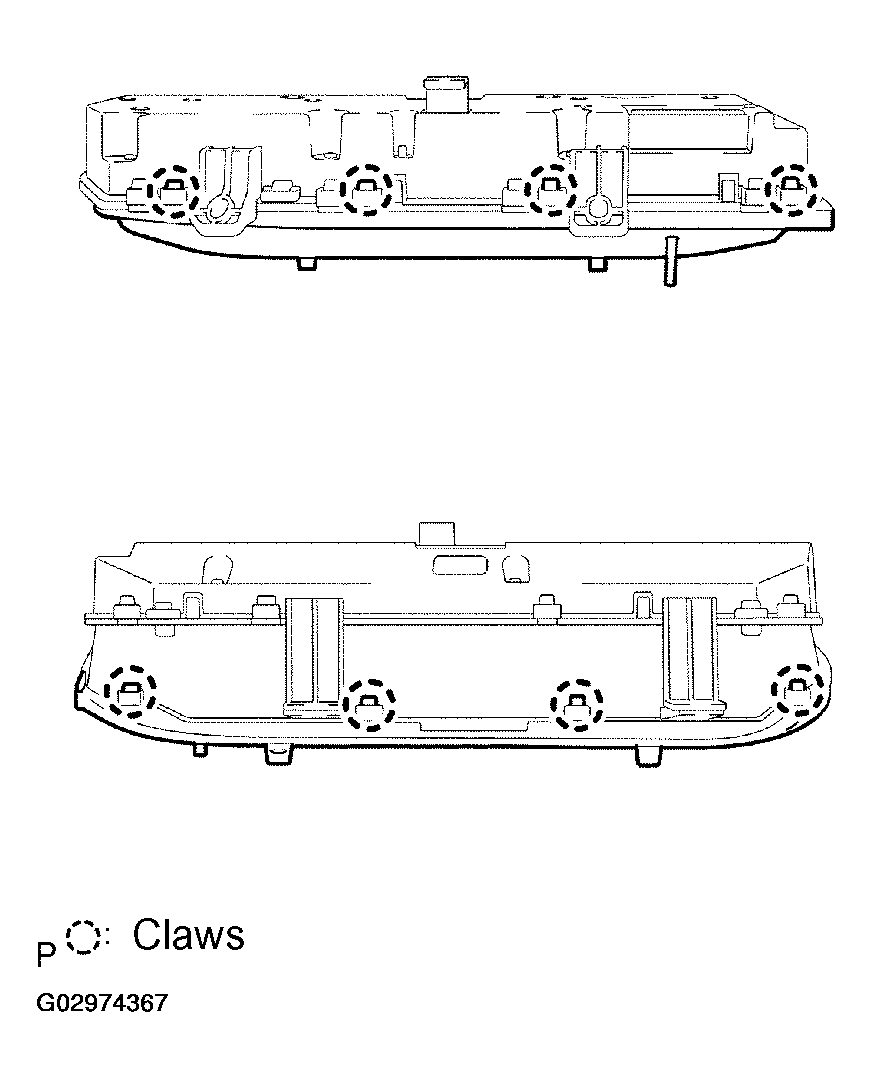

1. Disengage the 8 claws and remove the combination meter glass.

  Fig 6: Disengage Claws & Remove Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION (SEE INITIALIZATION )
Some systems need initialization when disconnecting the cable from the negative battery terminal.
