Front Drive Shaft: Components

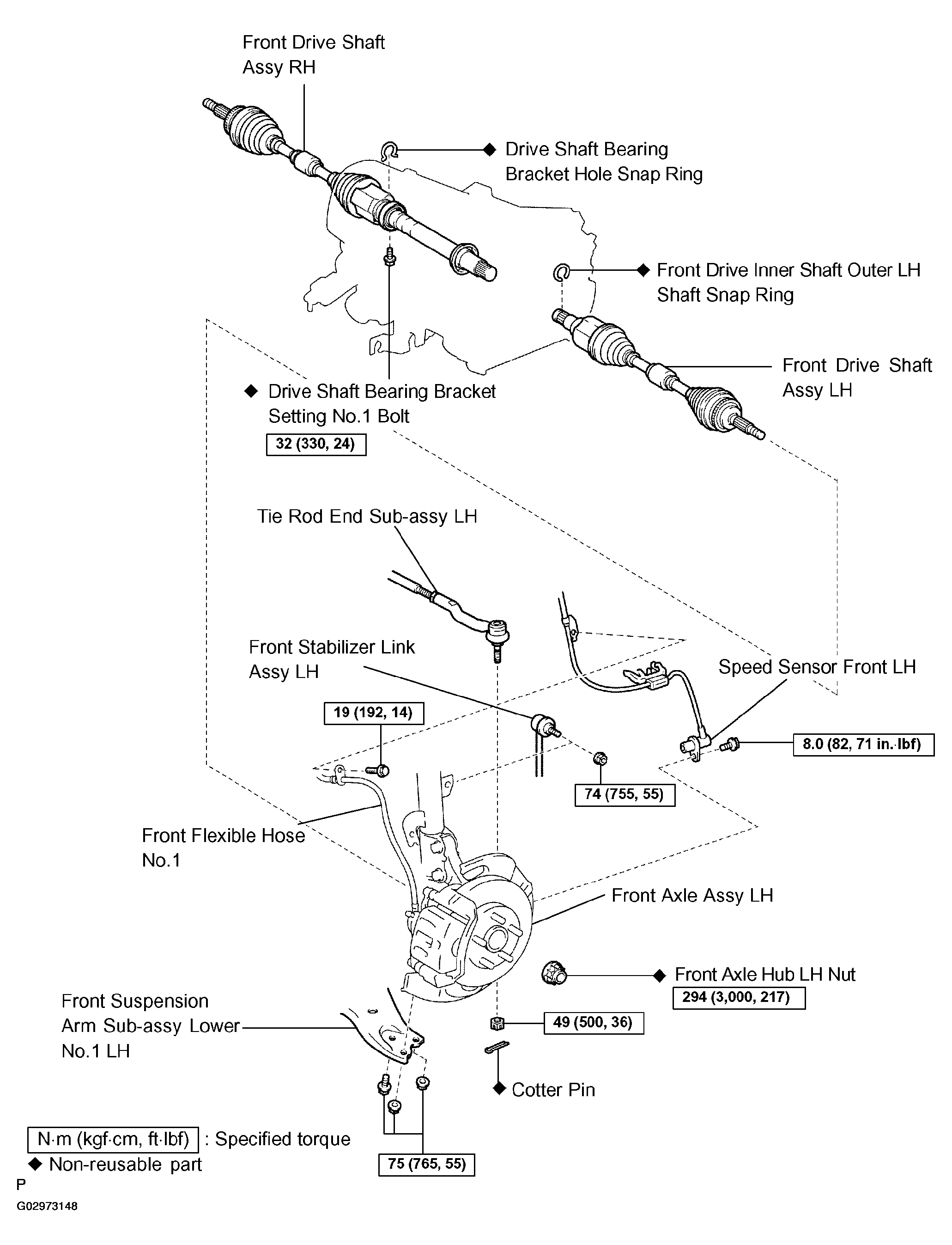

Fig 1: Identifying Front Drive Shaft Components
G02973148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

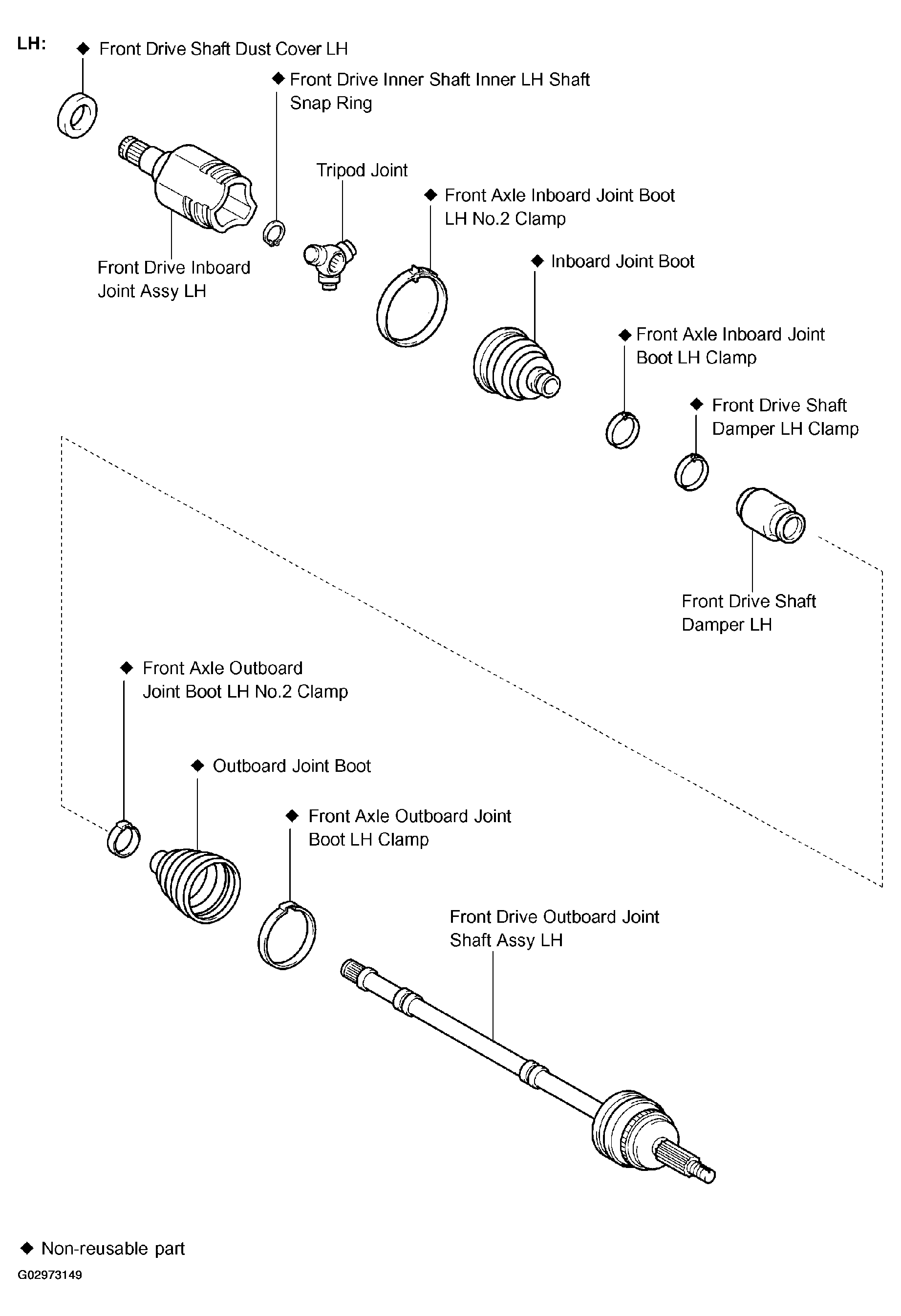

Fig 2: Exploded View Of Front Drive Shaft (LH)
G02973149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

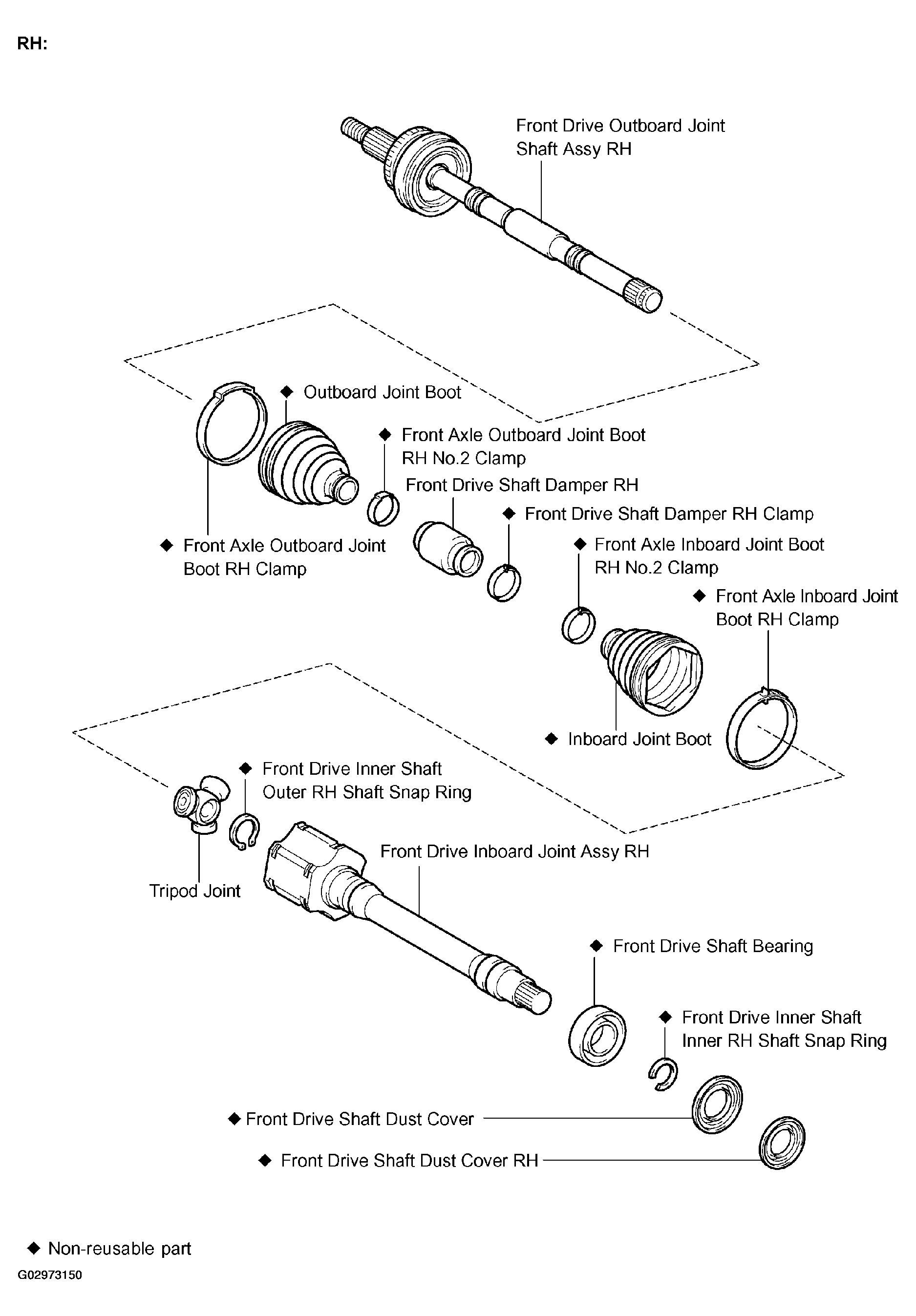

Fig 3: Exploded View Of Front Drive Shaft (RH)
G02973150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
