Front Axle Hub Sub-ASSY LH: Components

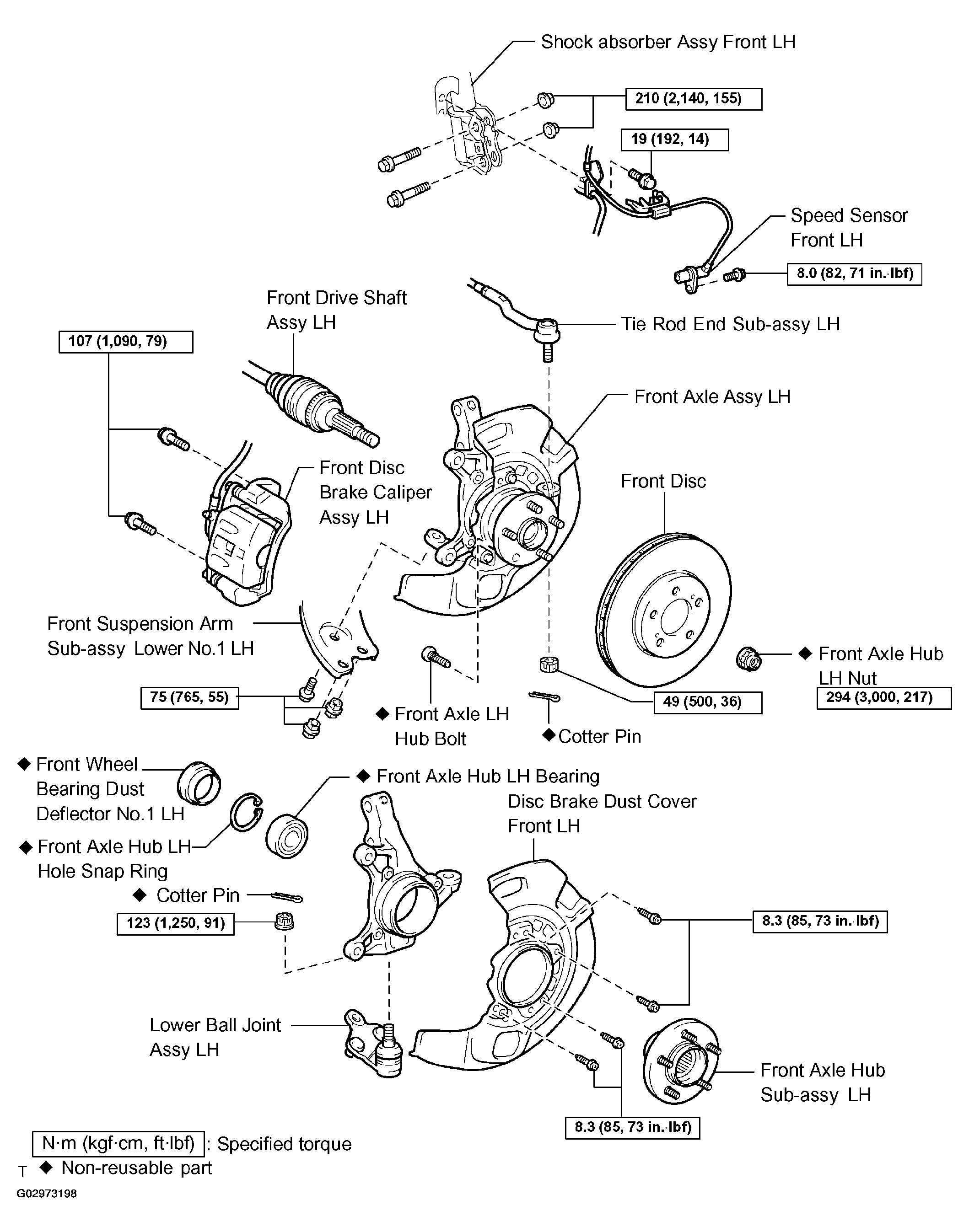

Fig 1: Identifying Front Axle Hub Sub-Assy LH Components

G02973198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
