VSC Warning Light Circuit (Remains On): Wiring Diagram

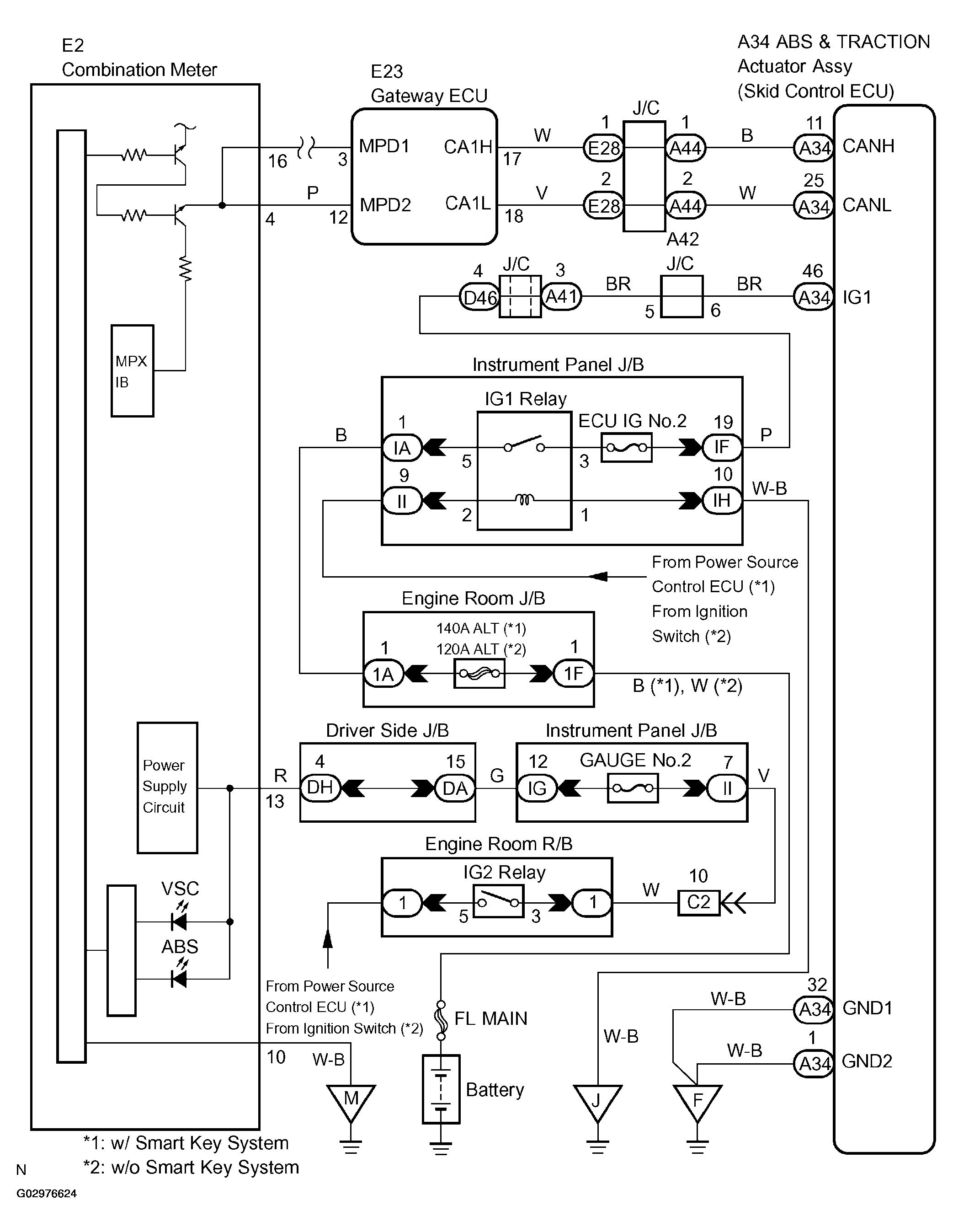

Fig 1: VSC Warning Light Circuit Diagram

G02976624

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
