TC And Cg Terminal Circuit: Wiring Diagram

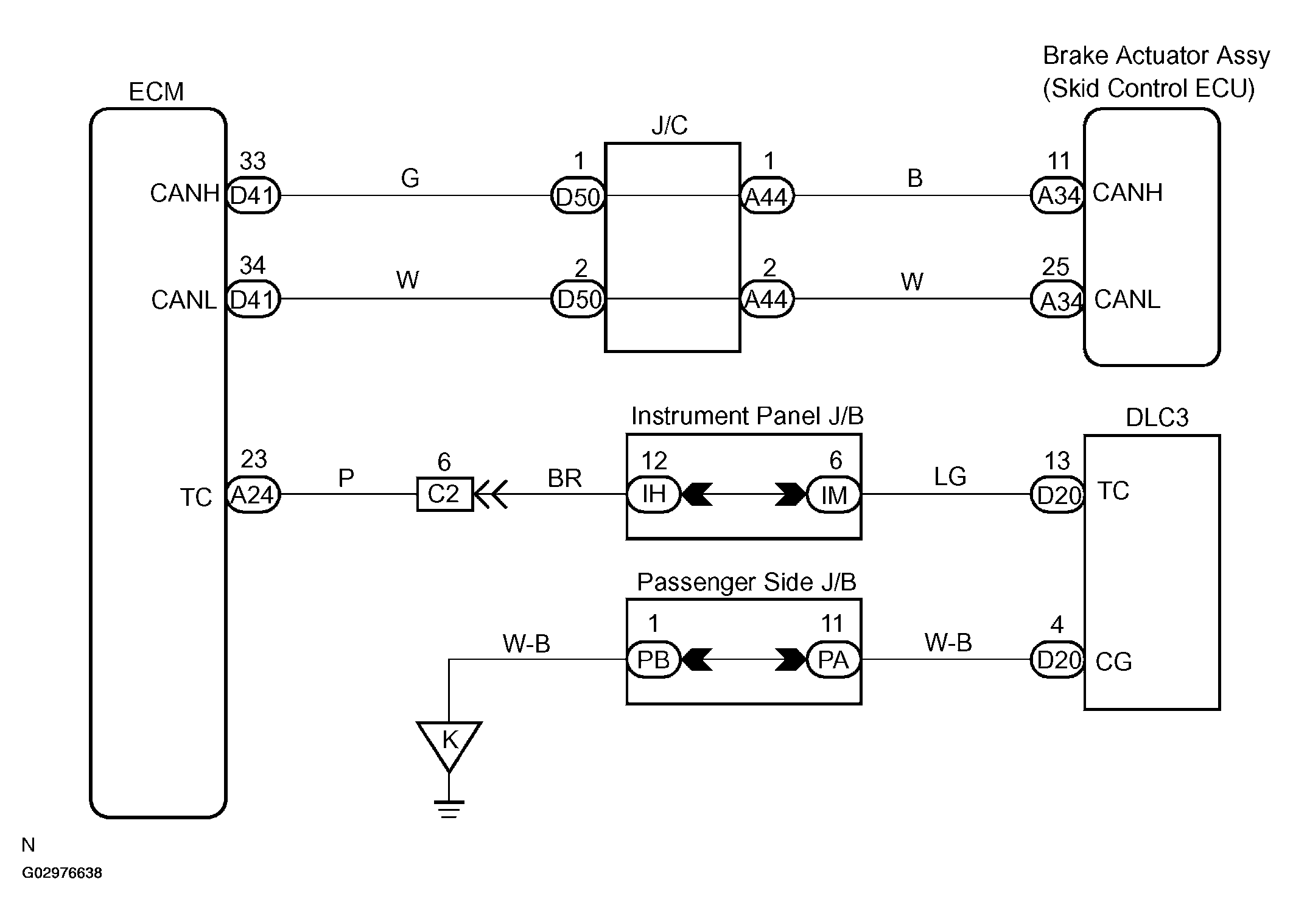

Fig 1: TC & CG Terminal Circuit Diagram

G02976638

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
