System Diagram

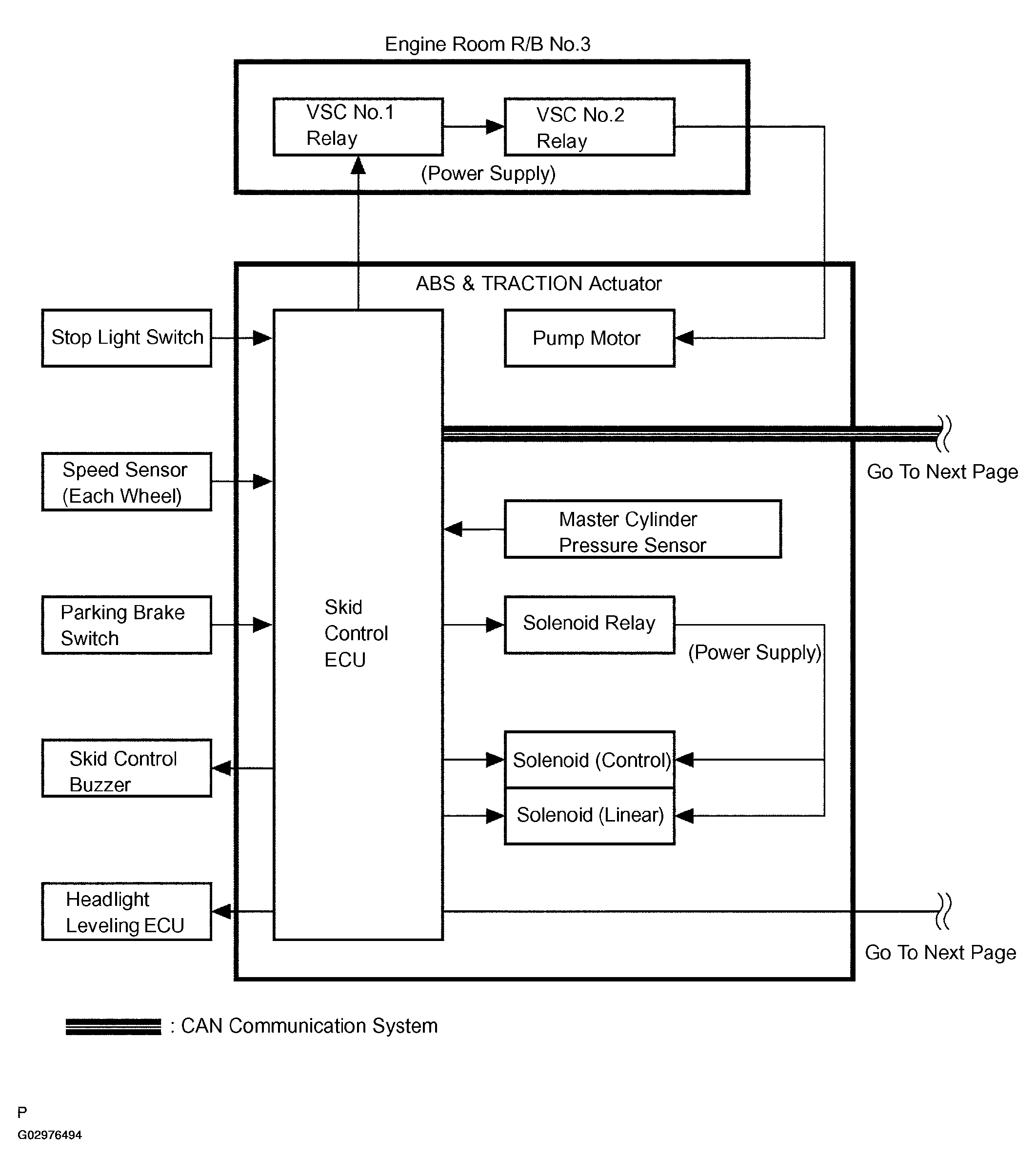

Fig 1: ABS With EBD & BA & TRAC & VSC System Diagram (1 Of 2)
G02976494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

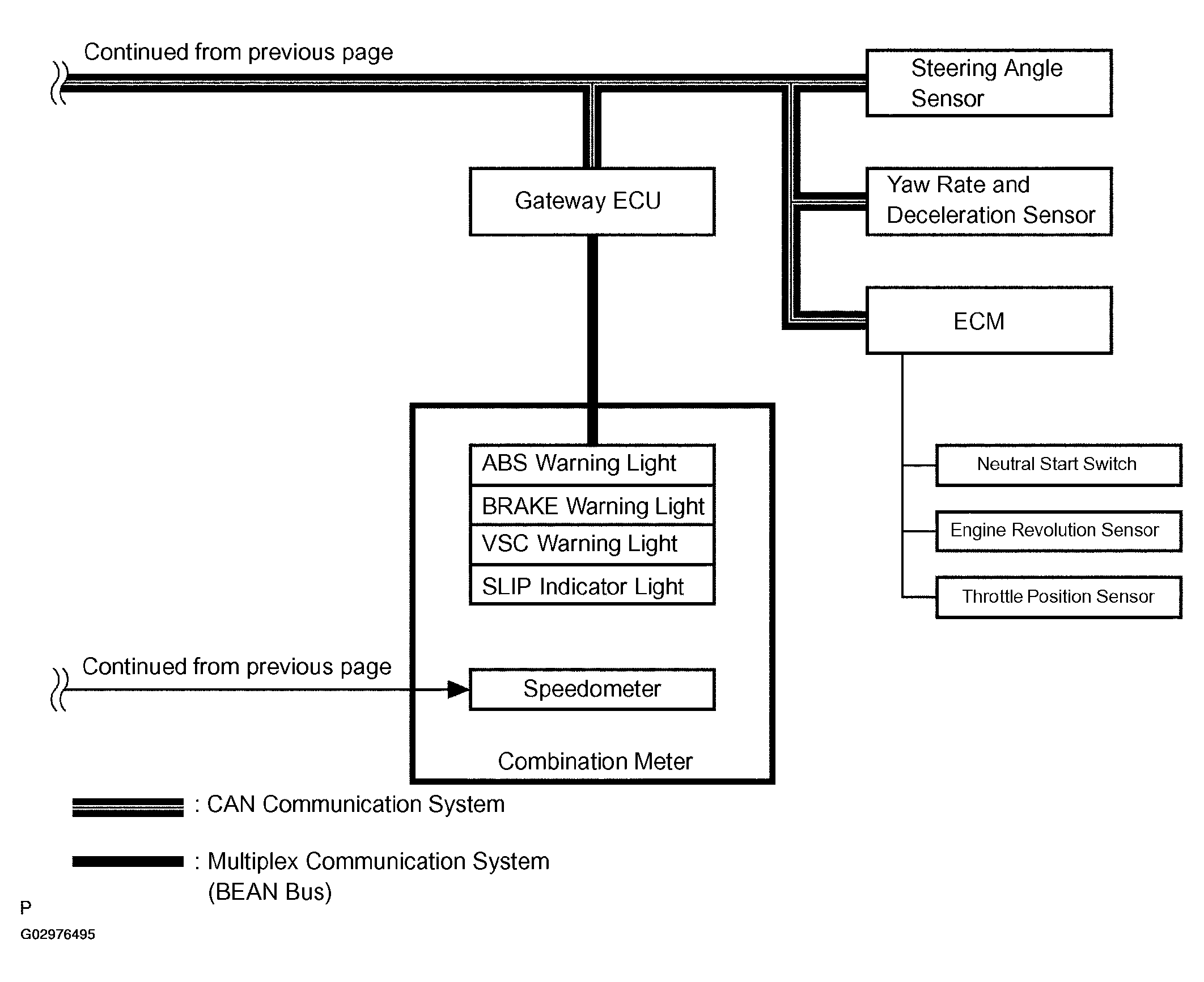

Fig 2: ABS With EBD & BA & TRAC & VSC System Diagram (2 Of 2)
G02976495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

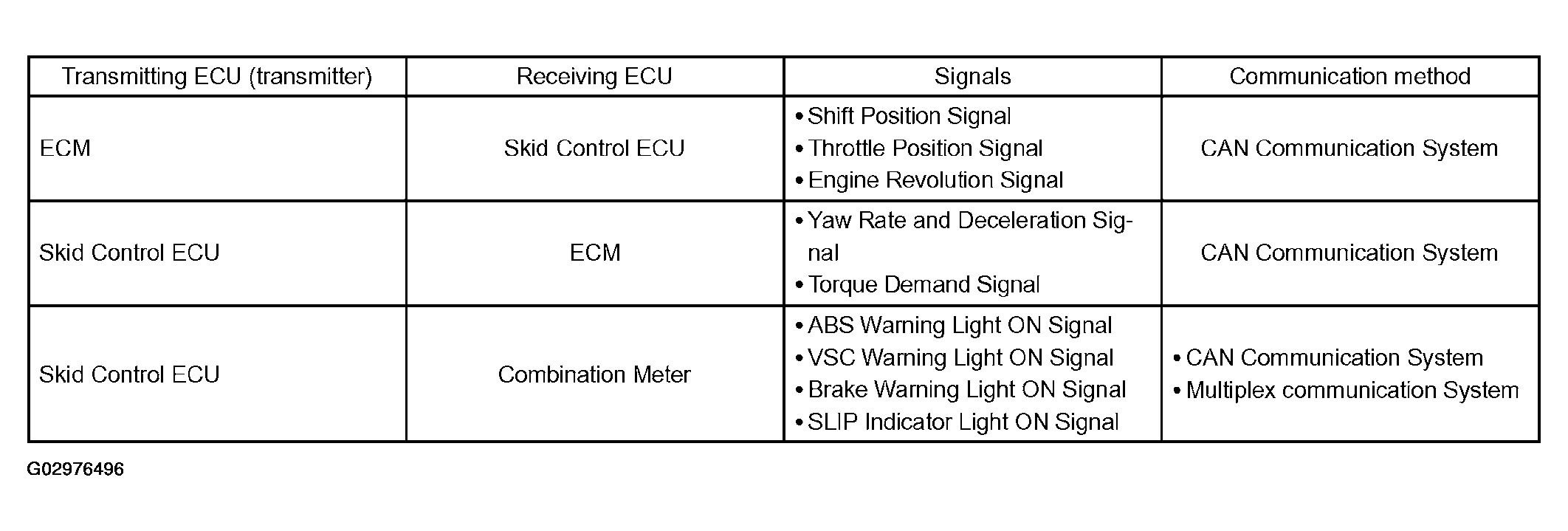

Fig 3: ABS With EBD & BA & TRAC & VSC System Reference Table
G02976496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
