Slip Indicator Light Circuit (Remains On): Wiring Diagram

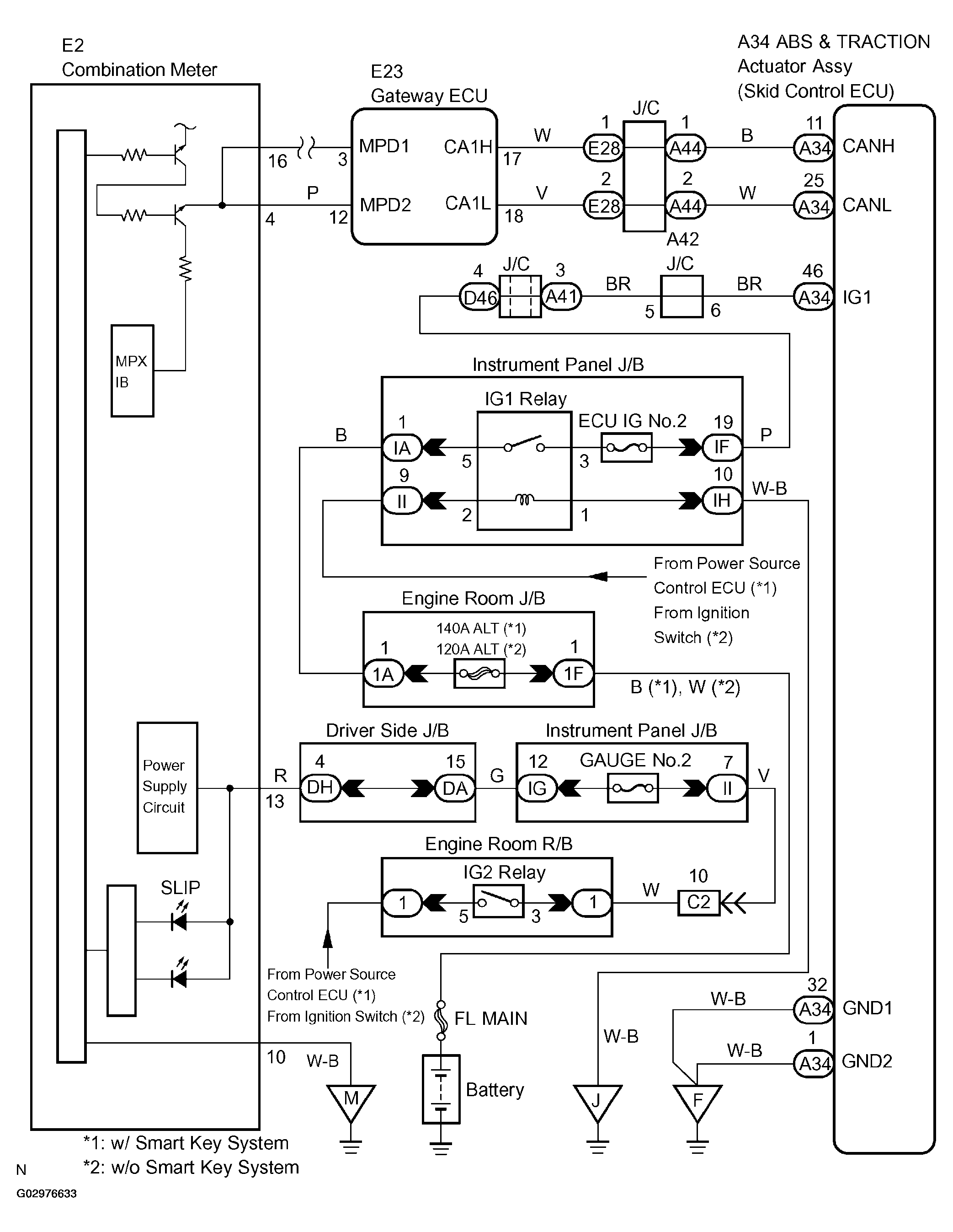

Fig 1: Slip Indicator Light Circuit Diagram

G02976633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
