Skid Control Buzzer Circuit: Wiring Diagram

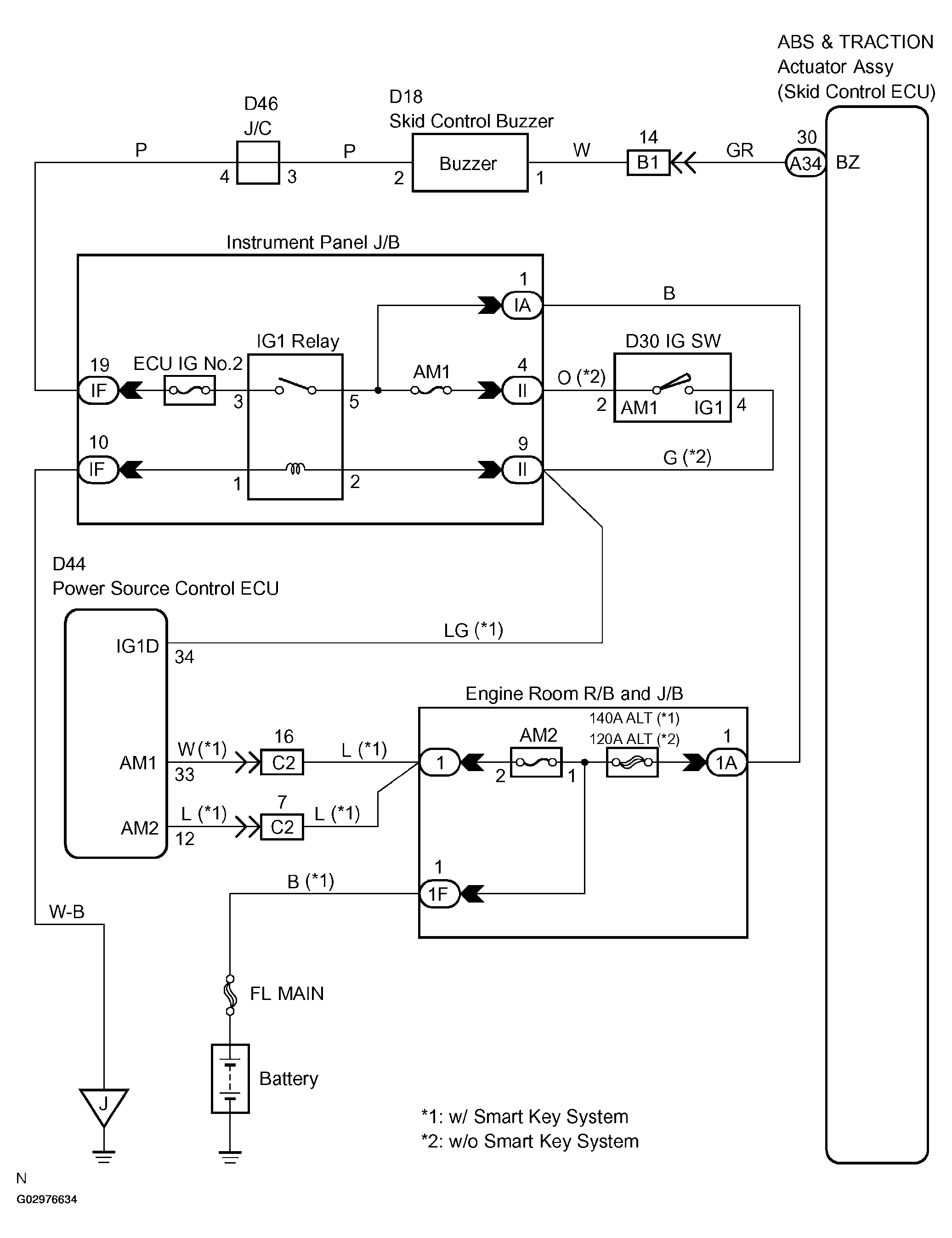

Fig 1: Skid Control Buzzer Circuit Diagram

G02976634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
