Data List/Active Test

HINT:

With the hand held tester connected to the DLC3 and the ignition switch on (IG), the ABS, TRAC and VSC data list can be displayed. Follow the prompts on the hand held tester screen to access the DATA LIST.

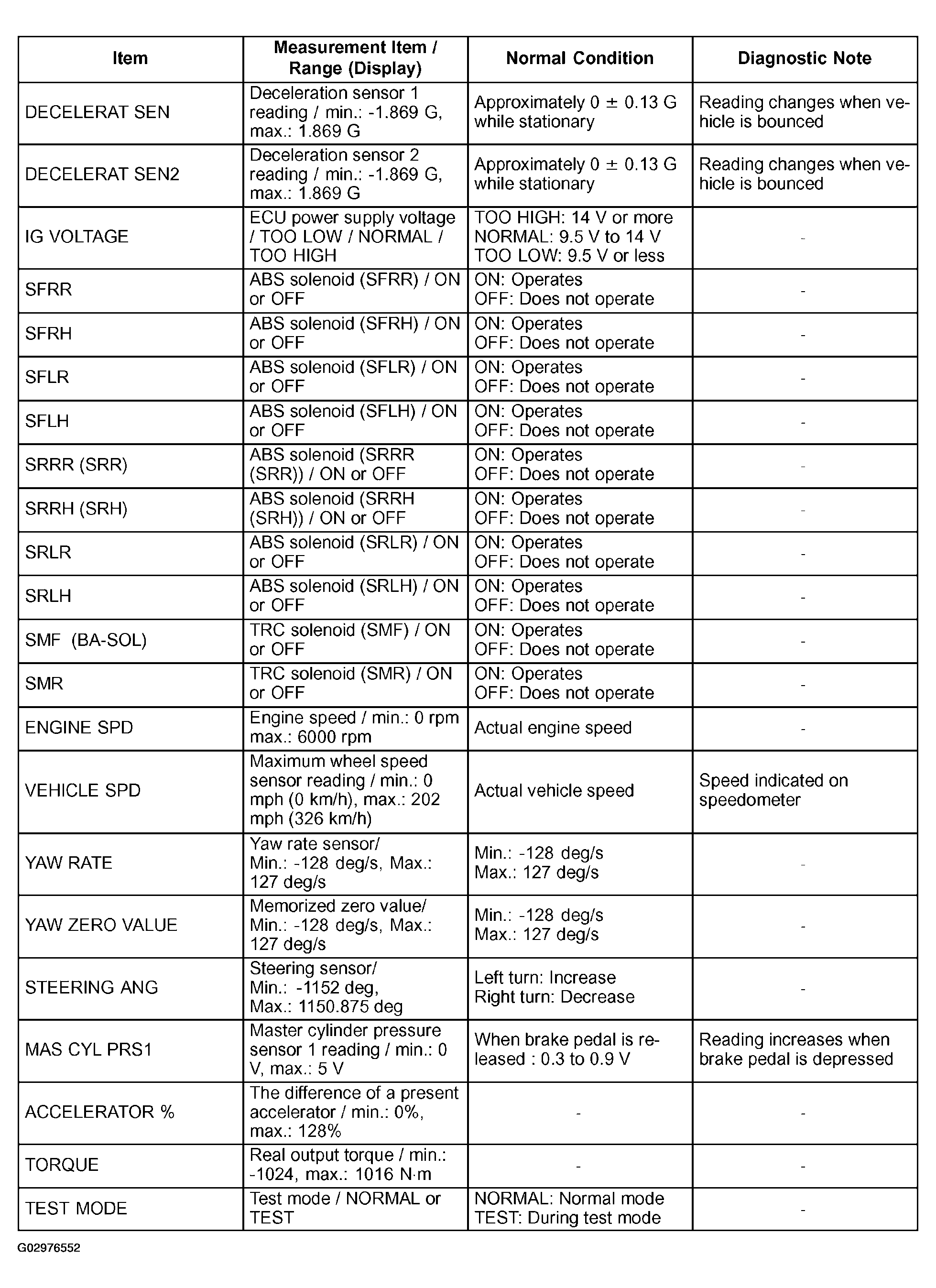

Fig 1: Data List Table (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

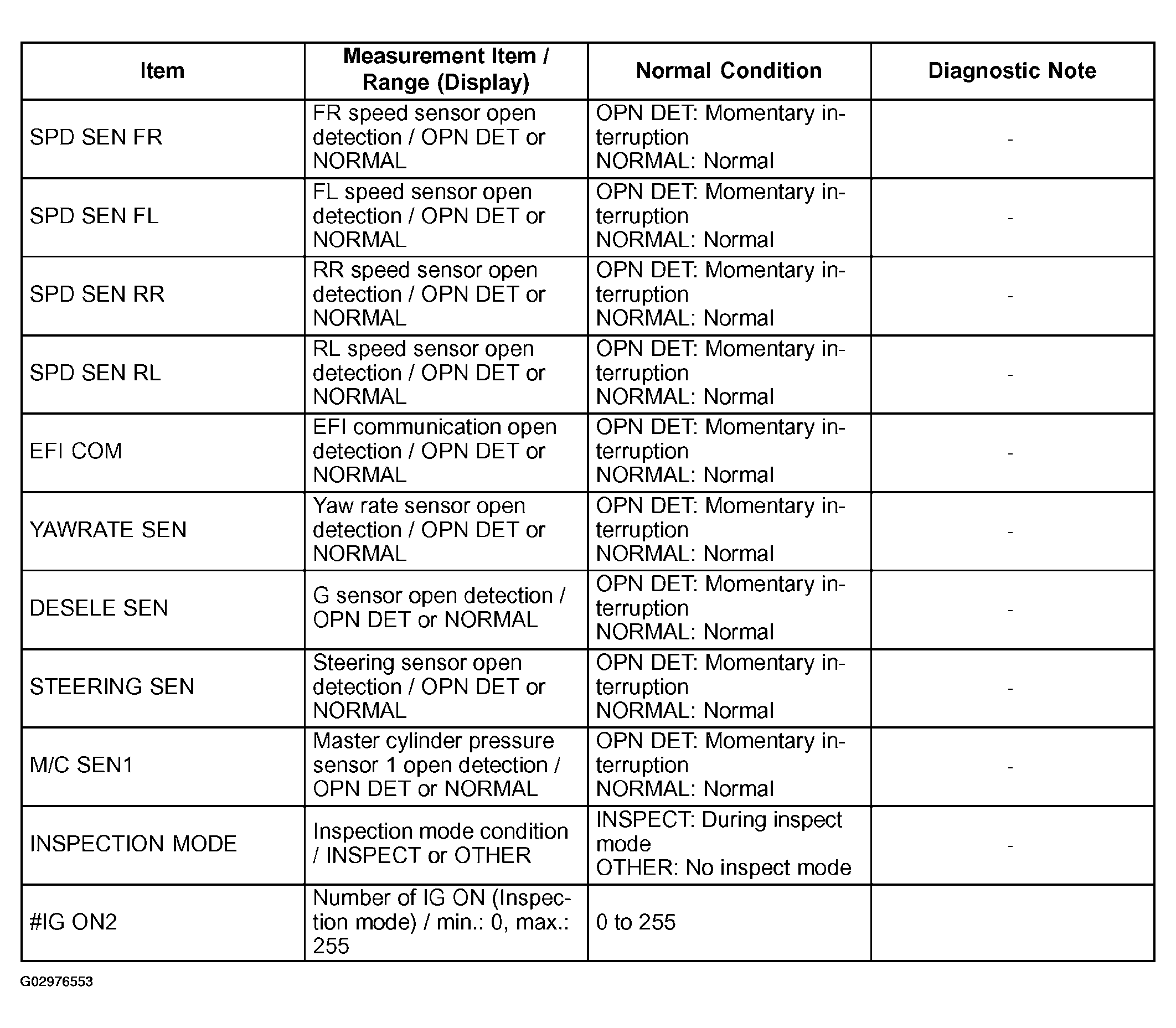

Fig 2: Data List Table (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

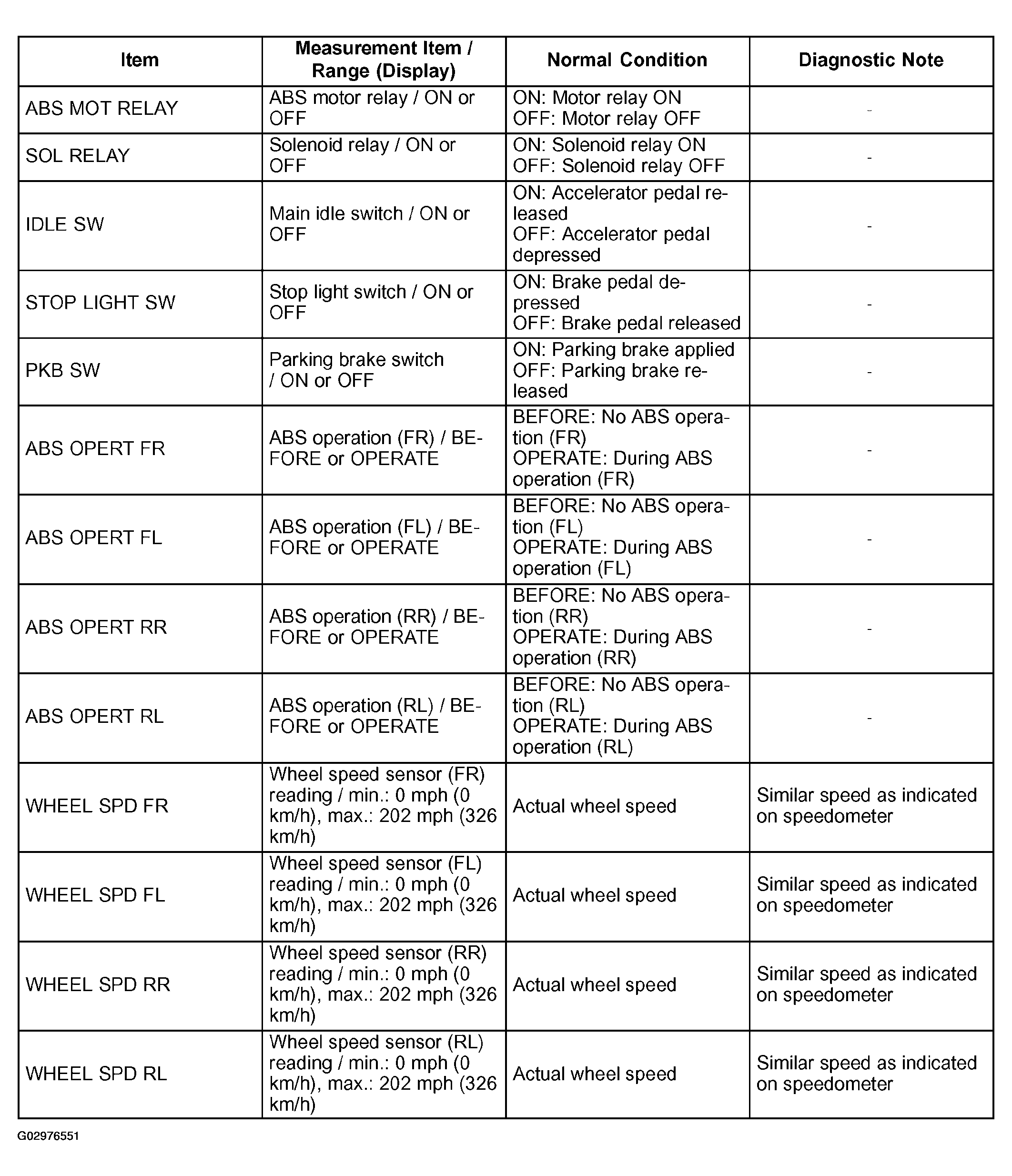

Fig 3: Data List Table (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the ACTIVE TEST using the hand held tester allows the relay, actuator, etc. to operate without removing any parts. Performing the ACTIVE TEST as the first step of troubleshooting is one of the methods to shorten labor time.

It is possible to display the DATA LIST during the ACTIVE TEST.

1. Connect the hand held tester to the DLC3.
2. Turn the ignition switch on (IG).
3. According to the display on the tester, perform the "ACTIVE TEST".

HINT:

The ignition switch must be turned on (IG) to proceed to the ACTIVE TEST using the hand held tester.
