DTC C1251/51: Pump Motor Circuit Malfunction: Wiring Diagram

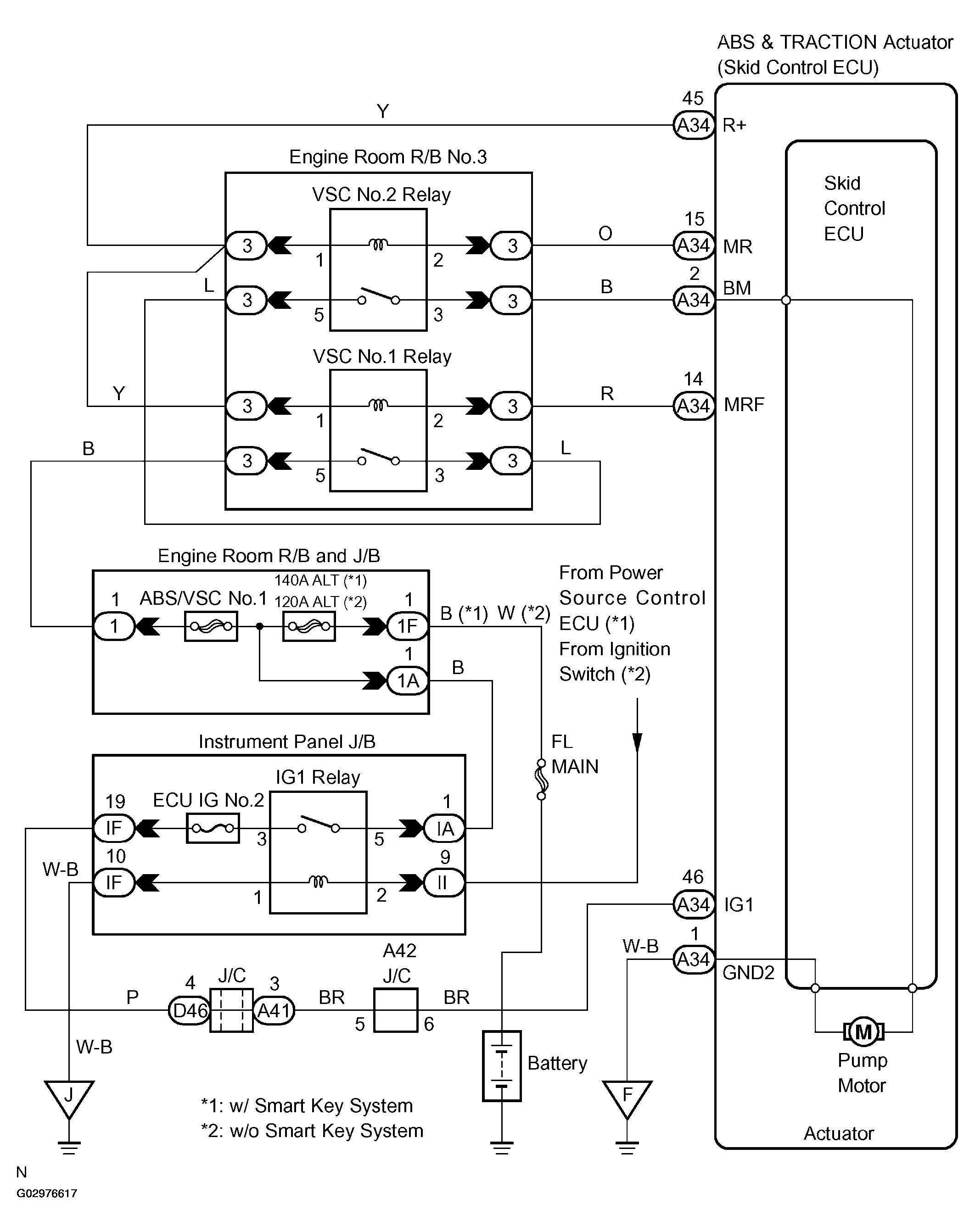

Fig 1: Pump Motor Circuit Diagram

G02976617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
