DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

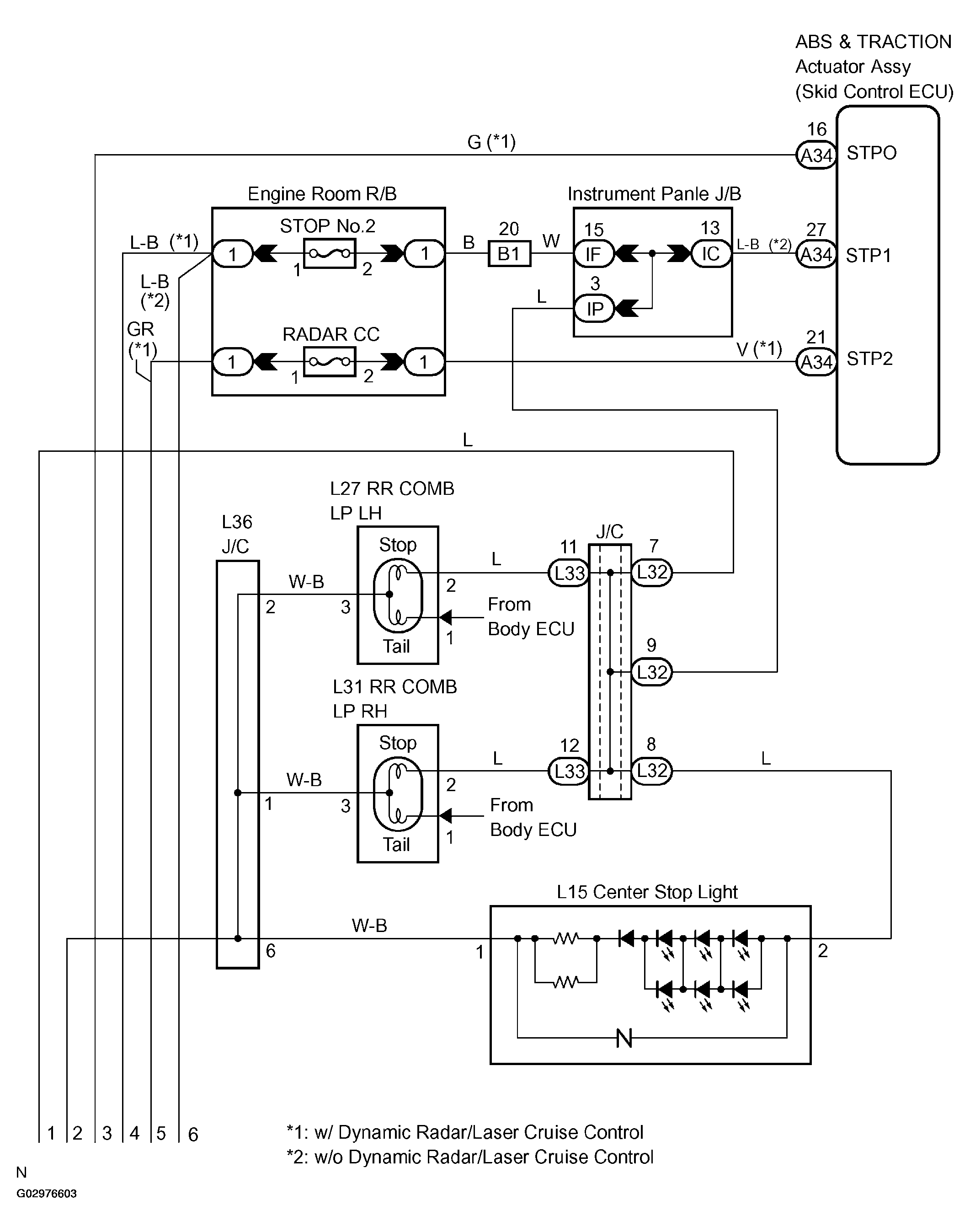

Fig 1: Stop Light Switch Circuit Diagram (1 Of 2)
G02976603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Stop Light Switch Circuit Diagram (2 Of 2)
G02976604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
