Circuit Description

Master cylinder pressure sensor is connected to the skid control ECU in the ABS & TRACTION actuator assy. DTC C1281/81 is output only in the test mode (SIGNAL CHECK).

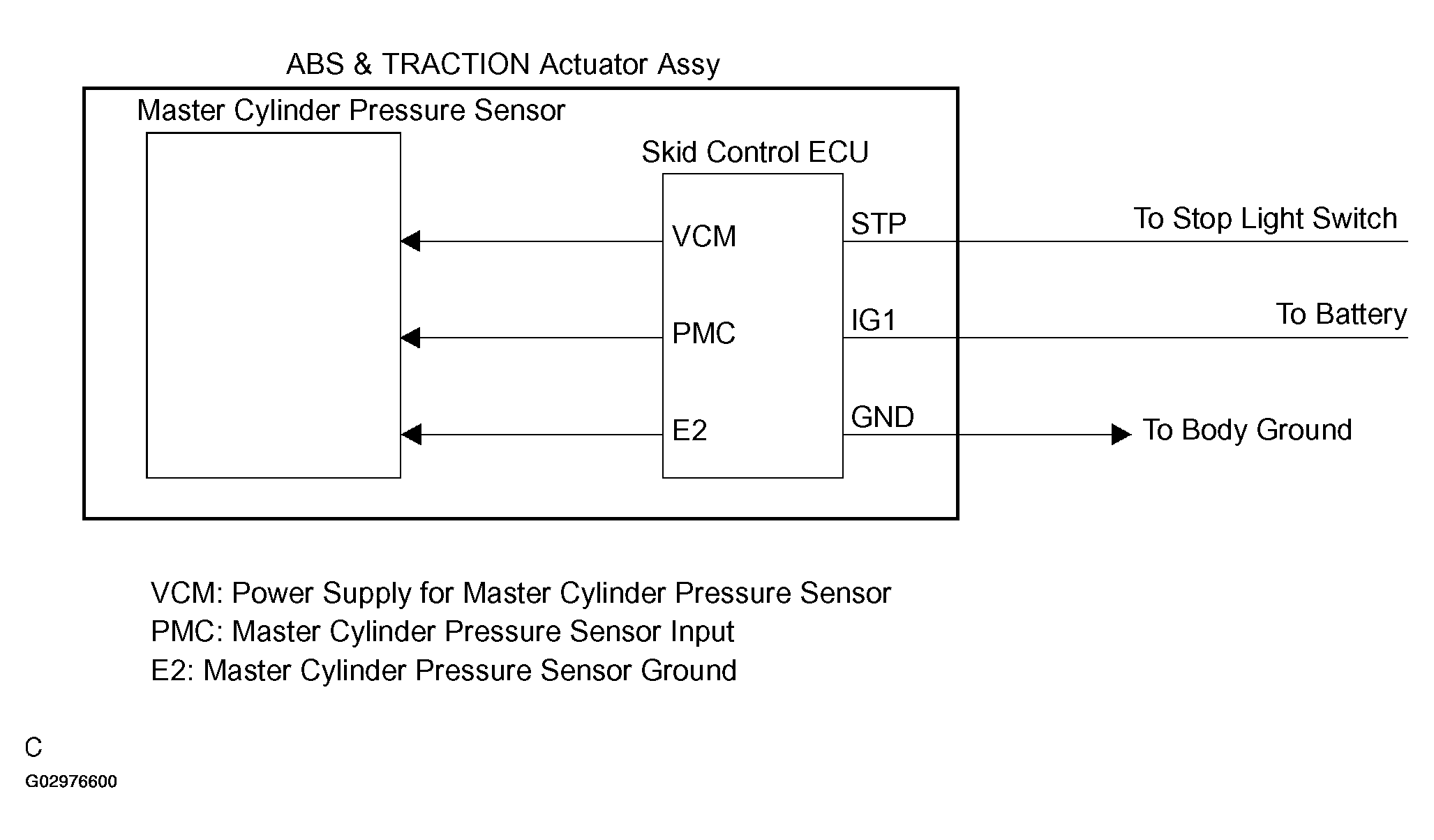

Fig 1: Master Cylinder Pressure Sensor Circuit Diagram
G02976600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

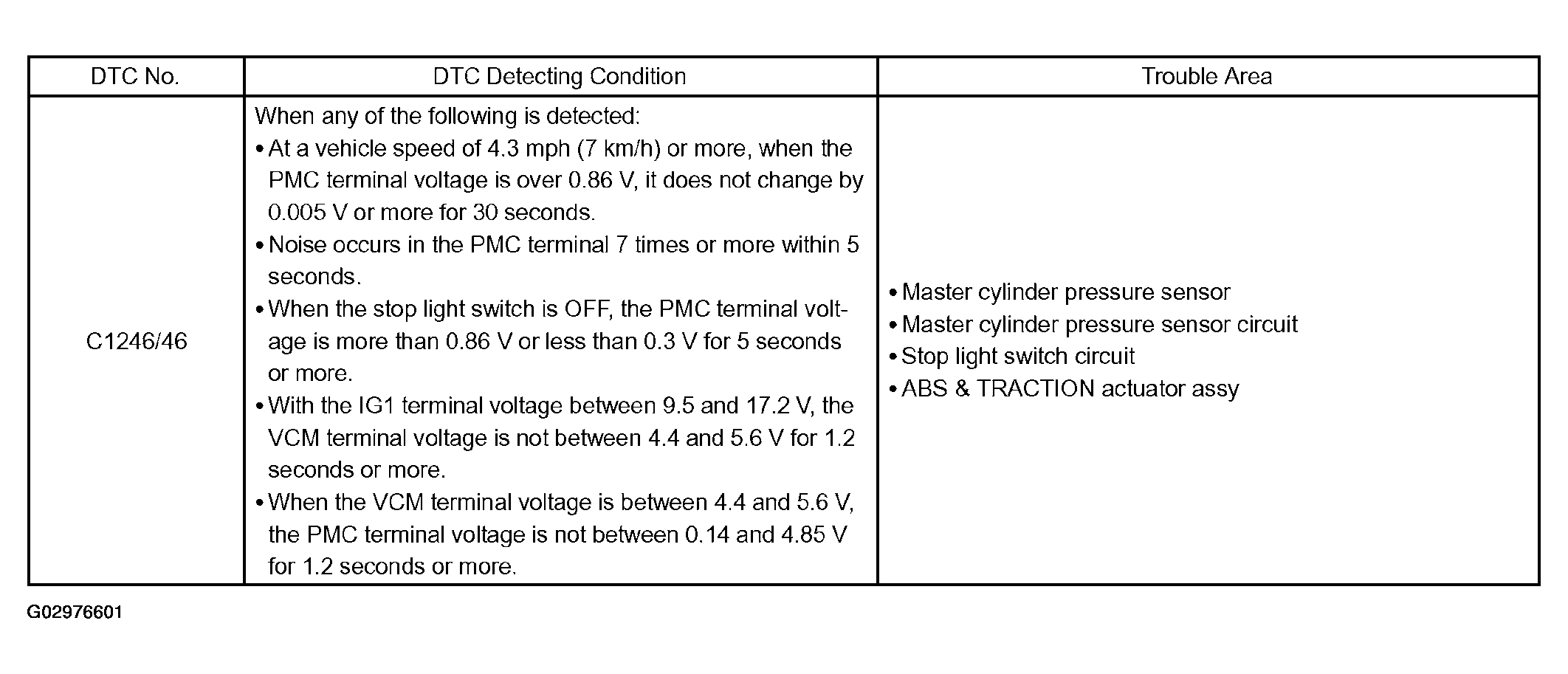

Fig 2: DTC Detecting Condition Table
G02976601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
