DTC C1231/31: Steering Angle Sensor Circuit: Wiring Diagram

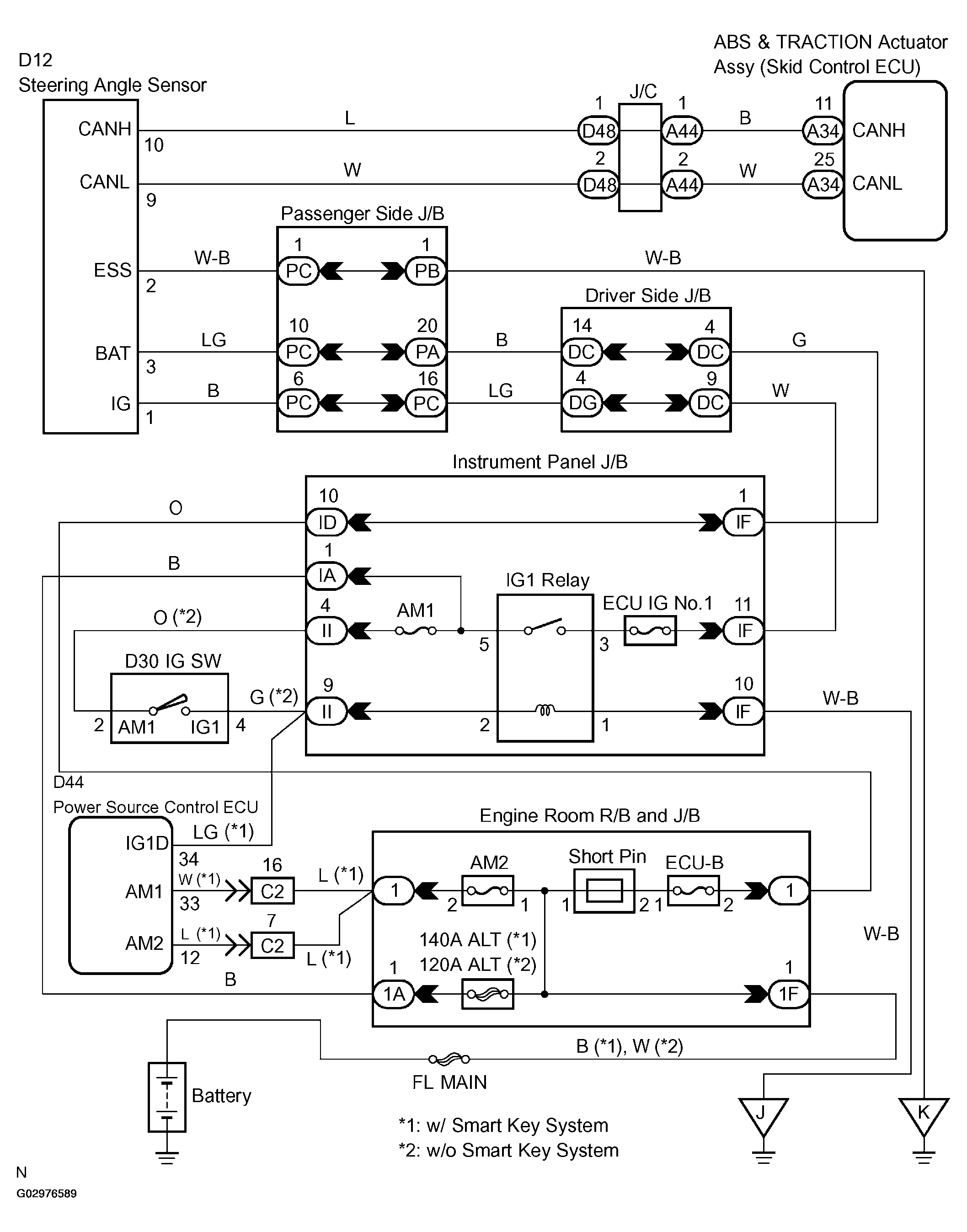

Fig 1: Steering Angle Sensor Circuit Diagram

G02976589

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
