DTC C0273/13, C0274/14, C1361/91: Open/Short Circuit In Abs Motor Relay Circuit & Short Circuit In Abs Motor Fail Safe Relay Circuit: Wiring Diagram

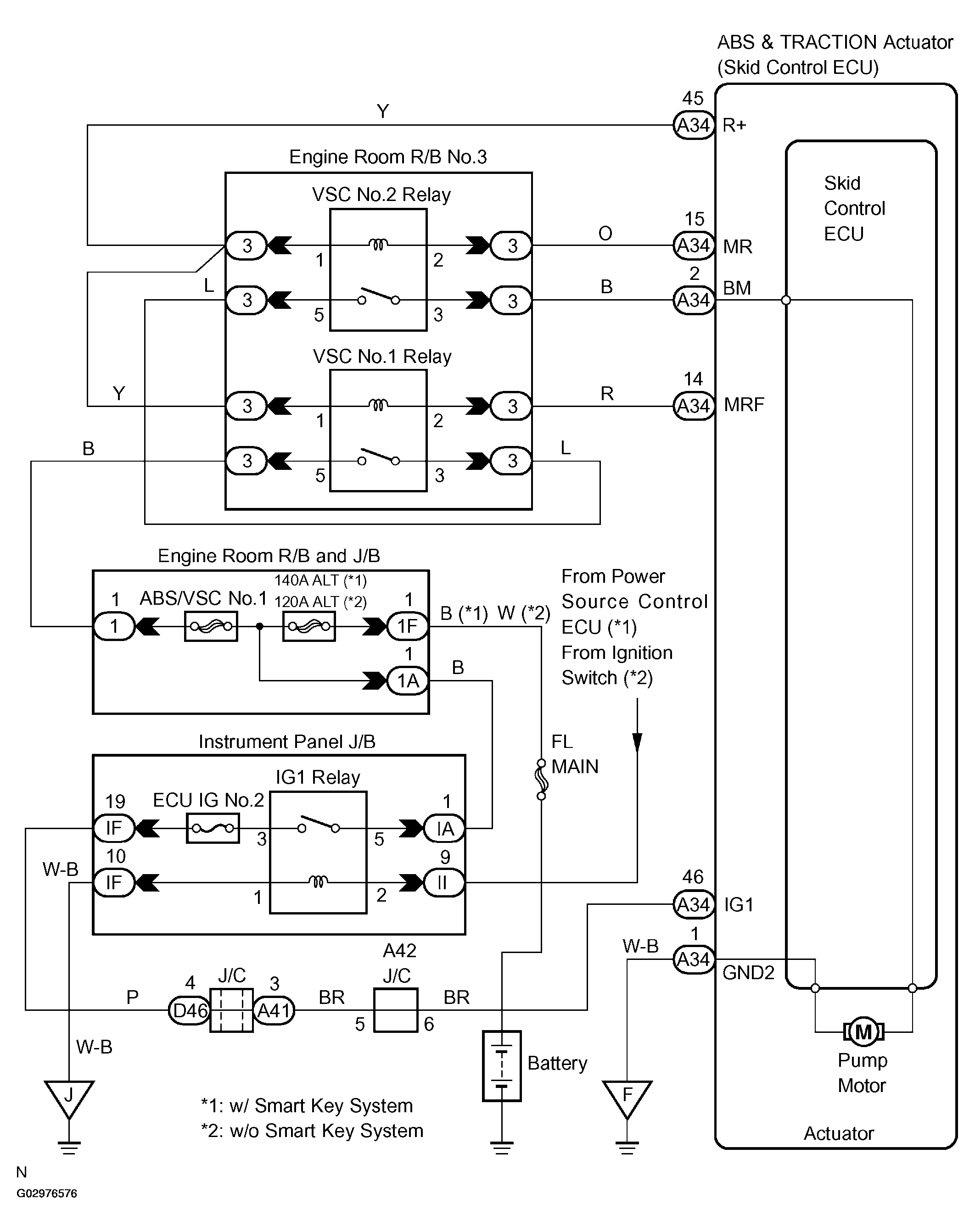

Fig 1: ABS Motor Relay Circuit Diagram
G02976576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
