DTC C0226/21, C0236/22, C0246/23, C0256/24, C1225/25: SFR/SFL/SRR/SRL/SA1 Solenoid Circuit: Wiring Diagram

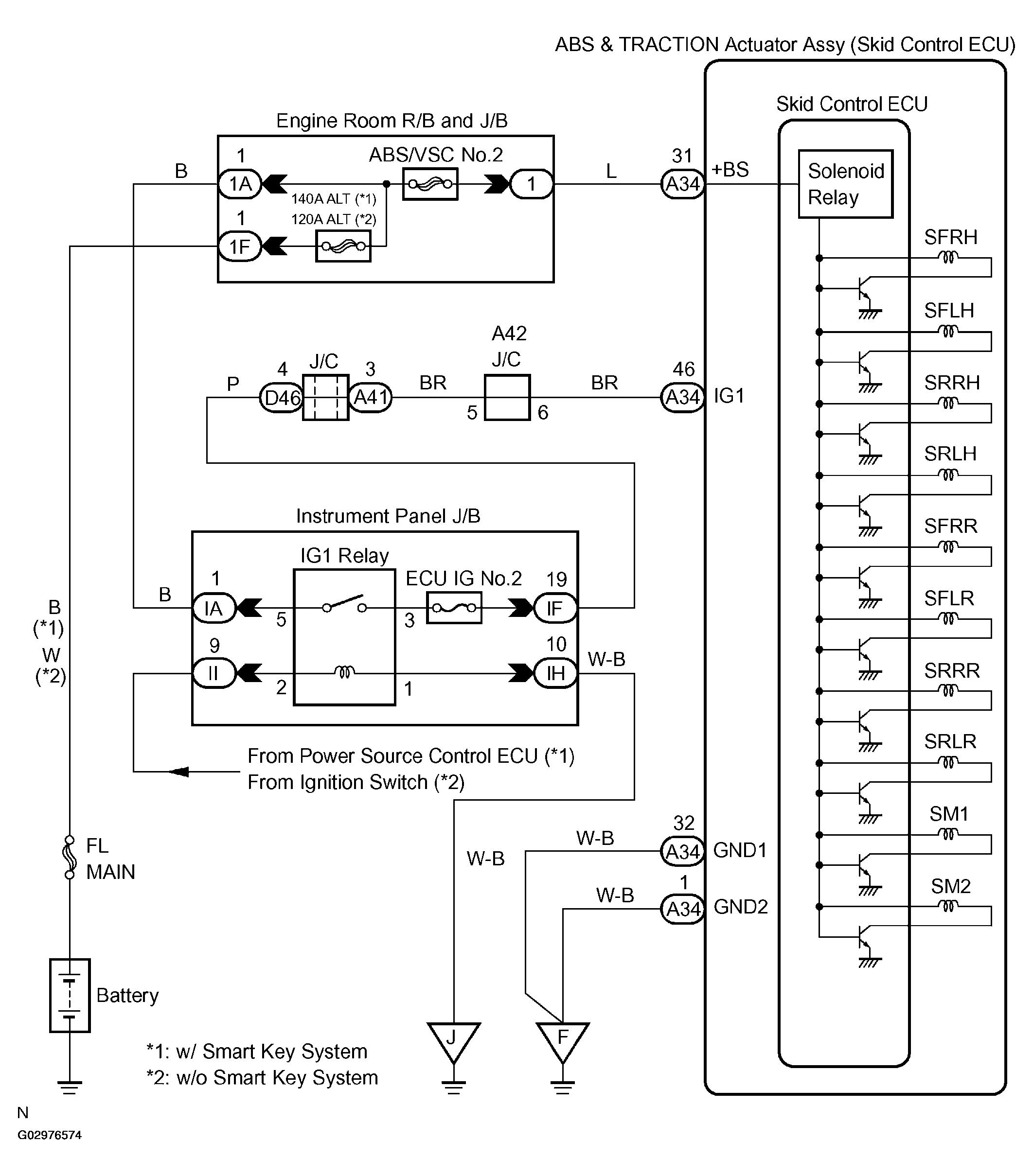

Fig 1: Solenoid Circuit Diagram

G02976574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
