Circuit Description

These solenoids turn on when signals are received from the skid control ECU and control the pressure acting on the wheel cylinders to control the braking force.

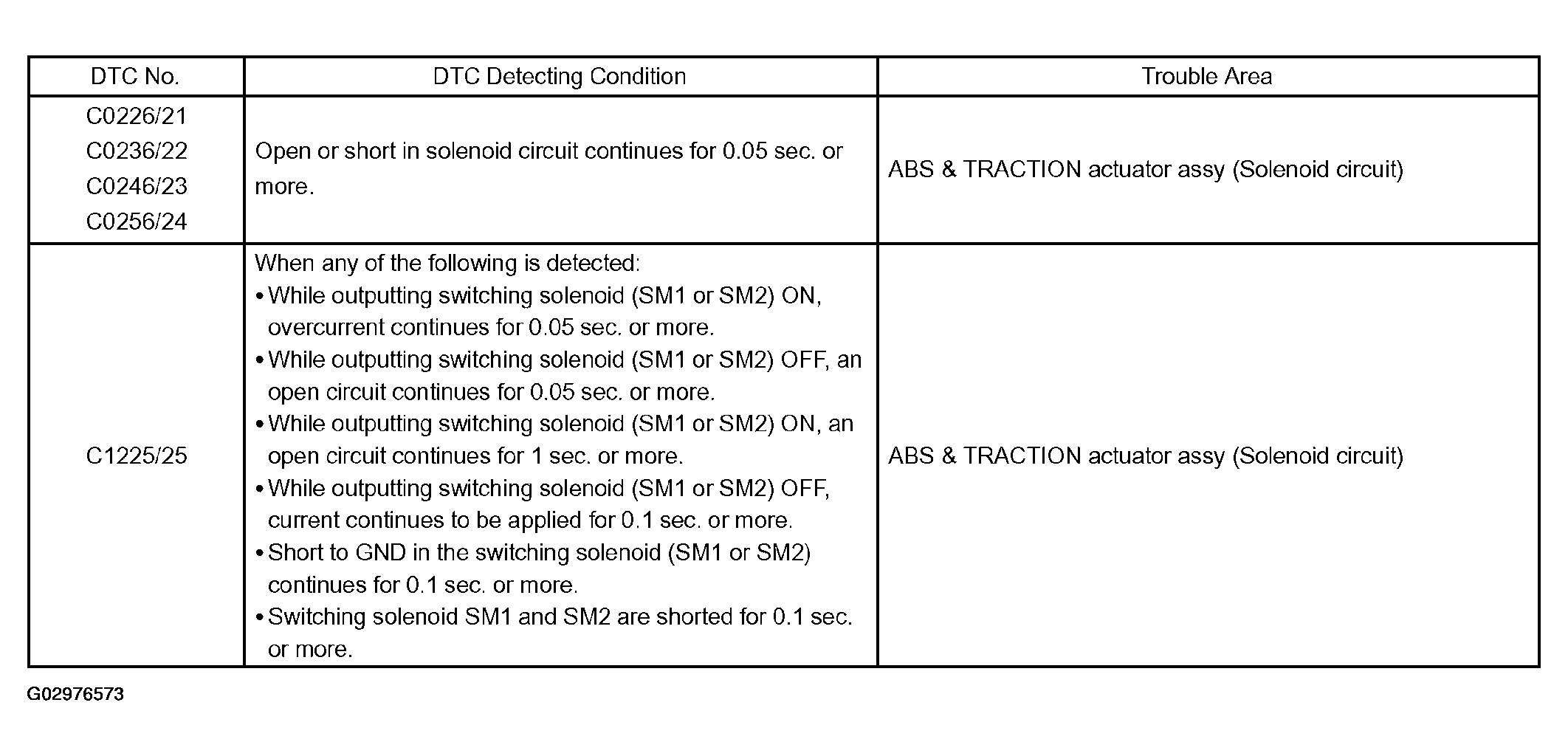

Fig 1: DTC Detecting Condition Table
G02976573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
